MACNAUGHT Retracta Oxy-LPG Reel 5mm x 15m

SKU OG215K-04
Afterpay Zip PayPal LeaseGO
$822.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

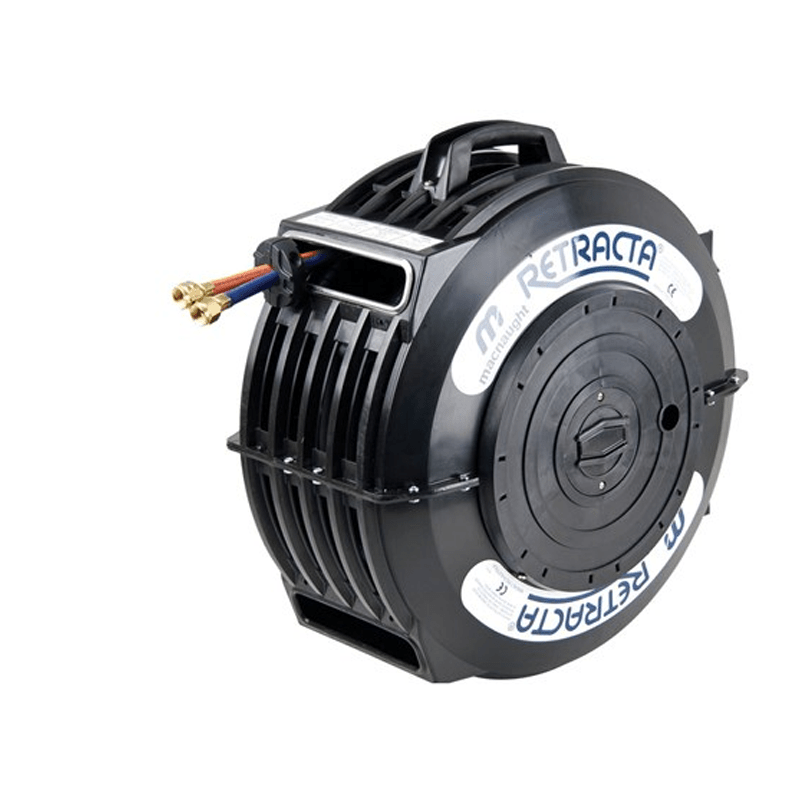

The  RETRACTA OG215K-04 Oxy / LPG Gas Welding Hose Reel is a premium quality, strong, reliable reel, constructed using UV  polypropylene, heavy duty rewind spring, quality swivel assembly, 5mm x 15m Oxy / LPG hose assembly and is supplied complete with mounting bracket and carry handle.

Fitted with a positive spring latch mechanism the hose can be latched every half . The reel is supplied complete with a steel mounting bracket which allows the reel to pivot 270 degrees and a locking plate to be fixed into a set position if required.

The corrosion and weather resistant construction  Retracta reels the ideal choice for both indoor and outdoor use. The spring rewind mechanism is factory lubricated and sealed for trouble free operation and can be easily re-tensioned externally without removing the reel casing.



Features

Features

  • 10 Year limited warranty
  • Impact resistant - Maximum strength for a long service life
  • Vertical rib design - For increased strength
  • Precision machined swivels - Leak free and smooth operation
  • Screwed together - Easily repaired and maintained
  • Sealed and lubricated main spring - Virtually maintenance free service life
  • Spring latch mechanism - Allows the reel to be fitted in any orientation
  • Stainless steel mouth guard - Protects hose and reel casing against wear
  • Easy side plate removal - Easy to maintain reel without removal from installation
  • Lightweight & portable - Weighs only 13kg
  • Spare parts are available
  • Specifications
  • Type: Oxygen / LPG Gas Welding
  • Hose ID: 5mm
  • Length: 15m
  • Maximum working pressure: 200psi (1,400kPa)
  • Hose material: reinforced rubber (AS1335)
  • Reel color: Black
  • Hose color: Orange/Blue
  • Reel Inlet: 5.8"" UNF (M)
  • Hose outlet: 5/8"" UNF (M)
  • Weight: 13kg
  • Dimensions: 250mm wide / 440mm high / 598mm long (including mounting bracket)
  • Manual
