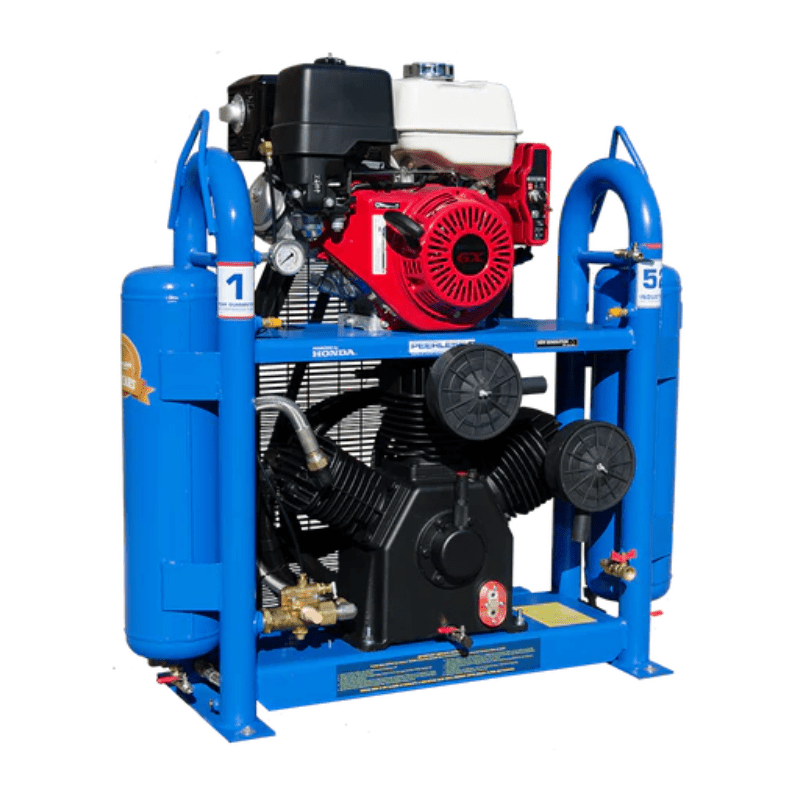

The Peerless PHP52 Petrol is the largest of the Peerless petrol compressors, delivering an enormous 1040 litres per minute of free air delivery. With a massive 150 litre tank, it is a strong option where a good three phase power supply is not available but large amounts of air are needed. It is powered by a tough Honda GX390 key start engine, built to handle the Australian climate and backed by an Australia wide three year Honda warranty.
The GX390 comes with electric start as standard, though there are no provisions for a battery or battery leads. Electric start engines do not come with a battery, leads or battery provisions. An under and over configuration is also available. Performance of the belt driven range is rated to AS4637.
Included accessories
Specifications
| PHP52P (00099) | Under Over (00099-UO) | |
|---|---|---|
| Code | 00099 | 00099-UO |
| Model | PHP52P | Under Over |
| Pump Displacement | 52 CFM | 52 CFM |
| Free Air Delivery | 1040 LPM | 1040 LPM |
| Max PSI | 175 | 175 |
| Engine | Honda GX390 Key Start | Honda GX390 Key Start |
| Warranty Pump | 1 Year | 1 Year |
| Warranty Engine | 3 Year | 3 Year |
| Tank Capacity | 150L | 32L |
| Pump Up Time to 100PSI | 0.55 - 1.00 Min | - |
| Dimensions / Weight | 1490Lx485Wx1050H / 218kg | 1080Lx450Wx1030H / 196kg |
| Cooling Method | Air cooled | Air cooled |
| Pump Type | W95II Triple head | W95II Triple head |
| Cylinders | 3 | 3 |
| Pump Head Tension | 35 FT LB 47.45NM | 35 FT LB 47.45NM |
| Pump Oil Capacity | 2.3L | 2.3L |
| Pump RPM | 1020 | 1020 |
| Outlet Thread | 1/2" BSP | 1/2" BSP |
| Engine Fuel Capacity | 6.1L | 6.1L |
| Engine Oil Capacity | 1.1L 10W/30 | 1.1L 10W/30 |
