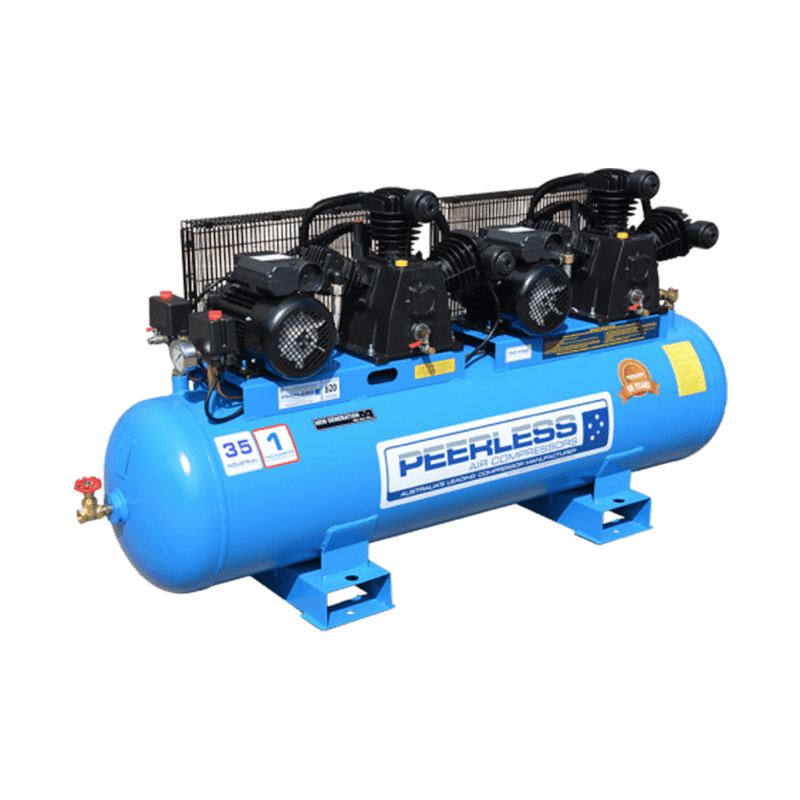

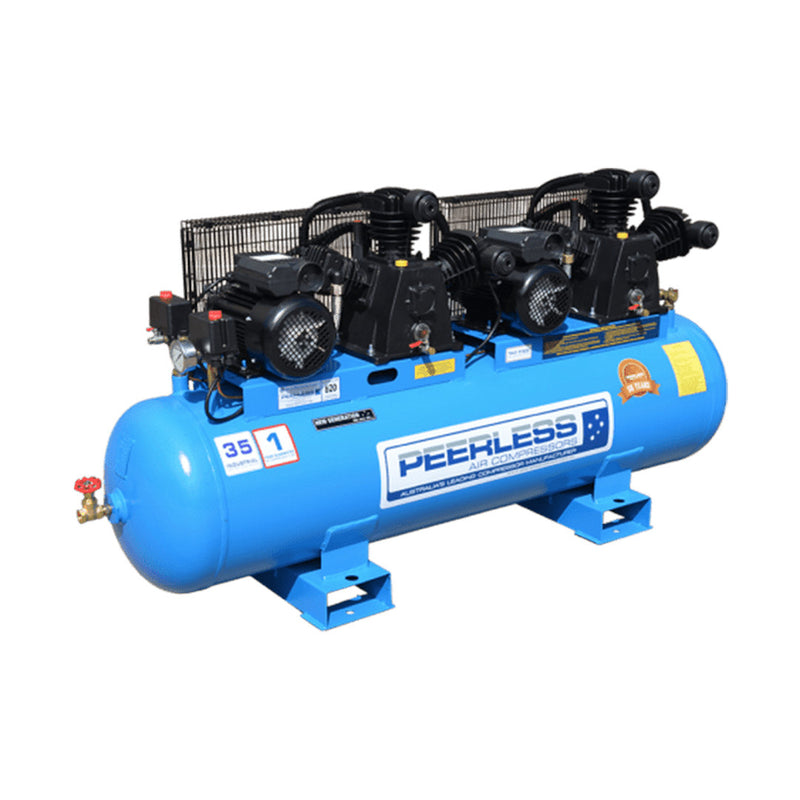

Peerless Air Compressor Single Phase Twin Pump High Pressure PT35 00093-1
SKU: 00093-1
$5,442
Peerless Air Compressor Single Phase Twin Pump High Pressure PT35 00093-1
 |
DATA SHEET |
Technical Data
The PT35HP is designed using two N75 pumps and 3.5 HP motors, coupled on a 150 litre air receiver. The pumps are designed to restart 5PSI apart and require two 15amp power lines (draws 2 x 13 amps) back to your fuse box to operate this machine.
It is very important to ensure that this machine is wired in correctly as failure to do so will cause motor failure. Producing a massive 650 litres of free air per minute at 150PSI to a maximum of 175PSI giving you an excellent single phase machine.
Specifications
| FREE AIR DELIVERY (F.A.D) | 600 LPM @ 150PSI |
|---|---|
| CYLINDERS | 3 |
| MAX PSI | 175 |
| MOTOR | Electric 3.5 HP (x2) |
| PUMP | 2065T (x2) |
| PUMP RPM | 963 |
| POWER SUPPLY | 15 AMP (x2) *Must be separate sockets |
| AMPS DRAW | 26 |
| TANK SIZE | 190 L |
| DIMENSIONS (L X W X H) | 1660mm x 400mm x 900mm |
| WEIGHT | 185kg |
| PORTABLE / STATIONARY | Stationary |
