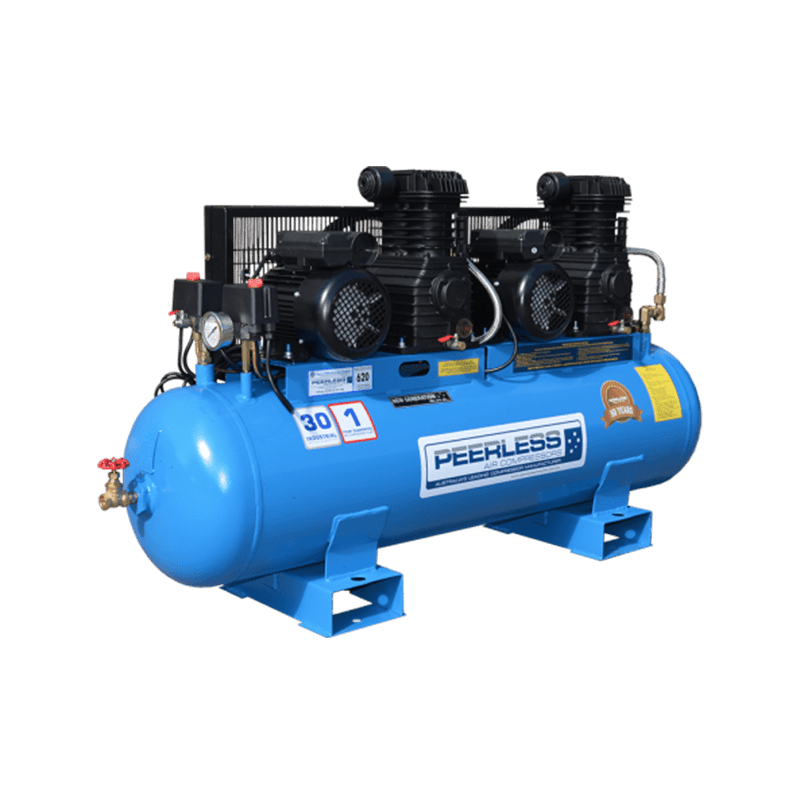

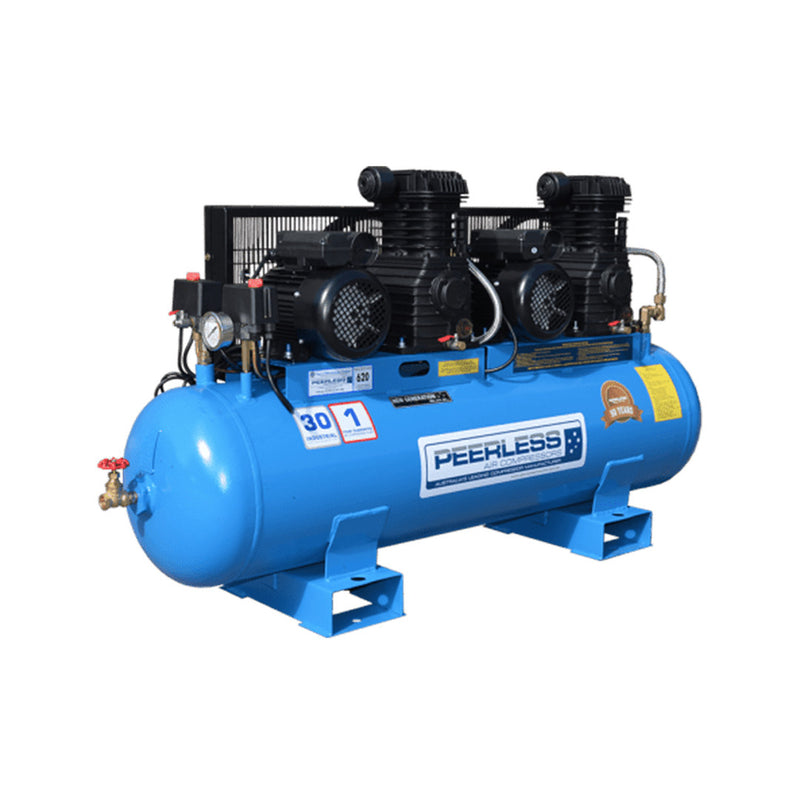

Peerless Air Compressor Single Phase Twin Pump PT35 00093

SKU: 00093

$5,082

Peerless Air Compressor Single Phase Twin Pump PT35 00093

Technical Data

The PT35 is designed using two N75 pumps and 3.5 HP motors, coupled on a 150 litre air receiver. The pumps are designed to restart 5PSI apart and requires two 15amp power lines (draws 2 x 13 amps) back to your fuse box to operate this machine.

It is very important to ensure that this machine is wired in correctly as failure to do so will cause motor failure. Giving you a massive 550 litres of free air per minute makes for an excellent single phase compressor.

Specifications

FREE AIR DELIVERY (F.A.D) 650 LPM @ 100PSI
CYLINDERS 2
MAX PSI 145
MOTOR Electric 3.5 HP (x2)
PUMP N75 (x2)
PUMP RPM 963
POWER SUPPLY 15 AMP (x2) *Must be separate sockets
AMPS DRAW 26
TANK SIZE 150 L
DIMENSIONS (L X W X H) 1500mm x 400mm x 900mm
WEIGHT 165kg
PORTABLE / STATIONARY Stationary
