Peerless Air Compressor Three High Pressure PHP60 00121
SKU: 00121
$12,128
Peerless Air Compressor Three High Pressure PHP60 00121
 |
DATA SHEET |
Technical Data

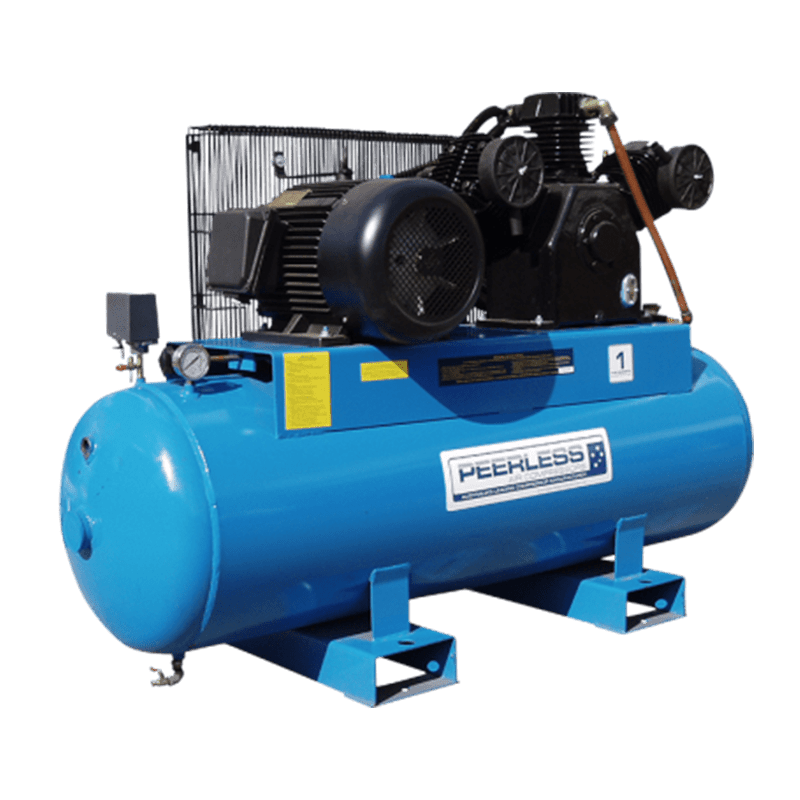

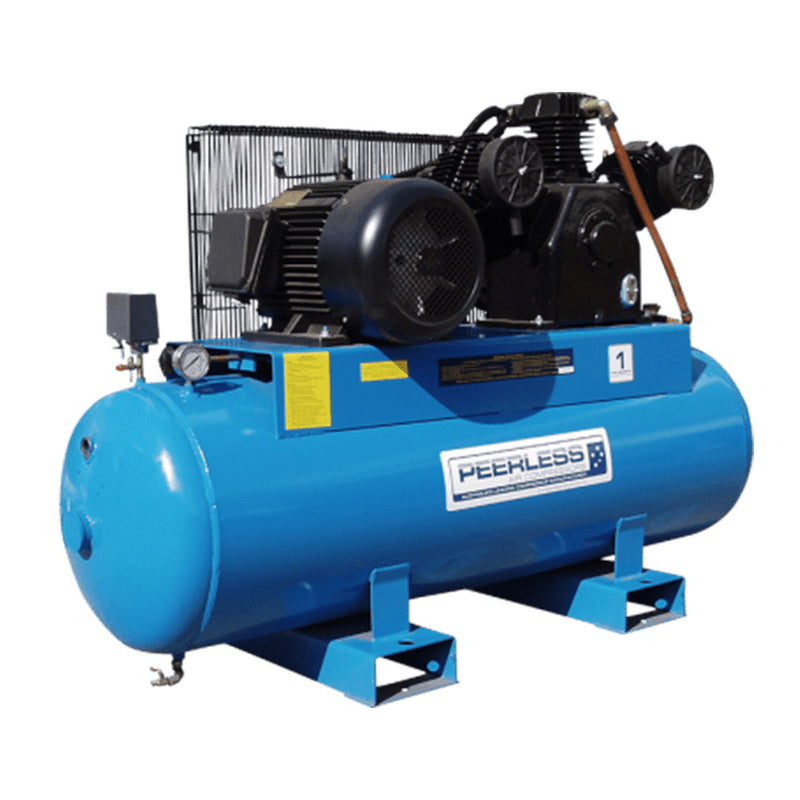

The PHP60 is a 15HP three cylinder two stage compressor. It comes on a 295 litre air receiver and is designed and manufactured for full industrial workshop applications.
As with all 3 phase machines, it is very important that the machine is purchased to do the correct job. All industrial machines must be serviced regularly and run in their correct cycles.
All piston type compressors should not cycle over 80%. For further information please contact Peerless Products if you are unsure of which industrial machine to select. Comes with delta overload switch.
| FREE AIR DELIVERY (F.A.D) | 1335 LPM @ 150PSI |
|---|---|
| CYLINDERS | 3 |
| MAX PSI | 175 |
| MOTOR | Electric 15 HP |
| PUMP | C115W |
| PUMP RPM | 936 |
| POWER SUPPLY | 415v |
| AMPS DRAW | 14 |
| TANK SIZE | 295 L |
| DIMENSIONS (L X W X H) | 1800mm x 650mm x 1030mm |
| WEIGHT | 315kg |
| PORTABLE / STATIONARY | Stationary |
