PEERLESS PHP30 Industrial Belt Drive Compressors

SKU: 00070

PEERLESS PHP30 Industrial Belt Drive Compressors

$6,885.00 AUD
$6,885.00 AUD
Inclusive of GST. Shipping calculated at checkout.
stock
In Warehouse. Ready to ship or collect in 3 to 7 days. Delivery times vary as per courier.
Configuration

Other payment options

Peerless PHP30 Industrial Belt Drive Compressors

Overview

Maximum air performance: 620L/min, slow revving cast iron pump. Truckie's mate with the high pressure pump.

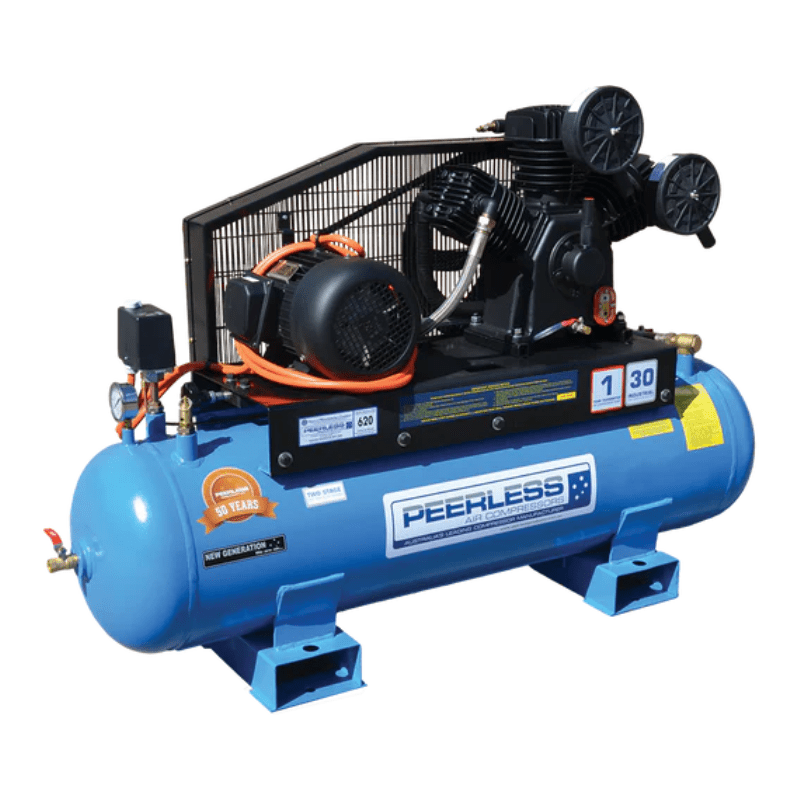

The PHP30 industrial three phase model is a three cylinder slow revving two stage air compressor. It has a 5.5HP three phase electric motor, comes complete with a 150 litre air receiver and is the ideal workshop compressor. 3-4 person workshop this would be best suited for. Solid belt guard and braided exhaust hose, huge oil sight glass fitted with a ball valve for ease of draining your compressor oil when servicing. Condor pressure switch fitted along with a beautiful oil filled stainless steel pressure gauge.

Details

The pump is like the V90 but with a high pressure cylinder, which doesn't have an air intake filter, making it high pressure. Two 90mm pistons feeding the air flow through to the 80mm piston. Adjusting the pressure (PSI) means it will be able to do so without losing the volume of air being supplied.

Set in the factory at 120-140PSI cut out making it an ease for truck tyre inflation or if you just need that extra burst of high pressure air.

Helpful tip:

When mounting, be sure to get "high density" rubber matting and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

  • GO Data Peerless Air Compressor Three Phase Silent Series PSS25
  • Peerless Installation Checklist
  • Peerless Warranty Information and Registration Form
  • Peerless Maintenance Checklist
  • Peerless PHP30 Three Phase Product Brochure

Specifications

Peerless 00070

Code 00070
Model PHP30
Pump Displacement (CFM)
 30 CFM
Free Air Delivery (LPM) 620 LPM
Max PSI 175
Motor HP 5.5
Warranty Pump 1 Year
Warranty Motor
 1 Year
Tank Capacity (L) 150L
Pump up time to 100PSI 1.35 - 1.40 Min
Dimensions (mm) / Weight (kg) 1500Lx440Wx1020H
200kg
Cooling Method Air cooled
Pump Type W90II 2 Stage
Cylinders 3
Pump Head Tension 30 FT LB
40.67NM
Oil Capacity 1.5L
Pump RPM 1075
Outlet Thread 1/4" BSP & 1/2" BSP
Electricity 415V
Amps draw 7.4


Peerless 00109

Code 00109
Model PHP30V
Pump Displacement (CFM)
 30 CFM
Free Air Delivery (LPM) 620 LPM
Max PSI 175
Motor HP 5.5
Warranty Pump 1 Year
Warranty Motor
 1 Year
Tank Capacity (L) 190L
Pump up time to 100PSI 2.20 - 2.25 Min
Dimensions (mm) / Weight (kg) 920Lx560Wx1680H
200kg
Cooling Method Air cooled
Pump Type W90II 2 Stage
Cylinders 3
Pump Head Tension 30 FT LB
40.67NM
Oil Capacity 1.5L
Pump RPM 1075
Outlet Thread 1/4" BSP & 1/2" BSP
Electricity 415V
Amps draw 7.4

Shipping & Returns

Add text about your shipping policy

Shipping & Returns

Add text about your shipping policy

Warranty

Add text about your product warranty

Warranty

Add text about your product warranty

Secure Payment

Add text about your payment

Secure Payment

Add text about your payment

View full details
Peerless PHP30 Industrial Belt Drive Compressors

PEERLESS PHP30 Industrial Belt Drive Compressors

From $1,087.00 AUD
From $1,087.00 AUD

Details

The pump is like the V90 but with a high pressure cylinder, which doesn't have an air intake filter, making it high pressure. Two 90mm pistons feeding the air flow through to the 80mm piston. Adjusting the pressure (PSI) means it will be able to do so without losing the volume of air being supplied.

Set in the factory at 120-140PSI cut out making it an ease for truck tyre inflation or if you just need that extra burst of high pressure air.

Helpful tip:

When mounting, be sure to get "high density" rubber matting and then fix to a secure footing as per your states regulations. Remember, when installing allow enough space for the air compressor to breath, air flow is forced over the pump to keep it cool. If mounted hard up against a wall or boxed, it will have trouble getting the correct air circulation.

All pressure vessels can be supplied with a "Manufacturing Data Report" along with "Registered Design" for Work Safe registration.
Peerless Products pressure vessels are all made to AS1210.

Performance of all our belt driven air compressors are to AS4637.

For over 60 years Peerless Products has been delivering and exceeding the needs of industry. Ask us about your requirements.

Peerless PHP30 Industrial Belt Drive Compressors

Overview

Maximum air performance: 620L/min, slow revving cast iron pump. Truckie's mate with the high pressure pump.

The PHP30 industrial three phase model is a three cylinder slow revving two stage air compressor. It has a 5.5HP three phase electric motor, comes complete with a 150 litre air receiver and is the ideal workshop compressor. 3-4 person workshop this would be best suited for. Solid belt guard and braided exhaust hose, huge oil sight glass fitted with a ball valve for ease of draining your compressor oil when servicing. Condor pressure switch fitted along with a beautiful oil filled stainless steel pressure gauge.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Shipping & Returns

Our network of warehouses Australia-wide enables us to
deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

All returns must be pre-approved to ensure replacement and / or refund.

Warranty

Read our complete warranty terms & conditions here.

Warranty

Read our complete warranty terms & conditions here.

Secure Payment

All our online payment methods are secured.

Secure Payment

All our online payment methods are secured.

  • GO Data Peerless Air Compressor Three Phase Silent Series PSS25
  • Peerless Installation Checklist
  • Peerless Warranty Information and Registration Form
  • Peerless Maintenance Checklist
  • Peerless PHP30 Three Phase Product Brochure

Specifications

Peerless 00070

Code 00070
Model PHP30
Pump Displacement (CFM)
 30 CFM
Free Air Delivery (LPM) 620 LPM
Max PSI 175
Motor HP 5.5
Warranty Pump 1 Year
Warranty Motor
 1 Year
Tank Capacity (L) 150L
Pump up time to 100PSI 1.35 - 1.40 Min
Dimensions (mm) / Weight (kg) 1500Lx440Wx1020H
200kg
Cooling Method Air cooled
Pump Type W90II 2 Stage
Cylinders 3
Pump Head Tension 30 FT LB
40.67NM
Oil Capacity 1.5L
Pump RPM 1075
Outlet Thread 1/4" BSP & 1/2" BSP
Electricity 415V
Amps draw 7.4


Peerless 00109

Code 00109
Model PHP30V
Pump Displacement (CFM)
 30 CFM
Free Air Delivery (LPM) 620 LPM
Max PSI 175
Motor HP 5.5
Warranty Pump 1 Year
Warranty Motor
 1 Year
Tank Capacity (L) 190L
Pump up time to 100PSI 2.20 - 2.25 Min
Dimensions (mm) / Weight (kg) 920Lx560Wx1680H
200kg
Cooling Method Air cooled
Pump Type W90II 2 Stage
Cylinders 3
Pump Head Tension 30 FT LB
40.67NM
Oil Capacity 1.5L
Pump RPM 1075
Outlet Thread 1/4" BSP & 1/2" BSP
Electricity 415V
Amps draw 7.4
