Peerless PHP52 Industrial Belt Drive Compressor 00120

Overview

Impressive performance, Australia's favourite PHP52. 990l/pm of free air delivery. Used the highest quality componentry and every compressor is manufactured locally with an immaculate attention to detail.

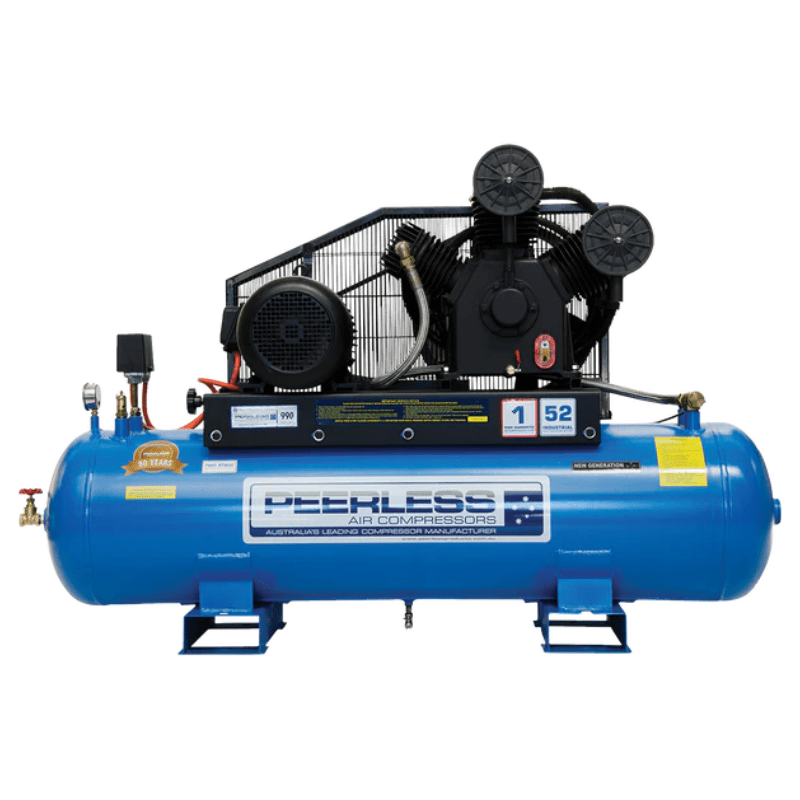

Australia's most popular three phase compressor on the market. The PHP52 is a three cylinder, two stage, slow revving cast iron compressor.

This 10HP three phase, three cylinder, two stage compressor is again similar to the PHP40. Upgraded to a bigger motor and pump. Running off this copper wound motor is an impressive W95II Peerless oil injected pump. That's two 95mm pistons driving air into a 90mm high pressure cylinder. Pushing 990 litres of air per minute at the end of your air line at an incredible 100PSI. This is while the pump is only working at 949RPM! Well under 1050RPM compared to others. A very low speed making this one of our quietest three phase compressors compared to others.

Details

We recommend this compressor to workshops with around 4 - 5 operators and is ideal for mechanics and tyre fitters. If you require clean and dry air we have a complete range of refrigeration air dryers and inline filtration to keep your equipment in the best working order.

If you require more air we recommend upgrading to our rotary screw compressor range. The air performance along with energy efficiency with variable speed technology can save your business time and money. It's all about the increased productivity, no down time and energy cost reductions. If you're unsure about what's best to suit your business, we're here to help. A Peerless specialist will tell you if it would be beneficial or not to look at the screw compressor option.

  • GO Data Sheet Peerless Air Compressor Three Phase PHP52
  • Peerless Installation Checklist
  • Peerless Warranty Information and Registration Form
  • Peerless Maintenance Checklist
  • Peerless PHP52 Three Phase Product Brochure

Specifications

Peerless 00120

Code 00120
Model PHP52
Pump Displacement (CFM)
 52 CFM
Free Air Delivery (LPM) 990 LPM
Max PSI 175
Motor HP 10
Warranty Pump 1 Year
Warranty Motor
 1 Year
Tank Capacity (L) 200L
Pump up time to 100PSI 1.15 - 1.20 Min
Dimensions (mm) / Weight (kg) 1700Lx520Wx1100H
265kg
Cooling Method Air cooled
Pump Type W95II 2 Stage
Cylinders 3
Pump Head Tension 35 FT LB
47.45NM
Oil Capacity 2.3L
Pump RPM 949
Outlet Thread 1/4" BSP & 1/2" BSP
Electricity 415V
Amps draw 13.3
