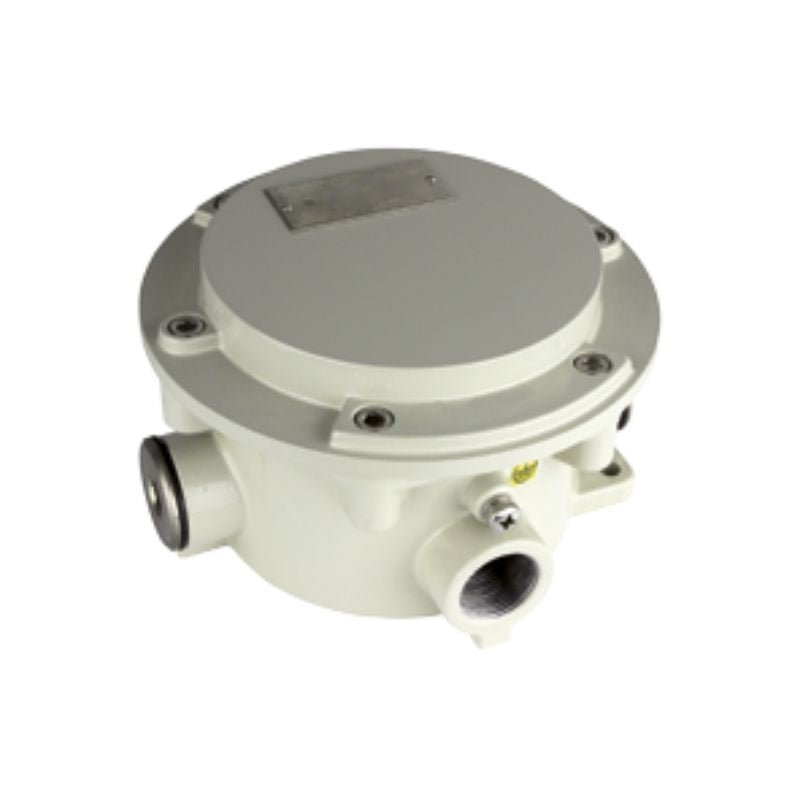

PEPPERL+FUCHS F Series TB Terminal Boxes Ex d in Aluminum
SKU PF-264111
$350.00
Tax included. Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
For hazardous areas of either gas group IIC or IIB three series of fl ameproof terminal boxes allow safe installation of distribution networks, especially in very taxing environmental conditions.
- Ex d and Ex tD certified
- Ex d certified
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Gas group IIC
- Gas group IIB
- Aluminum enclosure
- Customizable configuration of terminals, cable entries and cable gland types as per specification
- Degree of protection IP66
Specifications
| Electrical specifications | ||
|---|---|---|
| Operating voltage | see PDF data sheet | |
| Operating current | see PDF data sheet | |
| Mechanical specifications | ||
| Thread type | metric ISO pitch 1.5 mm or NPT ANSI ASME B1.20.1 | |
| Enclosure range | see PDF data sheet | |
| Enclosure cover | detachable | |
| Cover fixing | stainless steel socket cap head screws | |
| Screws | see PDF data sheet | |
| Yield stress | min. 450 N/mm2 | |
| Cover seal | chloroprene / nitrile O-ring | |
| Flamepath grease | Fluid film grade AR | |
| Degree of protection | IP66 | |
| Cable entry | see PDF data sheet | |
| Terminal assembly | ||
| Number of rails | see PDF data sheet | |
| Terminal type | Standard see PDF data sheet, other terminal types optional | |
| Material | ||
| Enclosure | aluminum alloy | |
| Finish | epoxy coated RAL 7032 | |
| Mass | see PDF data sheet valid for empty enclosure, will increase according to integrated components |
|
| Dimensions | see PDF data sheet | |
| Mounting | see PDF data sheet | |
| Grounding | M6 external grounding points | |
