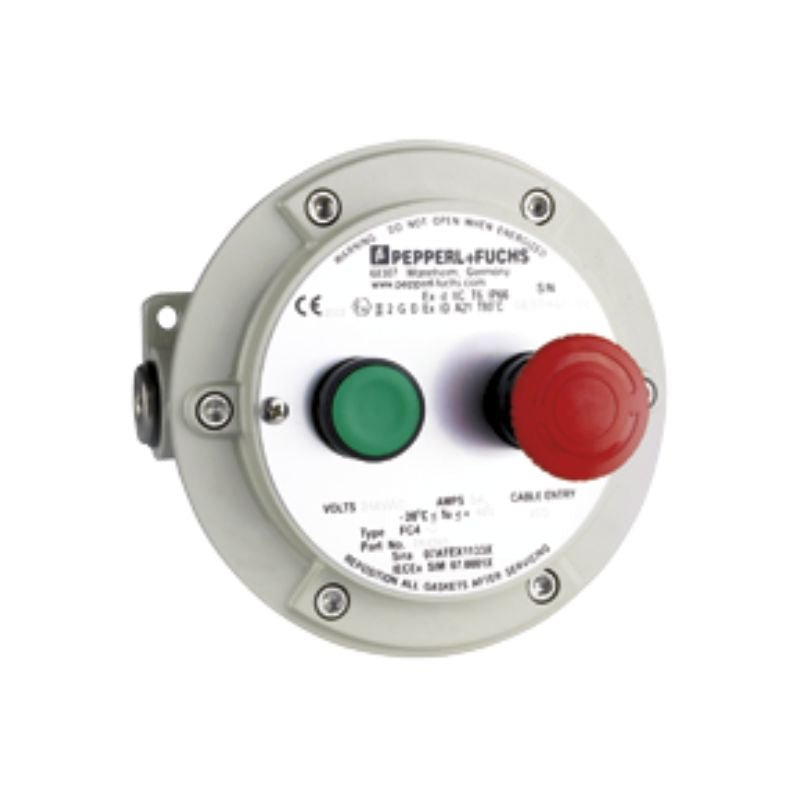

PEPPERL+FUCHS FC Series LCU Control Units Ex d IIC in Aluminum
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
The FC series control units are certifi ed Ex d IIC and Ex tD A21. They can be fl exibly confi gured with one through four operating elements covering various contact confi gurations. FC4 variants have standard cable entry positions while FC5 allows entry customization to meet any specifi c requirements. All enclosure types are manufactured from marine-grade aluminum.
- Ex d and Ex tD certified
- Installation in Zone 1, Zone 2, Zone 21 and Zone 22
- Gas group IIC
- Aluminum enclosure
- Customizable configuration of operators, cable entry quantities and cable gland types as per specification
- Degree of protection IP66
Specifications
| Electrical specifications | ||
|---|---|---|
| Operating voltage | see PDF data sheet | |
| Operating current | see PDF data sheet | |
| Terminal capacity | see PDF data sheet | |
| Terminal torque | 0.8 Nm | |
| Function | see PDF data sheet | |
| Usage category | see PDF data sheet | |
| Mechanical specifications | ||
| Thread type | metric ISO pitch 1.5 mm | |
| Enclosure range | FC4 | |
| Enclosure cover | detachable | |
| Cover fixing | stainless steel socket cap head screws | |
| Screws | M6 | |
| Number | 6 | |
| Tightening torque | 3 Nm | |
| Material of screws | stainless steel | |
| Yield stress | min. 450 N/mm2 | |
| Cover seal | chloroprene | |
| Flamepath grease | Fluid film grade AR | |
| Degree of protection | IP66 | |
| Cable entry | metric threaded | |
| Cable entry face A | ||
| M20 quantity | 1 | |
| Cable entry face B | ||
| M20 quantity | 1 | |
| Cable entry face C | ||
| M20 quantity | 1 | |
| M20 type | Stopping Plug | |
| Cable entry face D | ||
| M20 quantity | 1 | |
| M20 type | Stopping Plug | |
| Material | ||
| Enclosure | aluminum alloy | |
| Finish | epoxy coated RAL 7032 | |
| Mass | approx. 1.7 kg | |
| Dimensions | see PDF data sheet | |
| Mounting | see PDF data sheet | |
| Grounding | M6 external grounding points | |
