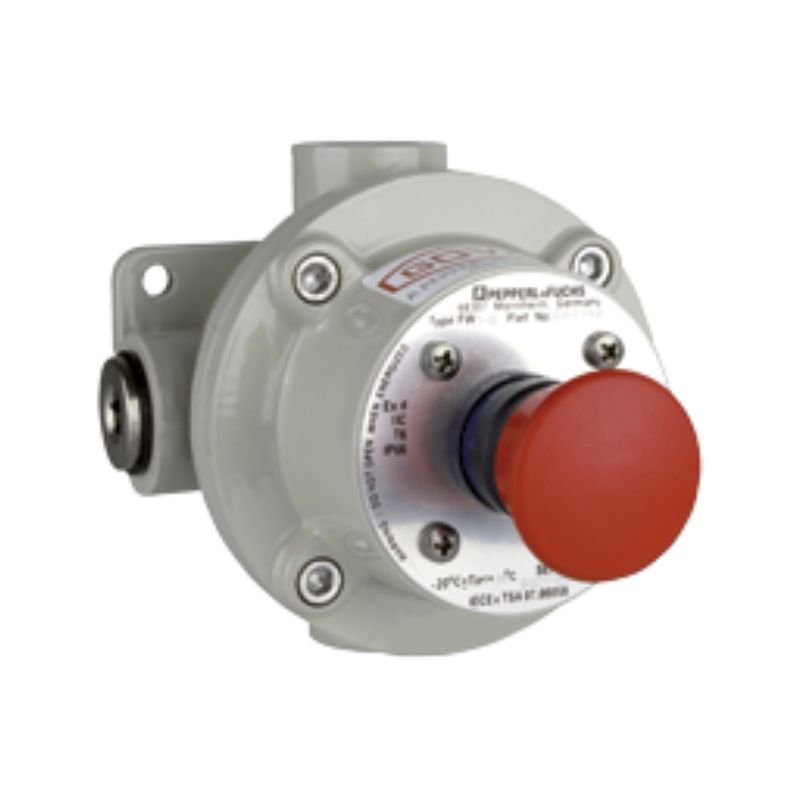

PEPPERL+FUCHS FW Series LCU Control Units Ex d IIB in Aluminum
SKU: PF-264145PEPPERL+FUCHS FW Series LCU Control Units Ex d IIB in Aluminum
Other payment options
PEPPERL+FUCHS FW Series LCU Control Units Ex d IIB in Aluminum
Pepperl+Fuchs FW Series LCU Control Units Ex d IIB in Aluminum
Overview
The FW series control units are certifi ed Ex d IIB and can be fl exibly confi gured with one operating element covering various contact confi gurations. The devices have standard cable entry positions at all sides. All enclosure types are manufactured from marine-grade aluminum.
- Ex d certified
- Installation in Zone 1, Zone 2
- Gas group IIB
- Aluminum enclosure
- Customizable configuration of operators and cable gland types as per specification
- Degree of protection IP66
Specifications
| Electrical specifications | ||
|---|---|---|
| Operating voltage | 240 V AC max. | |
| Operating current | see PDF data sheet | |
| Terminal capacity | see PDF data sheet | |
| Terminal torque | see PDF data sheet | |
| Function | see PDF data sheet | |
| Usage category | see PDF data sheet | |
| Mechanical specifications | ||
| Thread type | metric ISO pitch 1.5 mm | |
| Enclosure range | FW | |
| Enclosure cover | detachable | |
| Cover fixing | stainless steel socket cap head screws | |
| Screws | M6 | |
| Number | 4 | |
| Tightening torque | 3 Nm | |
| Material of screws | stainless steel | |
| Yield stress | min. 450 N/mm2 | |
| Cover seal | nitrile O-ring | |
| Flamepath grease | Fluid film grade AR | |
| Degree of protection | IP66 | |
| Cable entry | metric threaded | |
| Cable entry face A | ||
| M20 quantity | 1 | |
| Cable entry face B | ||
| M20 quantity | 1 | |
| Cable entry face C | ||
| M20 quantity | 1 | |
| M20 type | Stopping Plug | |
| Cable entry face D | ||
| M20 quantity | 1 | |
| M20 type | Stopping Plug | |
| Material | ||
| Enclosure | aluminum alloy | |
| Finish | epoxy coated RAL 7032 | |
| Mass | approx. 1.2 kg | |
| Dimensions | see PDF data sheet | |
| Mounting | see PDF data sheet | |
| Grounding | M6 external grounding points | |
| Ambient conditions | ||
| Ambient temperature | -20 ... 60 °C (-4 ... 140 °F) | |
| Data for application in connection with hazardous areas | ||
| EU-type examination certificate | SIRA 07 ATEX 1132X | |
| Marking |  II 2 GEx d IIB T* T6 @ Ta +60 °C |
|
| International approvals | ||
| IECEx approval | IECEx TSA 07.0005X | |
| Conformity | ||
| Degree of protection | EN60529 | |
| Usage category | IEC / EN 60947 | |
| CE marking | 0102 | |
| General information | ||
| Ordering information | This device will be delivered completely configured and assembled ready for use. For configuration details please contact Customer Service. | |
| Supplementary information | EC-Type Examination Certificate, Statement of Conformity, Declaration of Conformity, Attestation of Conformity and instructions have to be observed where applicable. For information see www.pepperl-fuchs.com. | |
