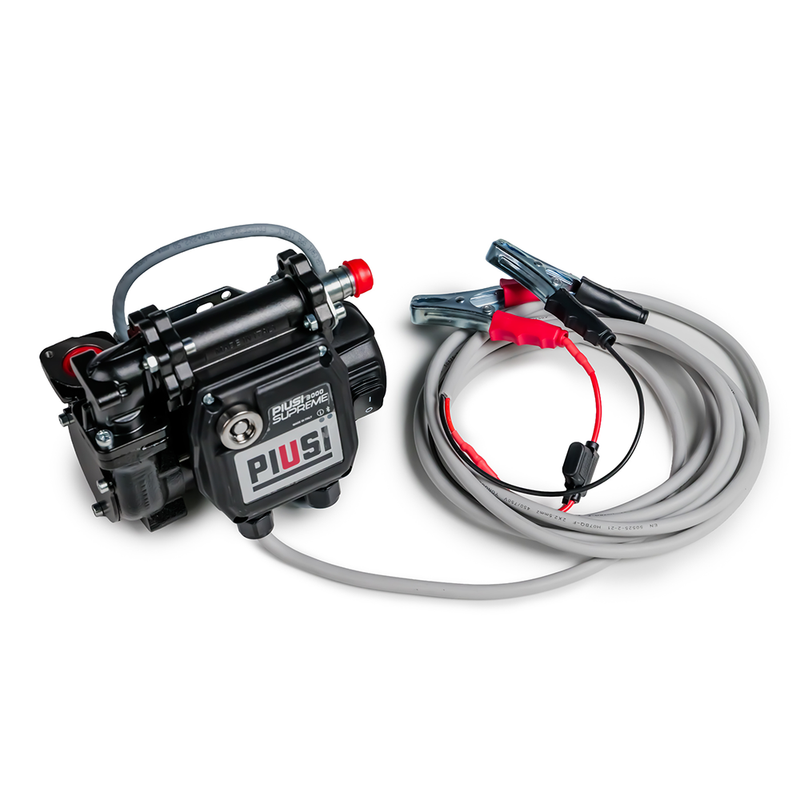

The PIUSI 3000 Supreme (Part No. F00250V00) is an advanced, smart 12V/24V DC mobile diesel transfer pump with integrated electronic fluids management system, designed for direct tank mounting via its vertical port configuration.
Powered by an integrated, high-efficiency motor delivering flow rates up to 50 L/min, its core function is to provide fast, precise, and secure mobile fuel dispensing in agricultural, construction, and fleet operations.
The PIUSI 3000 Supreme bridges the critical data blind spot between bulk tank management and remote field dispensing. While modern electronic fluid management systems (FMS) excel at tracking stock levels and dispenser transactions at static bulk storage tanks, that visibility traditionally disappears the moment fuel is pumped into a transportable poly diesel tank or fuel trailer. Once mobile, fuel dispensing becomes vulnerable to unrecorded usage, informal estimates, and shrinkage.
The Piusi 3000 Supreme solves this information gap by cost effectively extending digital accountability directly to the point of dispensing in the field:
-
Seamless Mobile Tracking: The turbine flow meter built into the pump records every dispensing operation, with volume, time and date, for mobile refuelling events.
-
Bluetooth Syncing: Using built-in Bluetooth connectivity, the pump transmits transaction logs directly to the operator's smartphone via the PIUSI App, eliminating paper logbooks and manual entry errors.
-
Controlled Access: Driver or operator authorisation can be enforced via the app before the pump activates, ensuring only authorised personnel can draw fuel from fuel trailers or ute-mounted tanks.
-
Dispensing Records: The PIUSI Supreme app lists and exports every dispensing operation, so fleet managers can reconcile bulk tank withdrawals against field consumption.
Features
Bluetooth App-Based Access Control:
-
Replaces physical keypads, keys, and kiosks with secure PIN authorisation via the Piusi Supreme smartphone app (iOS/Android).
Integrated Pulse Meter:
-
Features a built-in turbine flow meter that records dispensed volume without an external flow meter.
Smart Flow Control & Overheat Protection:
-
Automatically ramps down the motor's flow rate if the pump starts overheating to protect internal components and prolong service life.
App-Selectable Low-Flow Mode:
-
Allows operators to manually lower the dispensing rate via the app for safe, controlled top-offs of small tanks and handheld containers.
Multi-Voltage Auto-Sensing Motor:
-
Runs seamlessly on both 12V DC and 24V DC power sources without manual switching, drawing 15A at 12V or 8A at 24V at maximum flow.
Continuous-Duty Cycle:
-
Powered by a 200W motor rated for 100% continuous duty, avoiding thermal shut-down breaks during long fuel-dispensing runs.
Vertical Port Orientation:
-
Configured with vertical inlet/outlet ports designed specifically for compact in-line plumbing, tight service truck enclosures, or custom skid builds.
Dispensing Records:
-
The pump controller stores up to 500 dispensing operations, and the PIUSI Supreme app lists and exports them when the phone has an internet connection.
Reverse-Polarity Electrical Protection:
-
Guards internal electronics against wiring mistakes during installation or transfer between service vehicles.
Broad Renewable Fuel Compatibility:
-
Engineered with acetal resin vanes, a sintered-steel rotor, and NBR seals compatible with standard Diesel, Biodiesel blends up to B20, HVO, and XTL synthetic fuels.
Specifications
| Part Number (SKU) | F00250V00 |
| Model Name | PIUSI 3000 Supreme (Vertical Ports) |
| Maximum Flow Rate | Up to 50 L/min (approx. 13 GPM) |
| Key Feature | Pump with Integrated Electronic Fluids Management System |
| Operating Voltage | 12V / 24V DC |
| Motor Power | 200 Watt Heavy-Duty Electric Motor |
| Power Draw |
12V DC: 15 A at maximum flow (50 L/min), 17 A at rated conditions (46 L/min), 21 A in bypass 24V DC: 8 A at maximum flow, 9 A at rated conditions, 12 A in bypass |
| Duty Cycle | Continuous Duty |
| Inlet Connection | DN20 (3/4") BSP F (Vertical orientation) |
| Outlet Connection | DN20 (3/4") BSP F (Vertical orientation) |
| Pump Technology | Self-Priming Rotary Vane Pump |
| Metering Technology | Integrated turbine flow meter |
| Connectivity | Built-in Bluetooth (PIUSI App compatible) |
| Compatible Fluid | Diesel |
| Port Alignment | Vertical Ports |
