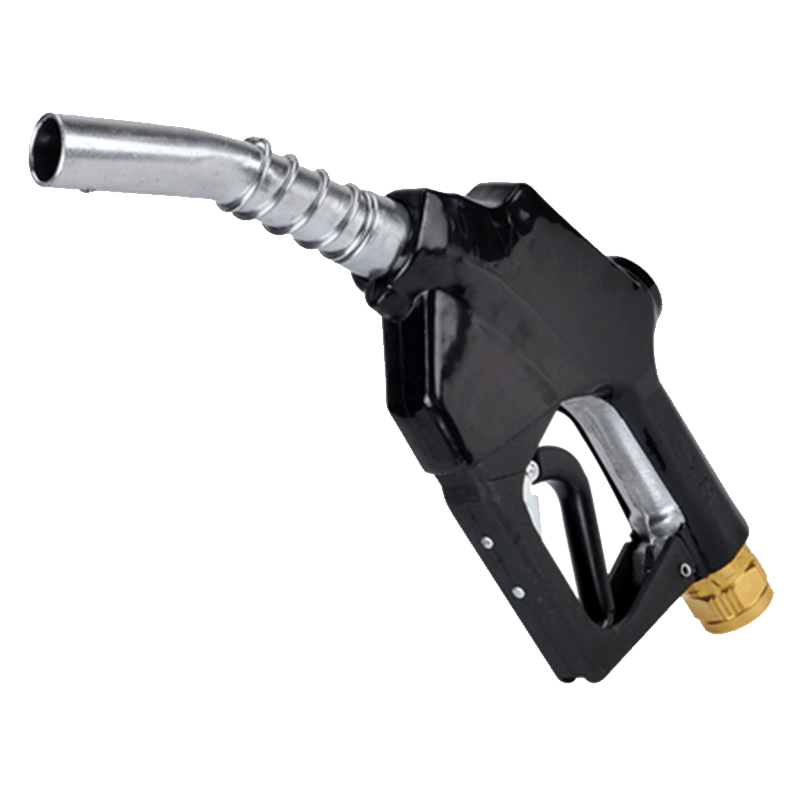

PIUSI Automatic Nozzle A120 with Swivel Diesel 120lpm
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Overview
The Piusi A120 Standard Automatic Diesel Nozzle is renowned in the commercial market for private, non-resale refuelling of vehicles.
As an automatic fuel pump nozzle it will shut off when the tank is full, preventing an overfill scenario and allowing the safe use of the integrated 3 position stay open latch. This refuelling nozzle is available in a number of different flow rates depending upon the size of the vehicle being filled.
For example, the A60 is popular for refuelling smaller vehicle and trucks, whereas an A120 may be preferred for filling large agricultural and plant machinery that would take longer to fill.
These Piusi automatic fuel nozzles are well known in the market as a reliable and comfortable to handle solution, without the added cost that comes with the forecourt style brands.
Features
- Automatic Shut-Off: Cuts flow the moment the tank fills, so fuel does not end up on the ground or over the operator.
- 120 L/min Flow: Sized to keep pace with a transfer pump rather than throttling it back.
- Swivel Inlet: The 1 IN BSP female swivel lets the hose turn freely instead of kinking or twisting the wrist.
- Sealed For Fuel: Rated for diesel and petrol on non-resale transfer systems.
Specifications
| MAXIMUM FLOW RATE | 120 L/MIN | 32 GPM |
|---|---|
| SHUT-OFF | Automatic, closes when the tank fills |
| INLET | 1 IN BSP FEMALE SWIVEL |
| SPOUT OUTSIDE DIAMETER | 29 MM | 1.14 IN |
| MAXIMUM WORKING PRESSURE | 3.5 BAR | 51 PSI |
| WEIGHT | 1.93 KG | 4.25 LB |
| SUITABLE FLUIDS | Diesel, petrol |
