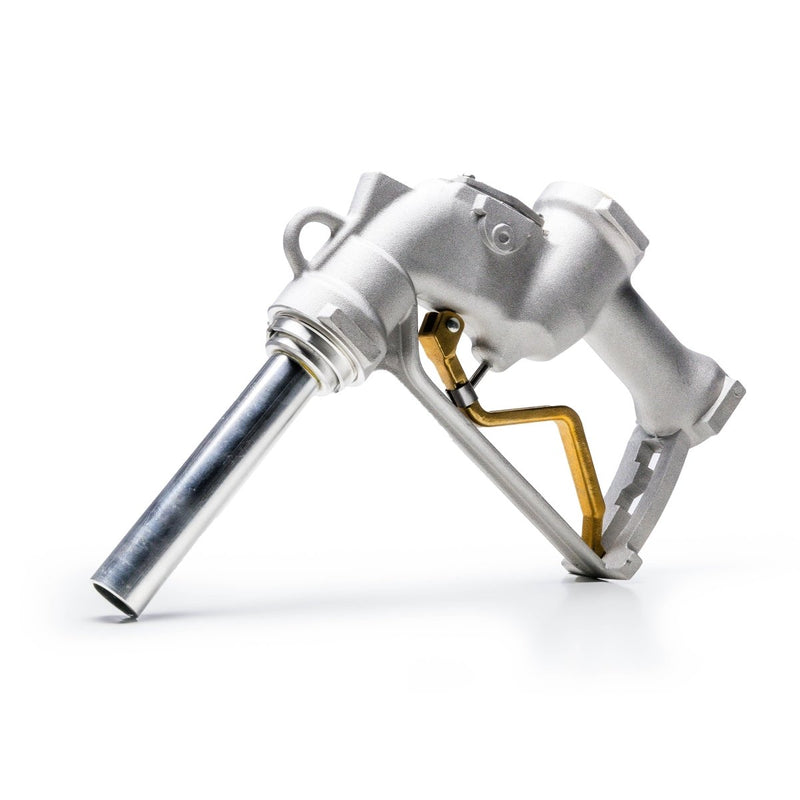

PIUSI Automatic Nozzle A280 with Swivel Diesel 280lpm
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Overview
The Piusi A280 High Speed Automatic Shut Off Diesel Nozzle is designed for the high flow refuelling of large vehicles and plant and agricultural machinery that take longer to refill due to their tank size.
Thanks to its large bore spout, this is the highest flow rate fuel dispensing nozzle in the Piusi range, and also benefits from a large hand opening to accommodate for the user wearing gloves. This fuel pump nozzle has an automatic shut-off mechanism that prevents the nozzle from dispensing any further fuel once the vehicle’s tank is full, therefore stopping an overspill.
Features
- Automatic Shut-Off: Cuts flow the moment the tank fills, so fuel does not end up on the ground or over the operator.
- 280 L/min Flow: Sized to keep pace with a transfer pump rather than throttling it back.
- Swivel Inlet: The 1 1/2 IN BSP female swivel lets the hose turn freely instead of kinking or twisting the wrist.
- Sealed For Fuel: Rated for diesel on non-resale transfer systems.
- Large Hand Opening: The guard is built to clear a gloved hand, which matters on a cold morning or a wet site.
Specifications
| MAXIMUM FLOW RATE | 280 L/MIN | 74 GPM |
|---|---|
| SHUT-OFF | Automatic, closes when the tank fills |
| INLET | 1 1/2 IN BSP FEMALE SWIVEL |
| SPOUT OUTSIDE DIAMETER | 38.5 MM | 1.52 IN |
| MAXIMUM WORKING PRESSURE | 3.5 BAR | 51 PSI |
| WEIGHT | 3.3 KG | 7.28 LB |
| SUITABLE FLUIDS | Diesel |
Data Sheet
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
