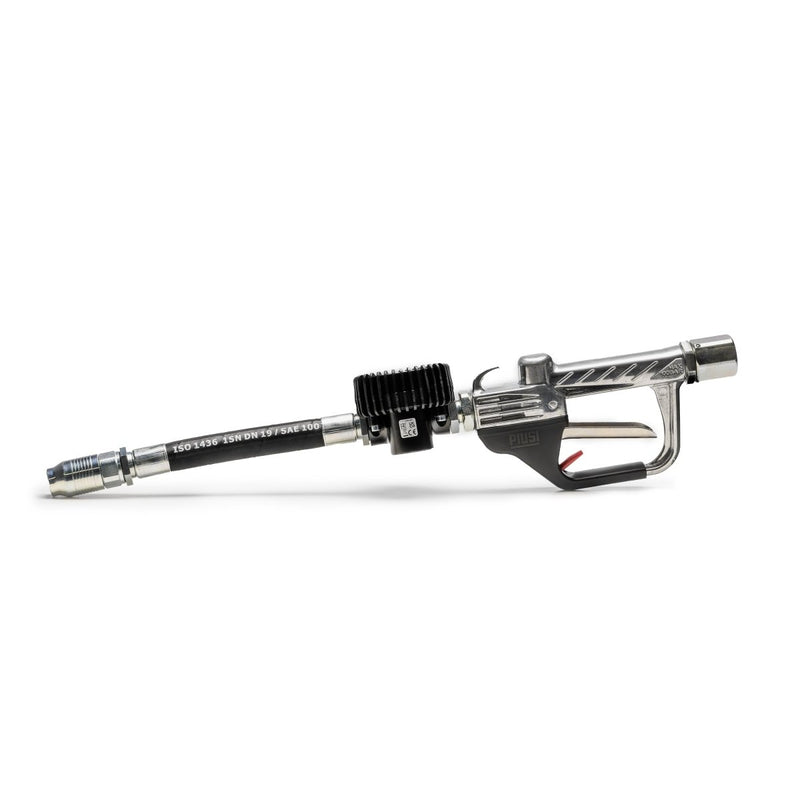

PIUSI Easy Next/2 Nozzle with Digital Meter
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
High flow-rate oil nozzle with oval gear electronic flow meter in acetal resin. The oval gear metering system allows for high metering precision with low pressure losses.
The high flow rate of the flow meter combined with the rugged and highly ergonomic nozzle and non-drip tip (available in both rigid and flexible versions) ensures clean, quick and safe delivery.
Model
- F00974010: Easy Next/2 3/4" BSP w/ Rigid Spout
- F00974020: Easy Next/2 3/4" BSP w/ Flexible Spout
Features
- 60 L/min Digital Metering: Twice the flow of the K400 with the same half-percent accuracy, for higher-volume oil dispensing.
- Inlet Filter: The swivel inlet carries a filter, so grit from the line does not reach the measuring chamber.
- Half A Percent Accuracy: Meters to +/- 0.5% with 0.2% repeatability.
- 70 Bar Working Pressure: Rated to 70 bar working and 140 bar bursting, with real margin behind a workshop pump.
Specifications
| MAXIMUM FLOW RATE | 60 L/MIN | 15.9 GPM |
|---|---|
| MAXIMUM OPERATING PRESSURE | 70 BAR | 1015 PSI |
| BURSTING PRESSURE | 140 BAR | 2030 PSI |
| ACCURACY | +/- 0.5% |
| REPEATABILITY | 0.2% |
| INLET | 3/4 IN BSP swivel coupling with impurity filter |
| METER TYPE | Digital |
| RANGE | 2 variants, selected by part number |
Data Sheet
Manual
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
