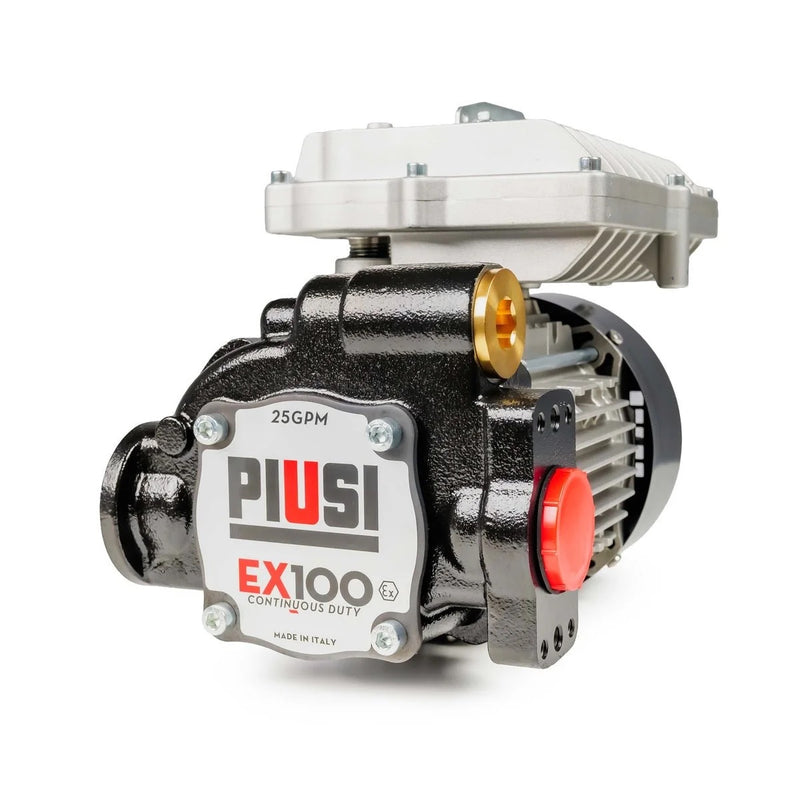

PIUSI EX100 Pump 240V AC 100lpm
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Engineered for heavy-duty fuel transfer in high-demand environments, the Piusi EX100 240V AC Petrol & Diesel Transfer Pump (F00390010), from GO Industrial, delivers a powerful, high-volume flow rate of up to 100 L/min.
Fully ATEX/IECEx certified for safe operation in Zone 1 hazardous areas, this heavy-duty Italian-made pump is specifically constructed to handle flammable liquids like petrol, gasoline, and kerosene, as well as diesel and aviation fuels.
Featuring a cast-iron pump body, high-efficiency continuous-duty motor, integrated bypass valve, and an anti-noise line filter, the Piusi EX100 from GO Industrial provides maximum safety, thermal overload protection, and fast turnaround times for bulk fuel dispensing across mining, commercial transport, and industrial sites.
Features
100 L/min Flow Rate
-
Slashing Fleet Downtime When Seconds Count. Designed for high-volume refueling, the Piusi EX100 delivers an impressive 100 litres per minute. Whether filling heavy earthmovers, haulage fleets, or aviation equipment, this high-flow workhorse minimises equipment turnaround times so your operations keep moving.
ATEX/IECEx Zone 1 Explosion-Proof Certification
-
Uncompromising Safety for Flammable Fuels. Certified to rigorous European and global explosion-proof standards (
Ex d IIA T4 Gb), the Piusi EX100 offers total peace of mind in hazardous, explosive environments. It is fully rated to safely pump highly volatile fluids including petrol, AVGAS, Jet A/A1, kerosene, and diesel without ignition risks.
Continuous-Duty (S1) Industrial Motor
-
Non-Stop Performance Built for Heavy Cycles. Unlike standard transfer pumps that require frequent cool-down periods, the Piusi EX100 features a heavy-duty 240V induction motor rated for continuous S1 operation. You can run bulk transfer operations back-to-back without thermal shutdowns interrupting your workflow.
Cast-Iron Industrial Armour & Italian Precision
-
Engineered to Outlast Cheaper Alternatives. Manufactured in Italy to strict manufacturing standards, the Piusi EX100 features a rugged cast-iron body, sintered-steel rotor, and premium Viton dynamic seals. It easily withstands harsh Australian job-site conditions, aggressive fuels, and thermal stress where budget copies fail.
Smart Internal Bypass System
-
Built-In Protection Against Overpressure. Featuring an integrated bypass valve, the pump automatically recirculates fluid internally when the delivery nozzle is shut off. This protects the pump seals, motor, and delivery lines from dangerous pressure spikes during short pauses in fuel dispensing.
Versatile Multi-Fuel Compatibility
-
One High-Performance Pump for Your Entire Site. Eliminate the hassle of maintaining different pump models for different fluid tanks. The EX100 is engineered to handle petrol (up to E15), diesel, biodiesel, kerosene, and aviation fuels with equal efficiency and complete seal compatibility.
Specifications
| Specification | Details |
|---|---|
| Manufacturer Code / SKU | F00390010 |
| Model | Piusi EX100 230/50 ATEX |
| Manufacturer | Piusi S.p.A. (Made in Italy) |
| Pump Type | Volumetric self-priming rotary vane pump with integrated bypass |
| Maximum Flow Rate | 100 L/min (25 GPM) |
| Voltage Supply | 230V AC / 50 Hz (compatible with 240V AU single-phase) |
| Power Consumption | 1035 Watts |
| Maximum Current Draw | 4.5 Amps |
| Motor Speed | 1450 RPM |
| Duty Cycle | Continuous (S1) |
| Inlet Port Connection | DN32 (1-1/4") BSP F |
| Outlet Port Connection | DN25 (1") BSP F |
| Suction Lift Capacity | 2 m (dry without foot valve) / 4 m (with non-return foot valve) |
| Maximum Head Pressure | 6 metres |
| ATEX Rating / Certification | II 2 G Ex d IIA T4 Gb (Zone 1 & Zone 2 rated) |
| IECEx Certificate | IECEx UL 19.0065X |
| Pump Body Material | Cast iron |
| Rotor / Vane Materials | Sintered steel rotor / Technopolymer vanes |
| Dynamic Seals | Viton® |
| Shaft Material | Hardened steel |
| Thermal Protection | Integrated automatic thermal cut-out |
| Operating Temperature Range | -20°C to +40°C |
| Approved Fluids | Petrol (Gasoline), E15, Diesel, Biodiesel, Kerosene, AVGAS (100/100LL), Jet A/A1, Aspen 2/4 |
| Unit Net Weight | 25 kg |
| Packaging Dimensions | 240 mm × 400 mm × 350 mm |
