PIUSI Grease Pump Kit 20KG with Cart & Control Valve
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.

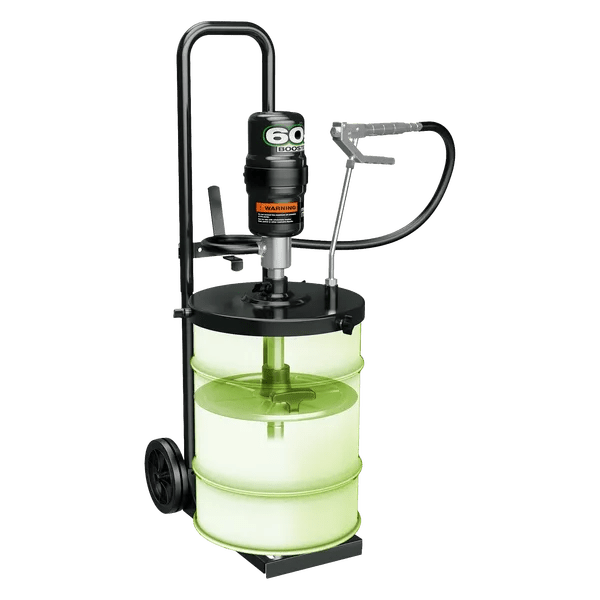

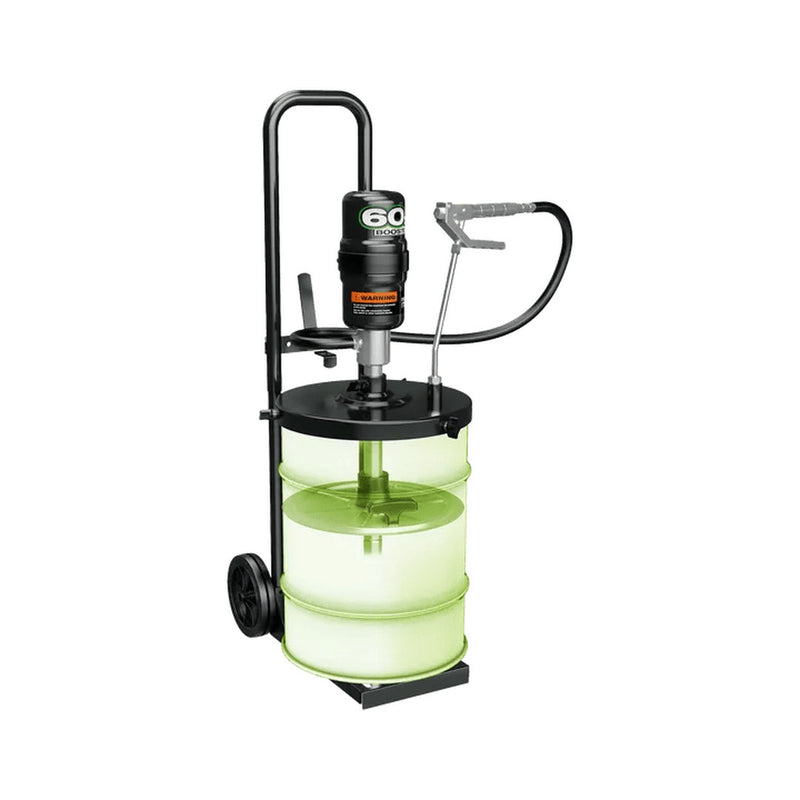

The Piusi Grease Pump Kit 20KG (GPK-20KG), available from GO Industrial, is a complete pneumatic grease dispensing package built around the proven Piusi P60:1 Booster pump. Designed for workshops, fleet maintenance bays, construction sites and industrial facilities, this kit includes everything you need to pump high-viscosity grease directly from a 20kg drum - no fuss, no missing parts.
Unlike standard grease gun kits, this configuration features a heavy-duty grease control valve rated to 7,500 PSI with Z swivel and 150mm steel extension with coupler, giving you precise dispensing control at the point of use. The double-acting pneumatic pump delivers consistent pressure with air consumption of just 130-160 L/min at 4-7 BAR operating pressure, while running below 77 dB - one of the quietest grease pumps on the market.
The kit comes mounted on a sturdy 2-wheel drum trolley for easy mobility around the workshop or job site, complete with a 300mm follower plate, drum cover and 4 metres of 1/4" high-pressure hose.
Kit Includes
- F0021605A - Piusi P60:1 470 Pneumatic Grease Pump (Double Effect)
- F20595000 - 2-Wheel Drum Trolley (suits 12-30KG drums)
- F20594000 - Follower Plate 300mm
- F20593000 - Drum Cover (18/30KG)
- F2060100A - High-Pressure Hose 1/4" x 1/4" M/F, 4 metres
- 43420 - Grease Control Valve 7,500 PSI, 1/4" BSPT (F) inlet, supplied with Z Swivel & 150mm steel extension with coupler
Key Features
- Double Effect Pump - delivers grease on both the up and down stroke for consistent output
- Super Silent Operation - runs below 77 dB noise level
- Heavy Duty Construction - built for demanding workshop and site environments
- High Pressure - 7,500 PSI control valve for precise grease dispensing
- Mobile - 2-wheel trolley for easy movement between service bays
- Ready to Go - complete kit with pump, cart, hose, valve and accessories
Performance Specifications
| Pump Model | Piusi P60:1 470 (F0021605A) |
| Pump Type | Pneumatic, Double Effect |
| Pressure Ratio | 60:1 |
| Operating Pressure | 4-7 BAR |
| Air Consumption | 130-160 L/min |
| Noise Level | Below 77 dB |
| Drum Size | Up to 20KG (18/30KG range) |
| Follower Plate Diameter | 300mm |
| Hose Length | 4 metres |
| Hose Size | 1/4" x 1/4" M/F |
| Control Valve Rating | 7,500 PSI |
| Control Valve Inlet | 1/4" BSPT (F) |
| Swivel | Z Swivel with 150mm steel extension & coupler |
| Cart Type | 2-Wheel Drum Trolley (12-30KG drums) |
| Suitable Fluids | Grease, high-viscosity lubricants |
Typical Applications
- Workshop and garage lubrication stations
- Fleet maintenance and servicing bays
- Construction site equipment greasing
- Mining and heavy equipment maintenance
- Agricultural machinery servicing
- Industrial production line lubrication
Air Supply Requirements
This kit requires a compressed air supply of 4-7 BAR with a minimum air flow of 160 L/min. Ensure your compressor can sustain the required air flow for continuous operation. A moisture trap / air filter regulator is recommended on the air inlet to protect the pump.
