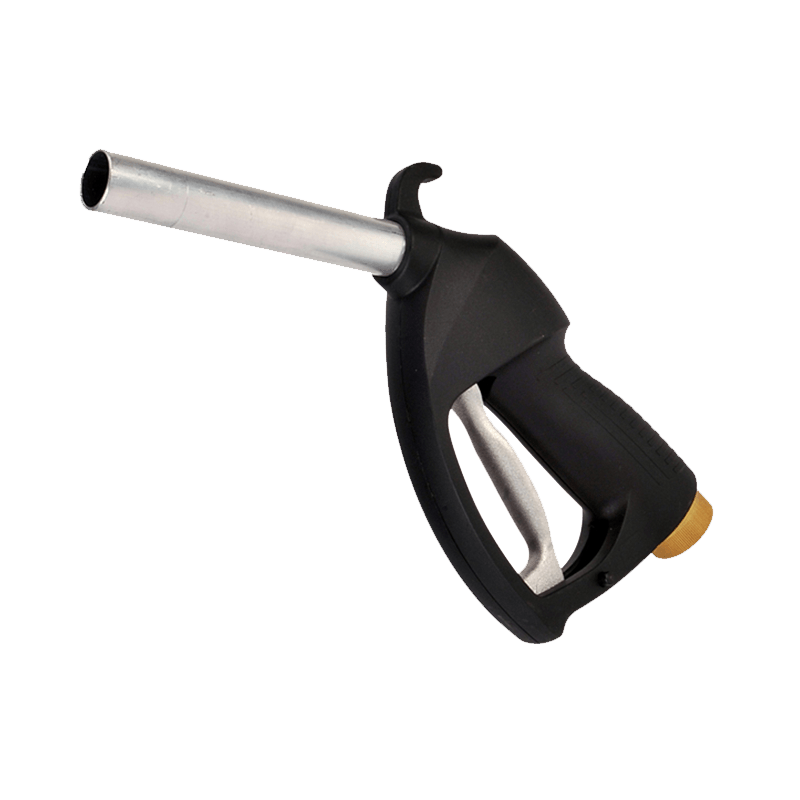

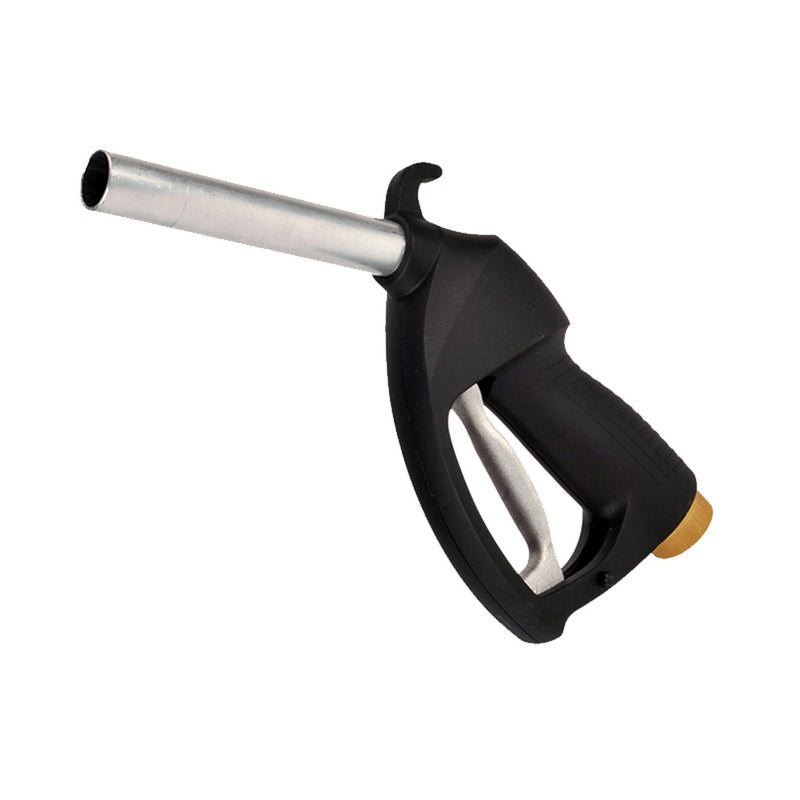

The Piusi Self 3000 Manual Shut Off Nozzle is manufactured with a corrosion resistant aluminium body enclosed in a anti-shock plastic shell that increases the nozzle's ease of handling by making the grip comfortable even when used at low temperatures.
The nozzle’s integrated swivel connector, and the hammer-free valve, guarantee a high degree of safety. The nozzle feature a low pressure loss allowing it to achieve flow rates up to 150 l/min.
Thanks to the reduced force necessary to open the valve, the Self 3000 nozzle can be used for the transfer of oil with working pressures up to 10 bars (142 psi).
The Piusi Self 3000 is suitable for gravity or pumping applications.
Features
- 150 L/min Flow: The highest-flow nozzle in the SELF range, built to keep up with a large transfer pump.
- Manual Shut-Off: Trigger-controlled flow with no automatic cut-off, which suits gravity-fed and low-pressure systems.
- Die-Cast Aluminium Body: Corrosion resistant, with an anti-shock shell that stays comfortable to hold in the cold.
- Rotating Swivel Inlet: A 1 in BSP female swivel lets the hose turn freely so it will not kink.
- Removable Lever Protection: Guards the trigger against knocks and comes off for tight fill points.
- Multi-Fuel Rated: Rated for diesel, oil, including HVO and XTL paraffinic diesel to EN 15940:2019.
Specifications
| MAXIMUM FLOW RATE | 150 L/MIN | 40 GPM |
|---|---|
| INLET | 1 IN BSP FEMALE SWIVEL |
| SPOUT OUTSIDE DIAMETER | 25 MM | 0.98 IN |
| WORKING PRESSURE | Up to 10 BAR | 142 PSI on oil transfer |
| OPERATION | Manual, no automatic shut-off |
| BODY MATERIAL | Die-cast aluminium |
| SEAL MATERIAL | NBR70SH |
| WEIGHT | 0.7 KG | 1.5 LB |
| SUITABLE FLUIDS | Diesel, oil |
| PARAFFINIC DIESEL | HVO and XTL compatible to EN 15940:2019 |
| SUPPLIED WITH | Nozzle and instruction manual |
