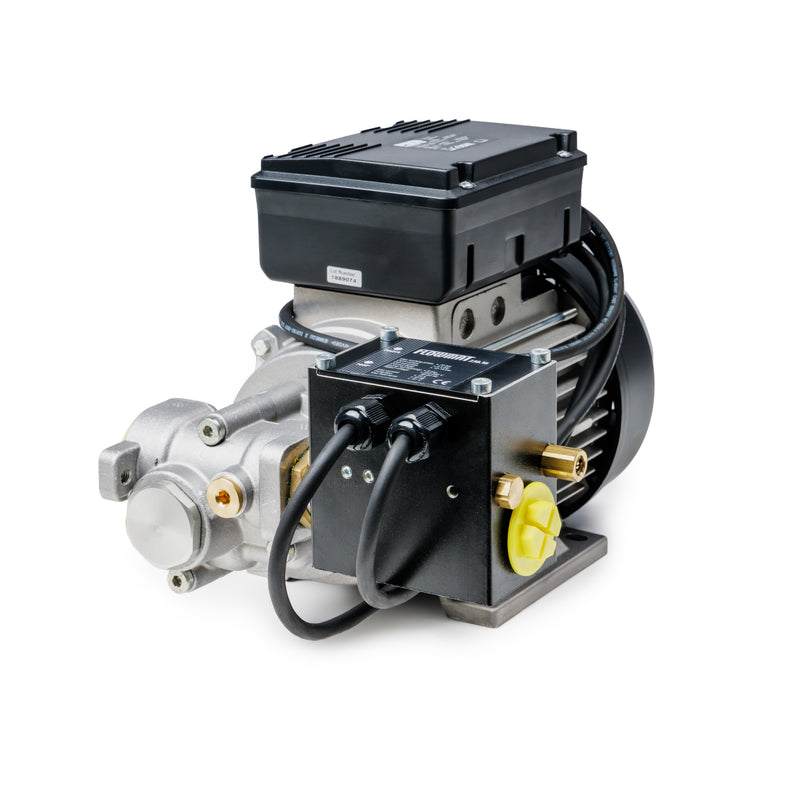

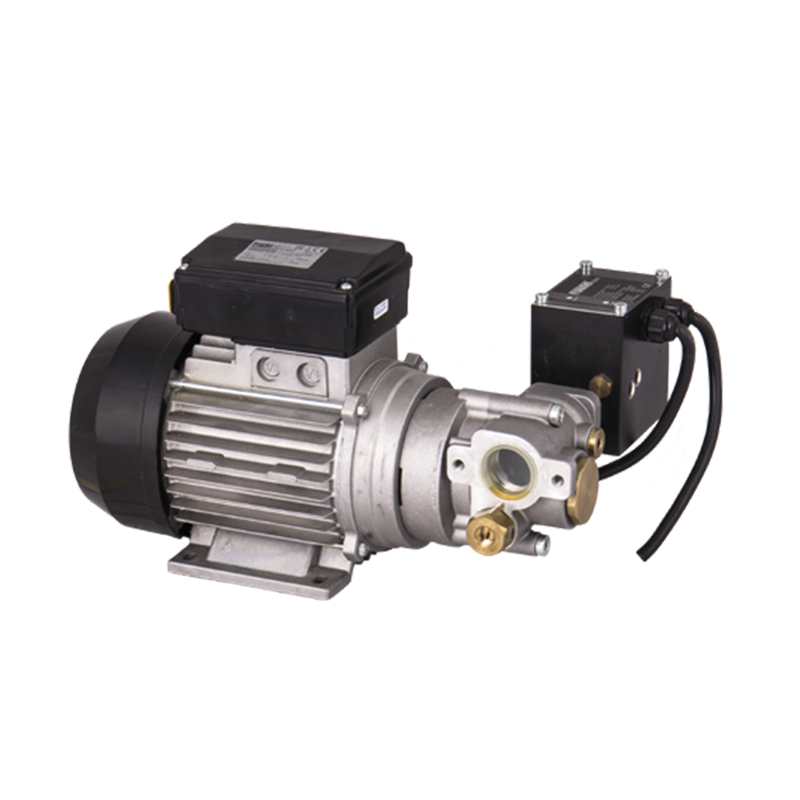

Engineered for automatic high-viscosity oil transfer, the Piusi Visco Flowmat 230V High-Viscosity Oil Pump Range (F0030204D & F0030206D), from GO Industrial, delivers reliable, on-demand performance for workshop fluid distribution networks, hose reels, and mobile servicing setups.
Equipped with an integrated pressure switch, these Italian-made internal gear pumps automatically start when the dispensing nozzle is opened and shut down instantly upon closure, protecting the motor and eliminating constant manual switching.
Designed to handle heavy gear oils, hydraulic fluids, and lubricants up to 2000 cSt without stalling, the Piusi Visco Flowmat range provides smooth, pulse-free delivery
The Piusi Visco Flowmat 230/3 M F0030204D model delivers up to 14 L/min at up to 16 Bar pressure, and the Piusi Visco Flowmat 350/2 M F0030206D model delivers up to 9 L/min at higher working pressure of up to 25 bar.
Featuring a heavy-duty cast-iron body, self-priming capability, and integrated bypass safety valve, the Piusi Visco Flowmat range from GO Industrial is the ideal solution for clean, efficient, and reliable lubricant dispensing.
Features
Automated On-Demand Operation
-
Workplace Efficiency Made Effortless. Equipped with an integrated pressure-sensing switch, the Piusi Visco Flowmat automatically powers on the moment you open the nozzle and shuts off instantly when you release it. This delivers a seamless, tap-like oil dispensing experience while preventing system over-pressurisation and reducing unnecessary motor wear.
High-Viscosity Performance (Up to 2000 cSt)
-
Conquer Heavy Lubricants Without Stalling. Engineered with a high-torque 230V motor and precision-cut internal gears, this pump effortlessly transfers thick gear oils, engine oils, hydraulic fluids, and heavy lubricants where standard vane pumps fail.
Constant Flow Under Variable Pressure
-
Smooth, Uninterrupted Delivery Every Time. The internal gear mechanism ensures a steady, pulse-free flow rate of up to 14 L/min (at maximum 16 bar pressure), for the 230/3 M F0030204D model, guaranteeing fast, predictable topping-up and fluid transfers across long hose reels and pipe runs.
Authentic Italian Engineering & Cast-Iron Armour
-
Built for Heavy Industrial Duty. Manufactured in Italy by Piusi, the Visco Flowmat features a rugged cast-iron housing and hardened steel gears designed to endure aggressive workshop environments, thermal stress, and continuous daily operation.
Integrated Adjustable Bypass Safety Valve
-
Maximum System Protection. Built-in pressure regulation protects your inline meters, hose reels, and plumbing fixtures from extreme pressure spikes, ensuring safe operation during high-viscosity cold starts.
Quiet & Self-Priming Operation
-
Clean, Smooth Workshop Performance. The self-priming gear design rapidly draws fluid from drums, IBCs, or bulk storage tanks without requiring manual priming, while operating with minimal vibration and low noise levels.
Specifications
| Specification | 230/3 (14 L/min) | 350/2 (9 L/min) |
|---|---|---|
| Part Number / SKU | F0030204D | F0030206D |
| Model Name | Piusi Visco Flowmat 230/3 (14 L/min) | Piusi Visco Flowmat 350/2 (9 L/min) |
| Manufacturer | Piusi S.p.A. (Made in Italy) | |
| Pump Type | Self-priming internal gear pump with automatic pressure switch | |
| Maximum Flow Rate | 14 L/min (3.7 GPM) | 9 L/min (2.4 GPM) |
| Maximum Operating Pressure | 16 bar (232 PSI) | 25 bar (362 PSI) |
| Viscosity Range | Up to 2000 cSt | |
| Voltage Supply | 230V AC / 50 Hz (1-Phase) | |
| Power Consumption | 1200 Watts | |
| Current Draw | 6 Amps | |
| Motor Speed | 1450 RPM | |
| Duty Cycle | Continuous (S1) | |
| Inlet Connection Size | DN25 (1") BSP F | |
| Outlet Connection Size | DN25 (1") BSP F | |
| Automatic Control | Integrated pressure switch (auto start/stop) | |
| Bypass Valve | Integrated adjustable bypass safety valve | |
| Pump Body Material | Cast iron | |
| Gears Material | Sintered steel | |
| Noise Level | Below 70 dB(A) | |
| Compatible Fluids | Engine oil, gear oil, hydraulic fluid, synthetic lubricants (up to 2000 cSt) | |
| Weight | 15kg | |
| Shipping Dimensions | 36cm x 36cm x 30cm | |
