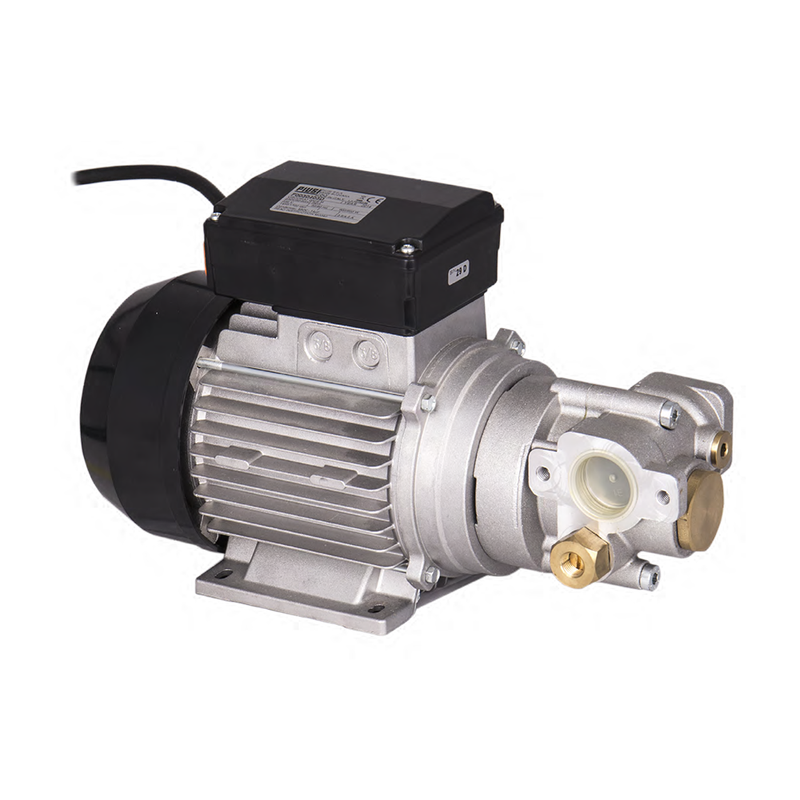

Engineered for heavy-duty lubricants dispensing, the Piusi Viscomat 240V AC Gear Pump Range (SKU's F0030430D & F0030401D), from GO Industrial, provides reliable, high-pressure oil transfer for workshops, transport depots, and industrial sites.
Designed to handle medium to high-viscosity lubricants up to 2000 cSt, these self-priming, Italian-made gear pumps deliver smooth, constant flow without pulsation—making them the ideal choice for plumbing into hose reels and centralised lubricant distribution systems.
While both models feature rugged cast-iron construction, integrated bypass valves, and quiet operation, the key difference lies in their pressure and flow performance: the Piusi Viscomat 230/3 (F0030430D) delivers a higher flow rate of 14 L/min at up to 16 Bar pressure, whereas the higher-pressure Piusi Viscomat 350/2 (F0030401D) is engineered for longer pipe runs and higher resistance, producing 9 L/min at up to 25 bar working pressure.
Features
High-Viscosity Performance Up to 2000 cSt
-
Conquer Heavy Oils Without Cavitation. Engineered specifically for demanding lubricant transfers, both Piusi Viscomat gear pumps handle medium-to-high viscosity oils—including heavy engine oils, gear oils, and hydraulic fluids—delivering a smooth, constant, and pulse-free flow where standard vane pumps stall.
Two Tailored Performance Profiles for Any Distance
-
Match Your System’s Exact Flow and Pressure Demand. Choose the right tool for your piping network:
-
Piusi Viscomat Gear 230/3 M (F0030430D): High-volume model delivering 14 L/min at up to 16 bar—ideal for standard hose reels and faster bulk transfers.
-
Piusi Viscomat Gear 350/2 M (F0030401D): Extreme-pressure model delivering 9 L/min at up to 25 bar—purpose-built to push heavy oil through long pipe runs, restrictive inline meters, and complex multi-reel setups.
-
Heavy-Duty Continuous-Duty Motor (S1 Rating)
-
Built for Non-Stop Workshop Operation. Powered by a heavy-duty 240V AC single-phase motor rated for continuous S1 operation, these pumps run reliably through back-to-back dispensing jobs without thermal shutdowns interrupting your workshop operations.
Integrated Adjustable Bypass Safety Valve
-
Protect Your Meters, Reels, and Plumbing. Built-in internal bypass protection automatically recirculates fluid if the discharge line or nozzle is closed while the motor is running, preventing over-pressurisation and extending component service life.
DN25 (1") BSP F Standard Ports & Self-Priming Action
-
Seamless Integration and Fast Setup. Equipped with standard DN25 (1") BSP Female inlet and outlet connections, both units dry self-prime quickly from drums, IBCs, or bulk storage tanks, making installation straightforward across stationary and mobile oil dispensing skids.
Authentic Italian Engineering & Cast-Iron Armour
-
Industrial-Grade Reliability. Manufactured in Italy by Piusi, each pump features a rugged cast-iron body, precision-machined sintered steel gears, and low-vibration construction operating at under 70 dB(A)—delivering quiet, clean, and long-lasting workshop service.
Specifications
| Specification | Viscomat Gear 230/3 M | Viscomat Gear 350/2 M |
|---|---|---|
| Part Number / SKU | F0030430D | F0030401D |
| Model Name | Piusi Viscomat 230/3 M | Piusi Viscomat 350/2 M |
| Manufacturer | Piusi S.p.A. (Made in Italy) | |
| Pump Type | Self-priming internal gear pump for lubricants | |
| Maximum Flow Rate | 14 L/min (3.7 GPM) | 9 L/min (2.4 GPM) |
| Maximum Pressure | 16 bar (232 PSI) | 25 bar (362 PSI) |
| Viscosity Range | Up to 2000 cSt | |
| Voltage Supply | 240V AC / 50 Hz (Single-Phase) | |
| Inlet Connection Size | DN25 (1") BSP F | |
| Outlet Connection Size | DN25 (1") BSP F | |
| Bypass Valve | Integrated adjustable bypass valve | |
| Duty Cycle | Continuous (S1) | |
| Pump Body Material | Cast iron | |
| Gears Material | Sintered steel | |
| Noise Level | Below 70 dB(A) | |
| Compatible Fluids | Engine oil, gear oil, hydraulic fluid, synthetic lubricants | |
