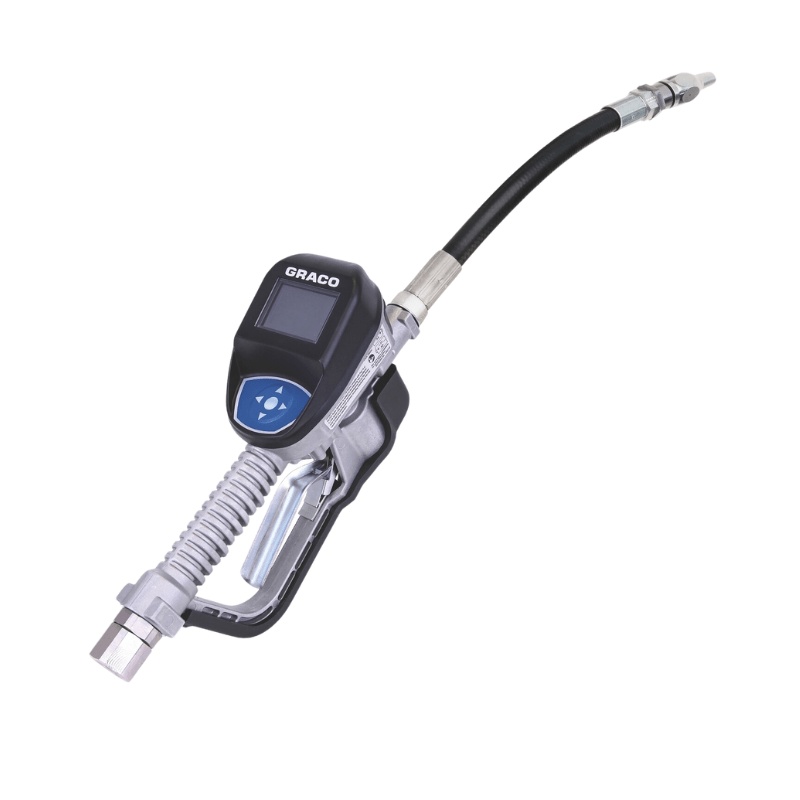

GRACO Pulse Metered Dispense Valve with 1/2" Flex Nozzle for Antifreeze Applications
SKU 25M320
$2,245.45
ex GST · $2,470.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Graco dispense meters designed for the Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.
Features
- Electronic Metering: Records every dispense against the meter, technician and work order, so stock levels stay accurate without a manual log.
- Large High-Contrast Display: Stays readable in a dim bay or in full sun, with PIN entry and NFC tag support right at the meter.
- Protective Trigger Guard: A four-finger trigger with lock-on, guarded so it will not dispense if the gun is knocked or set down.
- Half A Percent Accuracy: Meters to +/- 0.5 percent, so the volume you bill matches the volume that went into the machine.
- No Trip To The Office: The dispense is completed at the gun, so the technician does not leave the bay to close it out on a computer.
- Long Battery Life: Runs on four AA alkaline batteries that take a moment to swap without pulling the meter off the hose.
Specifications
| DISPLAY TYPE | LCD |
|---|---|
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| INCLUDES | Extension, Nozzle, Batteries, Swivel Boot |
| INLET SIZE | 12.7 MM | 1/2 IN |
| INLET THREAD TYPE | NPT |
| MAXIMUM FLOW RATE | 8 GPM |
| MAXIMUM OPERATING TEMPERATURE | 70 C | 158 F |
| MAXIMUM STORAGE TEMPERATURE | 70 C | 158 F |
| MAXIMUM WORKING PRESSURE | 103.4 BAR | 1500 PSI |
| METER ACCURACY | ±0.5% |
| OVERALL LENGTH | 330 MM | 13 IN |
| OVERALL WIDTH | 95 MM | 3.75 IN |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT | 2.4 KG | 5.3 LB |
| MINIMUM FLOW RATE | 0.9 L/MIN | 0.25 GPM |
| WETTED MATERIAL | Aluminium, Stainless Steel, PBT, Nitrile Rubber, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| WARRANTY | Five Years Structural, 3 Years Electronics, 1 Year Wear Components |
| UNIT OF MEASURE | Pint, Quart, Gallon, Litre |
| TRIGGER LOCK | Locking |
| NOZZLE TYPE | Manual Anti-Freeze |
| MINIMUM OPERATING TEMPERATURE | -16 C | 4 F |
| TYPE | Electronic Metered Dispense Valve |
| PRODUCT TYPE | Meter |
| MODEL | Pulse |
