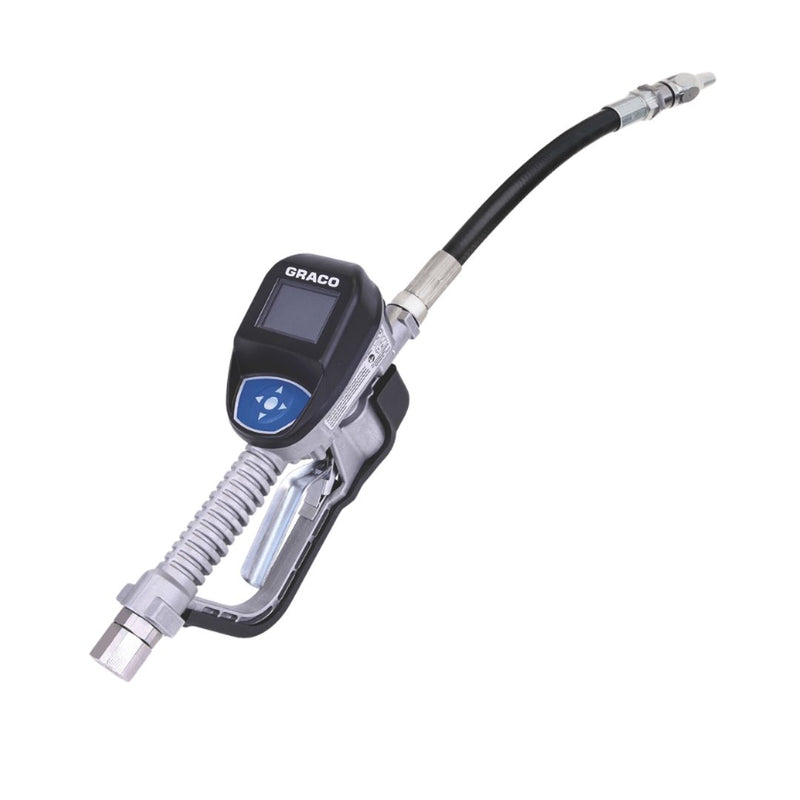

GRACO Metered Dispense Valve with 1/2" Automatic Nozzle for Oil Applications
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Overview
Dispense meters built for the Pulse fluid management system are durable and quick to work with. Everything sits at your fingertips: enter PINs and job data on the display, or flash an NFC tag to start. Each dispense is tracked to the meter, the technician and the work order, so oil usage reconciles without anyone keeping a paper log.
This configuration pairs a flexible extension with a 1/2 in automatic quick-close nozzle for oil, delivering up to 30 L/min at 1500 psi with metering accurate to half a percent.
Features
- Electronic Metering: Records every dispense against the meter, technician and work order, so stock levels stay accurate without a manual log.
- Large High-Contrast Display: Stays readable in a dim bay or in full sun, with PIN entry and NFC tag support right at the meter.
- Automatic Quick-Close Nozzle: Shuts off cleanly at the end of a dispense to stop drips and overfills.
- Flexible Extension: Bends into fill points on engines and gearboxes without repositioning the machine.
- Protective Trigger Guard: A four-finger trigger with lock-on, guarded so it will not dispense if the gun is knocked or set down.
- Half A Percent Accuracy: Meters to +/- 0.5 percent, so the volume you bill matches the volume that went into the machine.
- Long Battery Life: Runs on four AA alkaline batteries that take a moment to swap without pulling the meter off the hose.
Specifications
| MAXIMUM FLOW RATE | 30 L/MIN | 8 GPM |
|---|---|
| MAXIMUM WORKING PRESSURE | 103.4 BAR | 1500 PSI |
| METER ACCURACY | +/- 0.5 percent |
| INLET | 1/2 IN NPT (25M319) | 1/2 IN BSPT (25M349) |
| OUTLET | 3/4 IN-16 straight thread o-ring boss |
| EXTENSION | Flexible |
| NOZZLE | Automatic quick-close |
| DISPLAY | LCD |
| POWER | 4 x AA alkaline batteries |
| WEIGHT | 2.4 KG | 5.3 LB |
| LENGTH WITHOUT EXTENSION | 33 CM | 13 IN |
| WIDTH WITHOUT EXTENSION | 9.5 CM | 3.75 IN |
| HEIGHT WITHOUT EXTENSION | 14.6 CM | 5.75 IN |
| OPERATING TEMPERATURE RANGE | -16 C TO 70 C | 4 F TO 158 F |
| WETTED PARTS | Aluminium, stainless steel, PBT, nitrile rubber, zinc-plated carbon steel, nickel-plated carbon steel |
| FLUID COMPATIBILITY | Anti-freeze, gear oil, crankcase oil, automatic transmission fluid, windscreen washer fluid |
