Graco dispense meters designed for the Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.

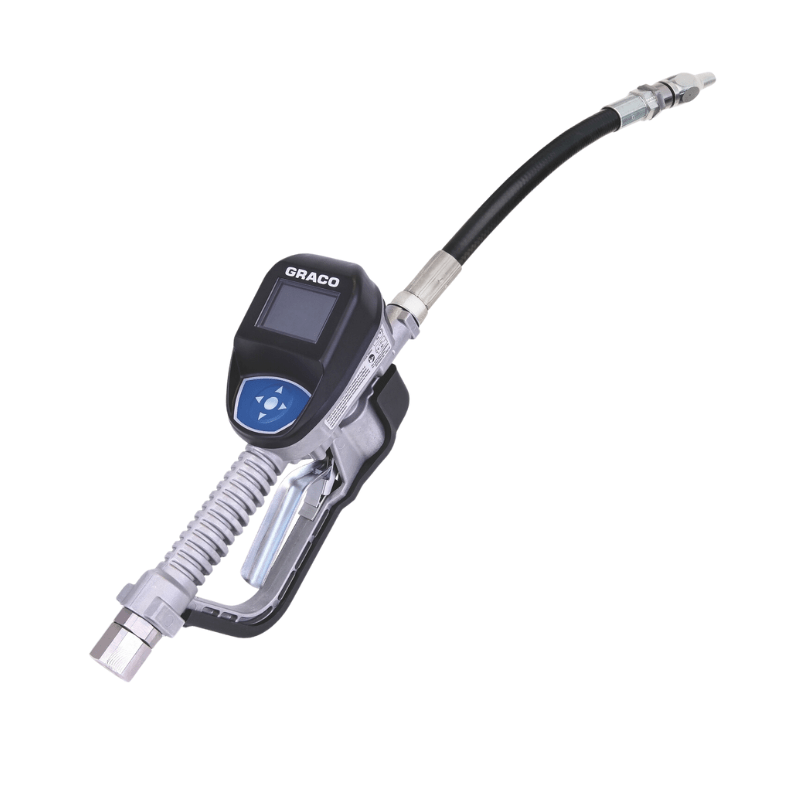

GRACO Pulse Metered Dispense Valve with 1/2" Flex Nozzle for Oil Applications
SKU 25M324
$2,281.82
ex GST · $2,510.00 inc GST
Prices shown ex GST.
Shipping calculated at checkout.
Quantity
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Features
- Electronic Metering: Records every dispense against the meter, technician and work order, so stock levels stay accurate without a manual log.
- Large High-Contrast Display: Stays readable in a dim bay or in full sun, with PIN entry and NFC tag support right at the meter.
- Protective Trigger Guard: A four-finger trigger with lock-on, guarded so it will not dispense if the gun is knocked or set down.
- Half A Percent Accuracy: Meters to +/- 0.5 percent, so the volume you bill matches the volume that went into the machine.
- No Trip To The Office: The dispense is completed at the gun, so the technician does not leave the bay to close it out on a computer.
- Long Battery Life: Runs on four AA alkaline batteries that take a moment to swap without pulling the meter off the hose.
Specifications
| DISPLAY TYPE | LCD |
|---|---|
| EXTENSION TYPE | Flexible |
| FLUID INLET THREAD GENDER | Female |
| INCLUDES | Extension, Nozzle, Batteries, Swivel Boot |
| INLET SIZE | 12.7 MM | 1/2 IN |
| INLET THREAD TYPE | NPT |
| MAXIMUM FLOW RATE | 18 GPM |
| MAXIMUM OPERATING TEMPERATURE | 70 C | 158 F |
| MAXIMUM STORAGE TEMPERATURE | 70 C | 158 F |
| MAXIMUM WORKING PRESSURE | 103.4 BAR | 1500 PSI |
| METER ACCURACY | ±0.5% |
| OVERALL LENGTH | 330 MM | 13 IN |
| OVERALL WIDTH | 95 MM | 3.75 IN |
| METER TECHNOLOGY | Oval Gear |
| METERING GUN WEIGHT | 2.4 KG | 5.3 LB |
| MINIMUM FLOW RATE | 0.9 L/MIN | 0.25 GPM |
| WETTED MATERIAL | Aluminium, Stainless Steel, PBT, Nitrile Rubber, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| WARRANTY | Five Years Structural, 3 Years Electronics, 1 Year Wear Components |
| UNIT OF MEASURE | Pint, Quart, Gallon, Litre |
| TRIGGER LOCK | Locking |
| NOZZLE TYPE | High Flow |
| MINIMUM OPERATING TEMPERATURE | -16 C | 4 F |
| TYPE | Electronic Metered Dispense Valve |
| PRODUCT TYPE | Meter |
| MODEL | Pulse |
