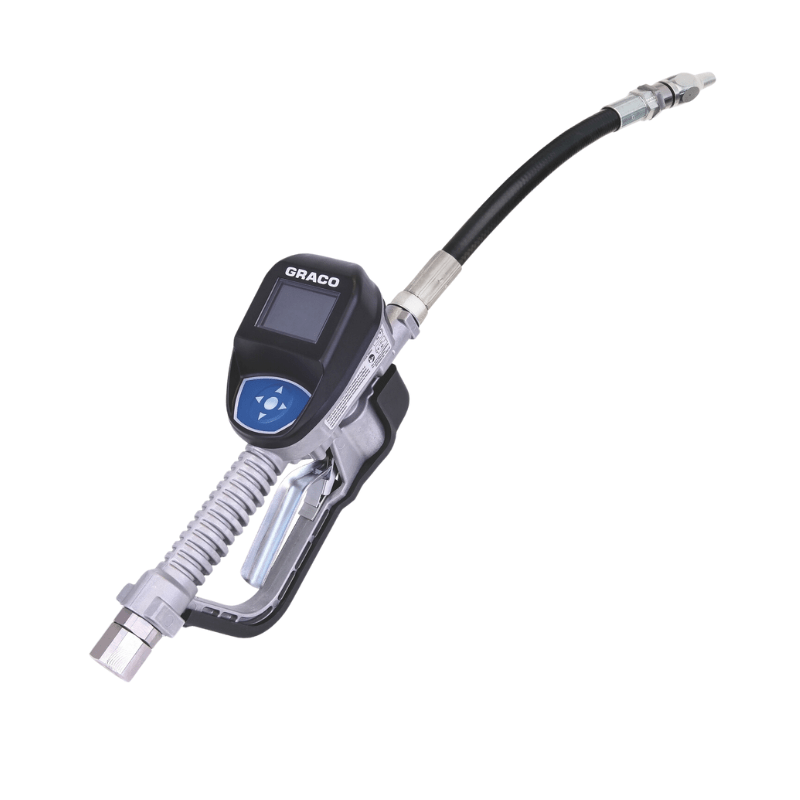

GRACO Metered Dispense Valve with 1/2" Automatic Nozzle for Oil Applications
SKU 25M319
$2,470.00
Tax included. Shipping calculated at checkout.
In Stock, Victoria Warehouse
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Graco Pulse Metered Dispense Valve with 1/2" Automatic Nozzle for Oil Applications
Overview
Graco dispense meters designed for the Pulse® fluid management system are durable and easy to use. Everything you need is at your fingertips. Enter PINs and other data using the intuitive display.
Features
Features
Specifications
| Display Type | LCD |
|---|---|
| Extension Type | Flexible |
| Fluid Inlet Thread Gender | Female |
| Includes | Extension |
| Inlet Size (cm) | 1.27 |
| Inlet Size (in) | 1/2 |
| Inlet Size (mm) | 12.7 |
| Inlet Thread Type | BSPT |
| Maximum Flow Rate (GPM) | 8 |
| Maximum Operating Temperature (°C) | 70 |
| Maximum Operating Temperature (°F) | 158 |
| Maximum Storage Temperature (°F) | 158 |
| Maximum Storage Temperature (°C) | 70 |
| Maximum Working Pressure (psi) | 1500 |
| Maximum Working Pressure (kPa) | 10340 |
| Maximum Working Pressure (bar) | 103.4 |
| Meter Accuracy (%) | ±0.5 |
| Overall Length (cm) | 33 |
| Overall Length (ft) | 1 |
| Overall Length (in) | 13 |
| Overall Length (mm) | 330 |
| Overall Width (cm) | 9.5 |
| Overall Width (in) | 3.75 |
| Overall Width (mm) | 95 |
| Meter Technology | Oval Gear |
| Metering Gun Weight (lb) | 5.3 |
| Metering Gun Weight (kg) | 2.4 |
| Minimum Flow Rate (GPM) | 0.25 |
| Minimum Flow Rate (L/min) | 0.9 |
| Wetted Material | Aluminum, Stainless Steel, PBT, Nitrile Rubber, Zinc-Plated Carbon Steel, Nickel-Plated Carbon Steel |
| Warranty | Five Years Structural, 3 Years Electronics, 1 Year Wear Components |
| Unit of Measure | Pint, Quart, Gallon, Liter |
| Trigger Lock | Locking |
| Nozzle Type | Oil Automatic Quick-Close |
| Minimum Operating Temperature (°F) | 4 |
| Minimum Operating Temperature (°C) | -16 |
| Type | Electronic Metered Dispense Valve |
| Maximum Working Pressure (MPa) | 10.3 |
| Overall Length (m) | 0.33 |
| Product Type | Meter |
| Model | Pulse |
