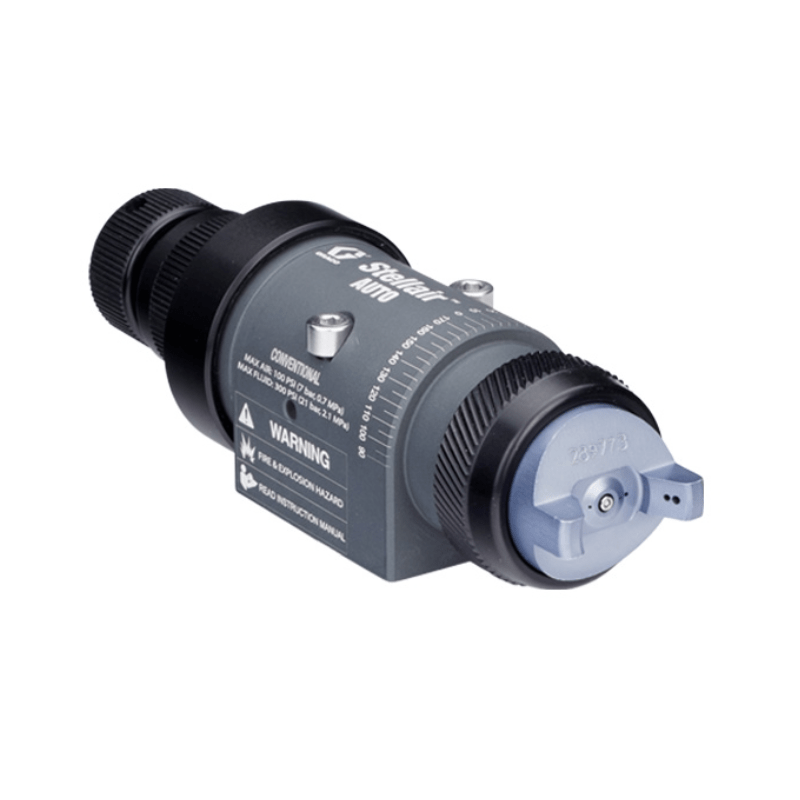

Graco Stellair Automatic Air Spray Conventional Gun for General Industry, 0.030 Nozzle
  • Graco Stellair Automatic Air Spray Conventional Gun for General Industry, 0.030 Nozzle
1 1
  • Graco Manual Instruction Stellair Auto Air Spray Gun 407194EN-D
  • Graco Brochure Stellair Automatic Air Spray Guns for Liquid Finishing 345208EN-A
BODY MATERIAL Metal
COMPATIBLE MATERIAL Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne
FLUID ORIFICE SIZE (IN) 0.03
FLUID ORIFICE SIZE (MM) 0.8
GUN TYPE Conventional Gun
GUN WEIGHT (G) 430
GUN WEIGHT (LB) 1
MAXIMUM AIR PRESSURE (BAR) 7
MAXIMUM AIR PRESSURE (PSI) 100
MAXIMUM FLUID TEMPERATURE (°C) 49
MAXIMUM FLUID TEMPERATURE (°F) 120
MINIMUM AIR INLET PRESSURE (BAR) 3.4
MINIMUM AIR INLET PRESSURE (PSI) 50
OVERALL HEIGHT (IN) 1.9
OVERALL HEIGHT (MM) 48.3
OVERALL LENGTH (IN) 5.9
OVERALL LENGTH (MM) 150
OVERALL WIDTH (IN) 1.63
OVERALL WIDTH (MM) 41.4
APPLICATION General
TYPE Auto Gun
APPLICATOR TYPE Automatic
NEEDLE TIP MATERIAL PEEK
FLUID ADJUSTMENT KNOB Optional
SOUND POWER LEVEL (DB(A)) 88.82
SOUND PRESSURE LEVEL (DB(A)) 78.91
MAXIMUM FLUID WORKING PRESSURE (PSI) 300
MAXIMUM FLUID WORKING PRESSURE (MPA) 2.1
MAXIMUM FLUID WORKING PRESSURE (BAR) 21
MAXIMUM FLOW RATE (OZ/MIN) 10
MAXIMUM AIR PRESSURE (MPA) 0.7
MINIMUM AIR INLET PRESSURE (MPA) 0.34
GUN MODEL Stellair
MANIFOLD TYPE Not Included
NOZZLE SIZE (IN) 0.03
NOZZLE SIZE (MM) 0.8
GUN_SERIES Automatic
  • Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
  • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
  • The precise fluid flow control click knob with a true zero set point ensures accurate paint thicknesses.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

Graco Stellair Automatic Air Spray Conventional Gun for General Industry, 0.030 Nozzle

SKU: 25F167

Graco Stellair Automatic Air Spray Conventional Gun for General Industry, 0.030 Nozzle

$1,716.00 AUD
$1,716.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
Size

Other payment options

The Basics

The Conventional air spray gun delivers stellar results when applying adhesive material as part of a robotic, reciprocator, flat line or other automated finishing system.

The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.

  • Graco Manual Instruction Stellair Auto Air Spray Gun 407194EN-D
  • Graco Brochure Stellair Automatic Air Spray Guns for Liquid Finishing 345208EN-A
BODY MATERIAL Metal
COMPATIBLE MATERIAL Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne
FLUID ORIFICE SIZE (IN) 0.03
FLUID ORIFICE SIZE (MM) 0.8
GUN TYPE Conventional Gun
GUN WEIGHT (G) 430
GUN WEIGHT (LB) 1
MAXIMUM AIR PRESSURE (BAR) 7
MAXIMUM AIR PRESSURE (PSI) 100
MAXIMUM FLUID TEMPERATURE (°C) 49
MAXIMUM FLUID TEMPERATURE (°F) 120
MINIMUM AIR INLET PRESSURE (BAR) 3.4
MINIMUM AIR INLET PRESSURE (PSI) 50
OVERALL HEIGHT (IN) 1.9
OVERALL HEIGHT (MM) 48.3
OVERALL LENGTH (IN) 5.9
OVERALL LENGTH (MM) 150
OVERALL WIDTH (IN) 1.63
OVERALL WIDTH (MM) 41.4
APPLICATION General
TYPE Auto Gun
APPLICATOR TYPE Automatic
NEEDLE TIP MATERIAL PEEK
FLUID ADJUSTMENT KNOB Optional
SOUND POWER LEVEL (DB(A)) 88.82
SOUND PRESSURE LEVEL (DB(A)) 78.91
MAXIMUM FLUID WORKING PRESSURE (PSI) 300
MAXIMUM FLUID WORKING PRESSURE (MPA) 2.1
MAXIMUM FLUID WORKING PRESSURE (BAR) 21
MAXIMUM FLOW RATE (OZ/MIN) 10
MAXIMUM AIR PRESSURE (MPA) 0.7
MINIMUM AIR INLET PRESSURE (MPA) 0.34
GUN MODEL Stellair
MANIFOLD TYPE Not Included
NOZZLE SIZE (IN) 0.03
NOZZLE SIZE (MM) 0.8
GUN_SERIES Automatic
  • Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
  • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
  • The precise fluid flow control click knob with a true zero set point ensures accurate paint thicknesses.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
