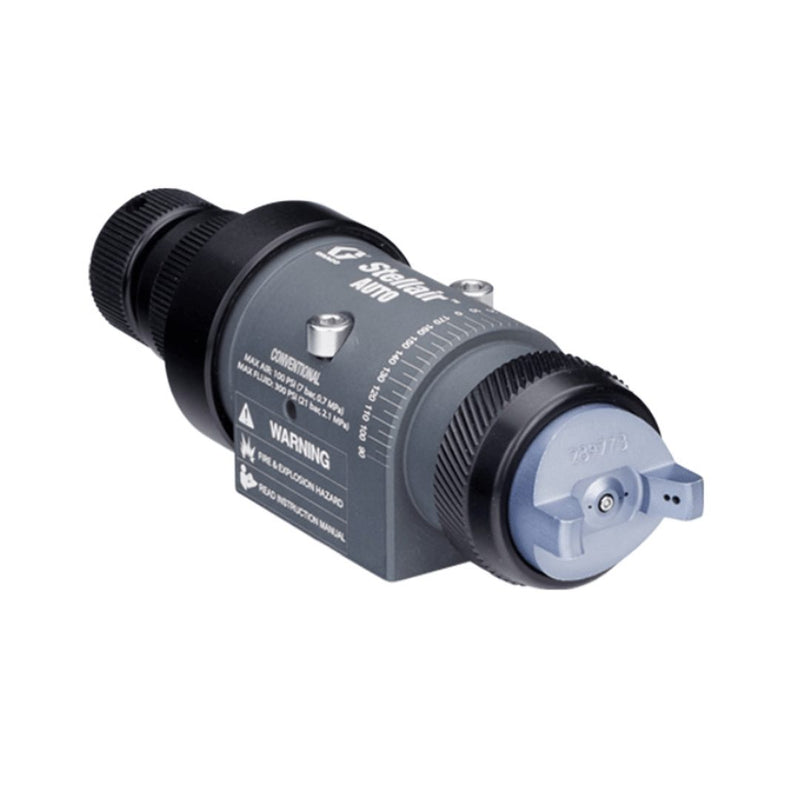

Stellair Automatic Air Spray Gun Conventional 25F168
  • Stellair Automatic Air Spray Gun Conventional 25F168
1 1

GRACO Stellair Automatic Air Spray Conventional Gun for General Indusrty, 0.042 Nozzle

SKU: 25F168

GRACO Stellair Automatic Air Spray Conventional Gun for General Indusrty, 0.042 Nozzle

$1,716.00 AUD
$1,716.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.
Size

Other payment options

View full details
Stellair Automatic Air Spray Gun Conventional 25F168

GRACO Stellair Automatic Air Spray Conventional Gun for General Indusrty, 0.042 Nozzle

From $1,617.00 AUD
From $1,617.00 AUD
Save $0
Sold out

Features

  • Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
  • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
  • The precise fluid flow control click knob with a true zero set point ensures accurate paint thicknesses.
  • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
  • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
  • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.

    • Graco Stellair Automatic Air Spray Conventional Gun for General Indusrty, 0.042 Nozzle

    Overview

    The Conventional air spray gun delivers stellar results when applying adhesive material as part of a robotic, reciprocator, flat line or other automated finishing system.

    The automatic air spray gun brings all-star performance to many industrial finishing applications, including automotive, industrial metal and plastic components, wood products and architectural structures.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • Graco Manual Instruction Stellair Auto Air Spray Gun 407194EN-D
    • Graco Brochure Stellair Automatic Air Spray Guns for Liquid Finishing 345208EN-A

    Specifications

    BODY MATERIAL Metal
    COMPATIBLE MATERIAL Adhesives, Ceramics, Fast-Set, High Solids, Sealants, Solventborne Paints, Stains, UV Coating, Waterborne
    FLUID ORIFICE SIZE (IN) 0.042
    FLUID ORIFICE SIZE (MM) 1.10
    GUN TYPE Conventional Gun
    GUN WEIGHT (G) 430
    GUN WEIGHT (LB) 1
    MAXIMUM AIR PRESSURE (BAR) 7
    MAXIMUM AIR PRESSURE (PSI) 100
    MAXIMUM FLUID TEMPERATURE (°C) 49
    MAXIMUM FLUID TEMPERATURE (°F) 120
    MINIMUM AIR INLET PRESSURE (BAR) 3.4
    MINIMUM AIR INLET PRESSURE (PSI) 50
    OVERALL HEIGHT (IN) 1.9
    OVERALL HEIGHT (MM) 48.3
    OVERALL LENGTH (IN) 5.9
    OVERALL LENGTH (MM) 150
    OVERALL WIDTH (IN) 1.63
    OVERALL WIDTH (MM) 41.4
    APPLICATION General
    TYPE Auto Gun
    APPLICATOR TYPE Automatic
    NEEDLE TIP MATERIAL PEEK
    FLUID ADJUSTMENT KNOB Optional
    SOUND POWER LEVEL (DB(A)) 88.82
    SOUND PRESSURE LEVEL (DB(A)) 78.91
    MAXIMUM FLUID WORKING PRESSURE (PSI) 300
    MAXIMUM FLUID WORKING PRESSURE (MPA) 2.1
    MAXIMUM FLUID WORKING PRESSURE (BAR) 21
    MAXIMUM FLOW RATE (OZ/MIN) 14
    MAXIMUM AIR PRESSURE (MPA) 0.7
    MINIMUM AIR INLET PRESSURE (MPA) 0.34
    GUN MODEL Stellair
    MANIFOLD TYPE Not Included
    NOZZLE SIZE (IN) 0.042
    NOZZLE SIZE (MM) 1.10
    GUN_SERIES Automatic

      Features

    • Conventional is the most widely used air spray method, producing Class A, automotive finish quality.
    • General industry air caps and nozzles produce a uniform, high quality spray pattern with a low atomising pressure.
    • The precise fluid flow control click knob with a true zero set point ensures accurate paint thicknesses.
    • The patented spray pattern alignment and pathing tool ensures accurate and repeatable spray angle. It is easily attached and detached from the gun to keep production moving.
    • The one piece fluid cartridge can be removed and replaced so quickly that it nearly eliminates maintenance related downtime.
    • The direct stainless steel fluid path cuts the amount of solvent needed to flush the gun, reducing VOC (volatile organic compound) emissions.
