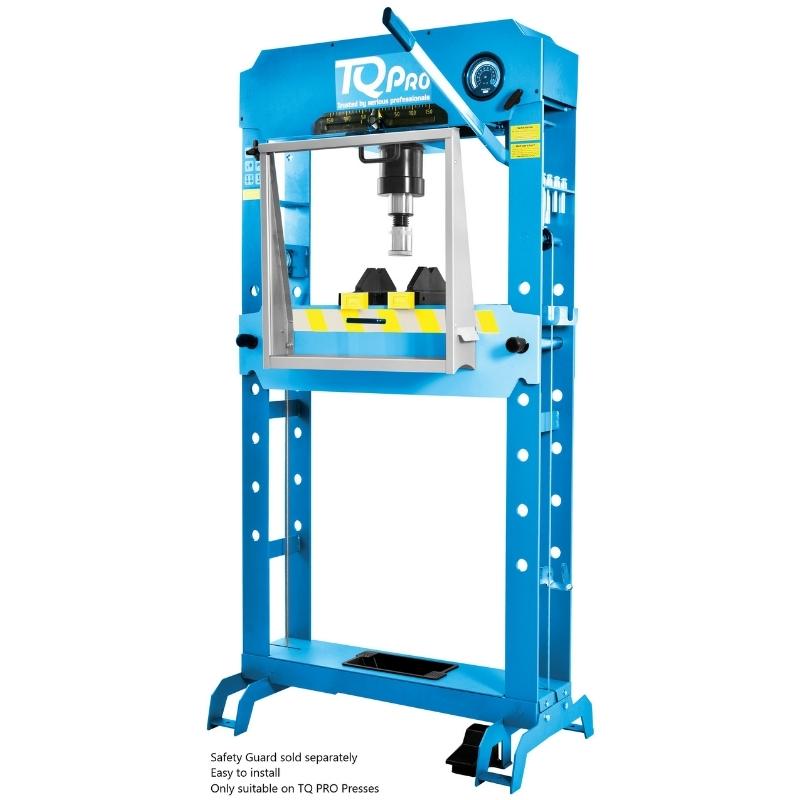

TQ PRO 50T Rated Air/Hydraulic Workshop Press

SKU PROSHPR50TA
Afterpay Zip PayPal LeaseGO
$6,936.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

This TQ Pro "Latest Technologies" 50,000kg Air Hydraulic Workshop Press is capable of bending, pressing or extruding and makes light work of installing ball joints, U-joints and pulleys - making it ideal for many automotive and industrial applications. Polished inner cylinder walls extend the life of the hydraulic seals to minimise abrasion and wear, while the cylinder ram and pistons are also polished and chromed, guided by high performance seals, wear rings and dust seals. Includes a dial gauge for dual metric/tons pressure readings. The strong frames and powerful high-pressure hydraulics will provide years of dependable service in many applications.

                        Features

                        Features

                      • Premium-grade steel built to exacting standards for quality and durability
                      • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
                      • Paint is oil, grease and dirt-resistant for easy clean up
                      • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
                      • Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility
                      • Foot Operated air trigger ram travel control
                      • Bed winch with swivel handle
                      • Integrated overload protection valve keeps from overloading the system
                      • Extra-long handle included for easy pumping force
                      • Foot pedal for pneumatic operation
                      • Handy removable parts tray
                      • Includes a set of mandrill pressing attachments
                        • Specifications
                      • Safe Working Capacity: 50,000kg
                      • Working Range: 80-780mm
                      • Overall Height: 1900mm
                      • Overall Width: 930mm
                      • Overall Depth: 535mm
                      • Bed Inside: 200mm
                      • Bed Width: 750mm
                      • Clear Pressing Space: 224 x 280mm
                      • Ram Sideways Movement: 300mm
                      • Piston Ram Stroke: 144mm
                      • Screw Adjustment: 75mm
                      • Ram Diameter: 68mm
                      • Bed Height Settings: 6
                      • Nett Weight: 243kg
                      • Crate: 1900 x 1000 x 450mm
                      • Gross Weight: 258kg
                        • Bleeding Instructions
