TQ PRO Single Stage Truck Jack Air Actuated 20,000kg
- Found a better deal? Message us to price match.
- Spread the cost with LeaseGO. .
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts

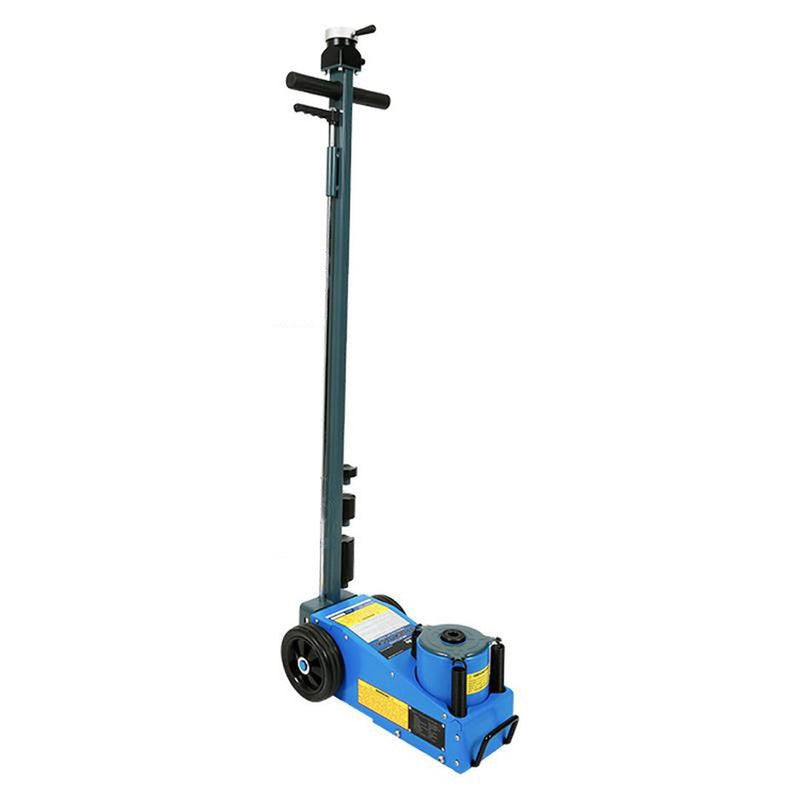

The TQ Pro Single Stage Air Actuated Truck Jack lifts to a 20,000 kg safe working capacity and is built to TQB Brands specification using CNC-machined and robot-welded components. The hydraulic pump uses wear-resistant American-made XTP double sealing ring technology and runs on hydraulic oil tested from -25 C to 60 C. Run from a 145 to 175 psi air supply, it features telescopic air actuation, a long T-handle, a self-returning lowering and lifting switch, hard-chromed internal and external cylinders, three saddle adaptors and large rubber wheels. A built-in safety valve prevents overloading. This jack must only be used on hard level surfaces and always with support stands; do not get under a load supported by a truck jack. TQ Pro tools and equipment are covered by a 12 month trade use warranty.
Features
American Seals: Seals made in America with a double sealing function using XTP industry sealing.
Air Actuation: Telescopic air actuation lift via an air-hydraulic pump.
T-Handle: Long T-handle positions the jack easily under the vehicle.
Control Switch: Self-returning lowering and lifting switch for full control.
Hard-Chromed Cylinders: Internal and external cylinders are hard chromed.
Manoeuvrability: High manoeuvrability and deep reach under vehicles.
Adaptors: Three extension adaptors / saddle plates, storable on each side of the jack for transport.
Wheels: Large rubber wheels.
Included accessories
Specifications
| Safe Working Capacity | 20,000kg |
|---|---|
| Maximum Height | 456mm |
| Minimum Height | 215mm |
| Hydraulic Lift | 141mm |
| Adjustable Screw | 85mm |
| Adaptors | 20, 50, 100mm |
| Handle Length | 1335mm |
| Operating Air Pressure | 145-175psi |
| Chassis | 520(L) x 215(H) x 258(W)mm |
| Nett Weight | 40kg |
| Carton | 580x290x260mm |
| Gross Weight | 42kg |
Lubrication Guide
Manual
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
