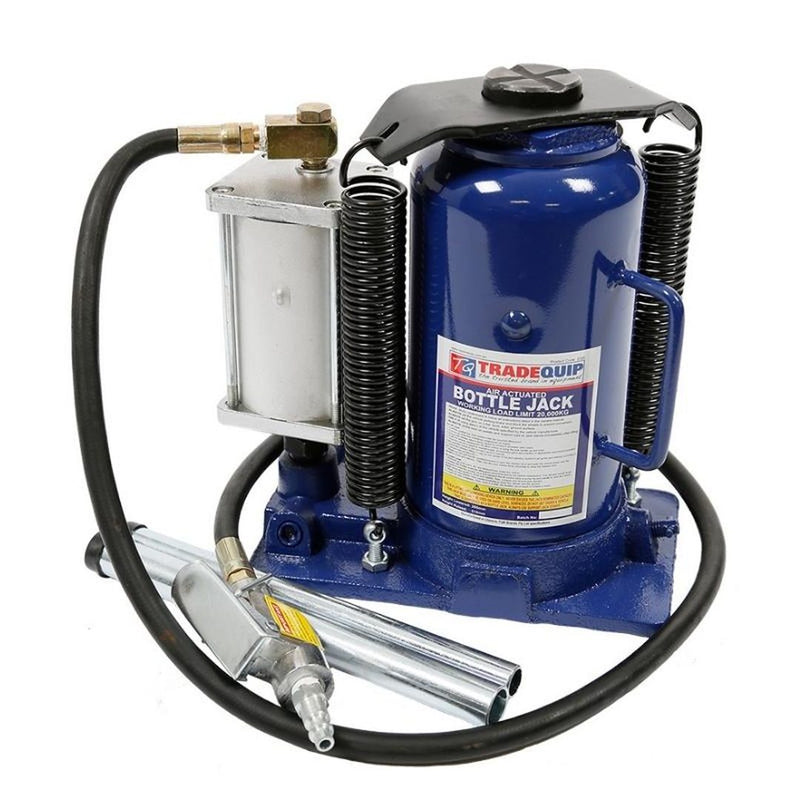

The TradeQuip air/manual bottle jack is designed to operate either manually or pneumatically, so the manual function allows normal operation anywhere, even without an air supply. Rated to 20,000kg, it delivers strong lifting for farm vehicles, trucks, heavy equipment and other large loads across a 265 to 430mm range, with a knurled, heat-treated pad and 100mm screw height adjustment to fine-tune the load. A 90-120psi air pressure supply provides fast pneumatic lifting, a built-in bypass device protects the hydraulic system from over-pumping, and a safety overload valve gently lowers the unit if it is overloaded. A rugged high grade steel frame with an oil, grease and dirt resistant lead-free paint finish stands up to daily use.
Features
Chrome Rams: All air bottle jacks have chrome plated rams.
Bypass Device: A built-in bypass device protects the hydraulic system from over-pumping damage.
Quick Connector: A quick connector design allows easy removal of the air hose for compact storage or remote operation.
Air Turbo Motor: A compact yet powerful Air Turbo motor.
Included accessories
Specifications
| Safe Working Capacity | 20,000kg |
|---|---|
| Minimum Height | 265mm |
| Maximum Height | 430mm |
| Hydraulic Lift | 185mm |
| Adjustable Height | 100mm |
| Base Area | 224 x 134mm |
| Work Pressure | 90-120psi |
