TRADEQUIP Air/Hydraulic Press 45T Rated

SKU: 2038T

TRADEQUIP Air/Hydraulic Press 45T Rated

Regular price $6,582.00 AUD
Sale price $6,582.00 AUD Regular price
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
Holiday Break Announcement Orders received from December 20 to January 5 will only be processed when we are back in office on the 6th of January.

Other payment options

View full details

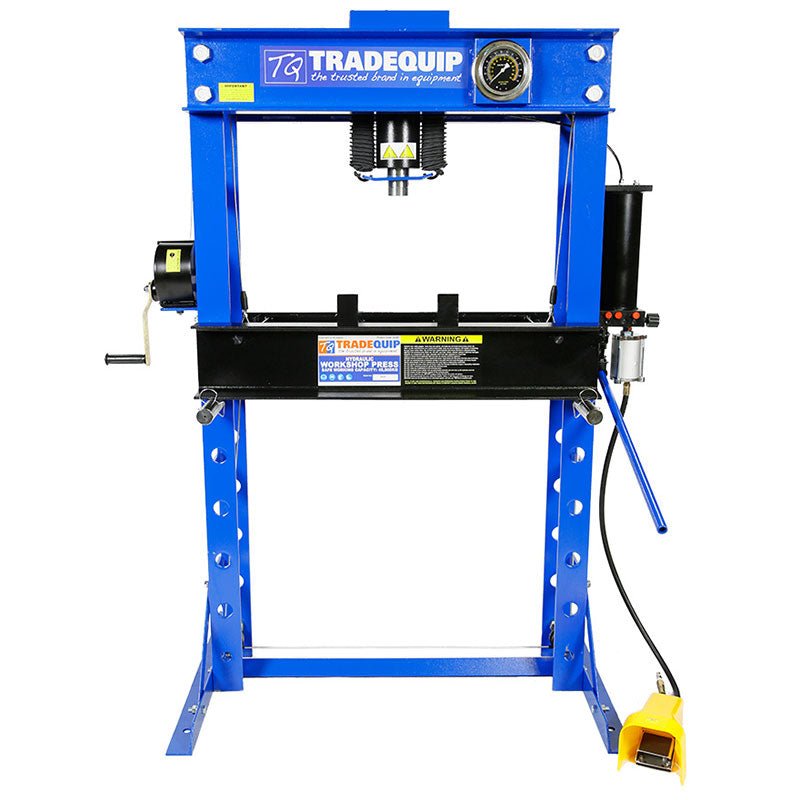

45,000kg Air Hydraulic Workshop Press

TRADEQUIP Air/Hydraulic Press 45T Rated

Regular price $6,582.00 AUD
Sale price $6,582.00 AUD Regular price
Save $0
Sold out

Details

Featuring an integrated overload protection valve, the hydraulic system features an onboard extra long handle for easy manual pumping force when not in pneumatic mode. For maximum safety and ease of use this air hydraulic system has been equipped with a foot operated air trigger for ultimate versatility. This TradeQuip "Made for the Trade" Workshop Press also becomes more efficient the most with it's smooth and safe hand winch for fast and easy press bed height adjustment and the double spring ram return for fast ram retraction. Designed with a superior quality oil filled dial gauge for accurate dual metric/tons pressure readings.  (Previous models include product code/s; TQHP50A)

Intended Use

Ideal for straightening, stamping, bending and pressing any component that is difficult to handle.

About the TradeQuip brand

The 'TradeQuip' brand of workshop equipment, is designed for use in a demanding workshop environment by professional users. With proven and trusted “Made for the Trade” reliability, 'TradeQuip'  branded products offer the very best in performance for an affordable price. All backed by a 1 year trade guarantee across 1,000+ distributors Australia wide.

Features

  • Heavy-duty frame constructed of high-grade steel and built to exacting standards for quality and durability
  • Foot operated air trigger ram travel control
  • 100mm pressure gauge
  • Polished pneumatic aluminium air motor with polyurethane double seal setup
  • Bed winch for easy raise and lower adjustment
  • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
  • Paint is oil, grease and dirt-resistant for easy cleanup
  • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
  • Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
  • Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
  • Includes hand winch for fast and easy press bed height adjustments
  • Integrated overload protection valve keeps from overloading the system
  • Double spring ram return for fast ram retraction
  • TradeQuip Air/Hydraulic Press 45T Rated

    Overview

    This "TradeQuip "Made for the Trade" 45,000kg Air Hydraulic Workshop Press is perfect for straightening, stamping, bending and pressing any component that is hard to handle. With it's very wide 826mm bed width and 195mm inside bed gap this press becomes one of the most diverse Workshop Press in the TradeQuip range. Polished inner cylinder walls extend the life of the hydraulic seals to minimise abrasion and wear. A polished and chromed cylinder ram and piston is guided by top quality performance seals, wear rings and dust seals. The ram is powered by a manual two-speed pump, and the non-slip bed winch features a steel cable roller for easy raising and lowering of the press bed.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    Specifications

  • Safe Working Capacity: 45,000kg
  • Working Range: 159-859mm
  • Overall Height: 1707mm
  • Overall Width: 1106mm
  • Overall Depth: 800mm
  • Bed Outside: 359mm
  • Bed Inside: 195mm
  • Bed Width: 826mm
  • Piston Ram Stroke: 190mm
  • Ram Diameter: 90mm
  • Bed Height Settings: 6
  • Operating Air Pressure: 110-125 psi
  • Nett Weight: 301kg
  • Carton: 1900 x 1040 x 500mm
  • Gross Weight: 340kg
    • Features

    • Heavy-duty frame constructed of high-grade steel and built to exacting standards for quality and durability
    • Foot operated air trigger ram travel control
    • 100mm pressure gauge
    • Polished pneumatic aluminium air motor with polyurethane double seal setup
    • Bed winch for easy raise and lower adjustment
    • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
    • Paint is oil, grease and dirt-resistant for easy cleanup
    • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
    • Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
    • Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
    • Includes hand winch for fast and easy press bed height adjustments
    • Integrated overload protection valve keeps from overloading the system
    • Double spring ram return for fast ram retraction
