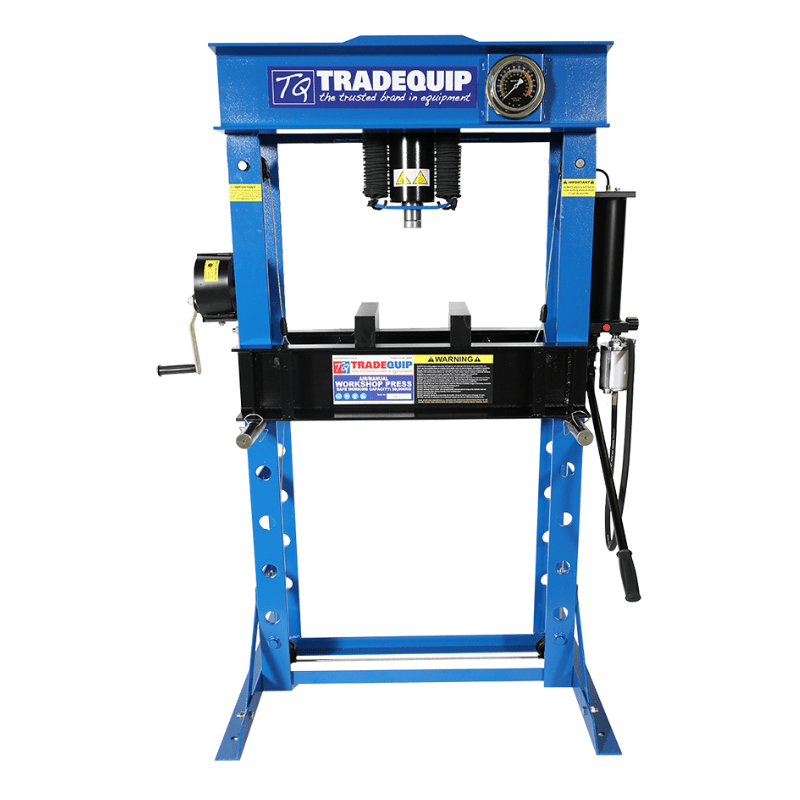

TRADEQUIP Professional Air/Hydraulic Press 50,000Kg

SKU 2048T
Afterpay Zip PayPal LeaseGO
$3,752.00
Tax included. Shipping calculated at checkout.
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Product details

Built for the work it does.

This "TradeQuip "Made for the Trade" 50,000kg Air/Manual Workshop Press is perfect for straightening, stamping, bending and pressing any component that is hard to handle.  With it's very wide 713mm bed width and 210mm inside bed gap this press becomes one of the most diverse Workshop Presses in the TradeQuip range. The ram is powered by a manual two-speed pump, and the non-slip bed winch features a steel cable roller for easy raising and lowering of the press bed.

Intended Use

Ideal for straightening, stamping, bending and pressing any component that is difficult to handle.

                          Features

                          Features

                        • Heavy-duty frame constructed of high-grade steel and built to exacting standards for quality and durability
                        • Hand operated air trigger ram travel control
                        • 100mm pressure gauge
                        • Polished pneumatic aluminium air motor
                        • Bed winch for easy raise and lower adjustment
                        • Lead-free paint finish is applied after a thorough chemical wash to ensure a long-lasting finish and to help prevent rust
                        • Paint is oil, grease and dirt-resistant for easy cleanup
                        • High quality large diameter hydraulic steel cylinder unit results in lower oil pressure needed to raise the load, helping to reduce wear and extend service life
                        • Piston-ram is treated and polished and fitted with backup ring, preventing load from falling slowly or bypassing oil drift
                        • Hydraulics are powered with a high quality oil, which offers better corrosion resistance and high/low temperature flexibility, allowing the unit to operate at temperatures
                        • Integrated overload protection valve keeps from overloading the system
                        • Double spring ram return for fast ram retraction
                          • Specifications
                        • Safe Working Capacity: 50,000kg
                        • Working Range: 137-837mm
                        • Overall Height: 1700mm
                        • Overall Width: 1290mm
                        • Overall Depth: 745mm
                        • Bed Outside:356mm
                        • Bed Inside:210mm
                        • Bed Width:713mm
                        • Piston Ram Stroke: 190mm
                        • Ram Diameter:95mm
                        • Bed Height Settings: 6
                        • Operating Air Pressure: 110-125 psi
                        • Nett Weight:271kg
                        • Carton: 1900 x 945 x 490mm
                        • Gross Weight:305kg
                          • Manual
