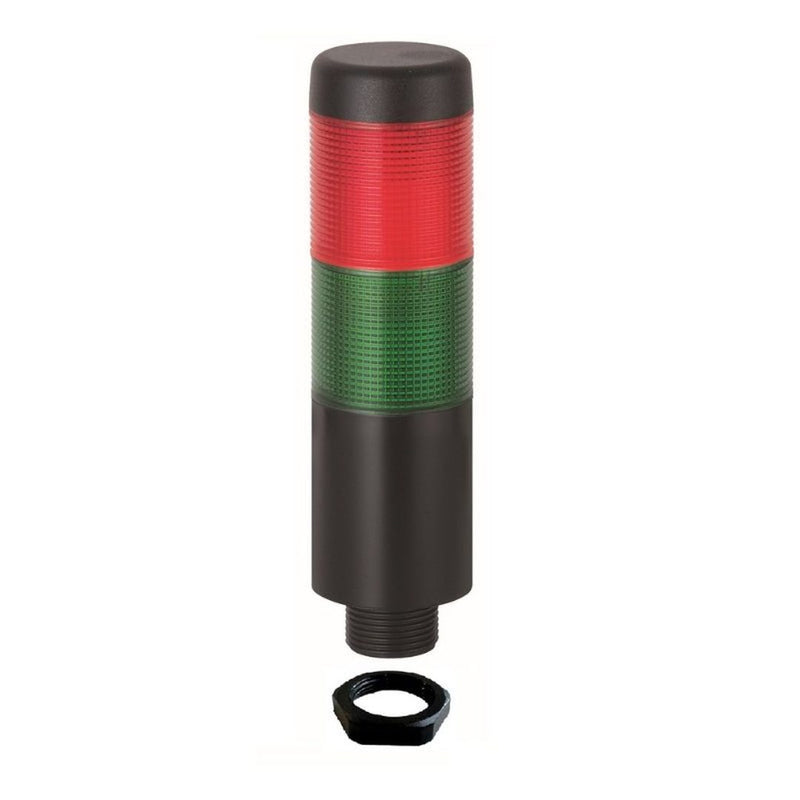

WERMA K37 Plug EM Pulse Tone Signal Tower

SKU: 699.220.75

WERMA K37 Plug EM Pulse Tone Signal Tower

$396.00 AUD
$396.00 AUD
Save $0
Sold out
Inclusive of GST. Shipping calculated at checkout.
stock
In stock and ready to ship or collect in 1 to 2 days. Delivery times vary as per courier.

Other payment options

Pickup available at GO Industrial

Usually ready in 2-4 days
View full details
WERMA K37 Plug EM Pulse Tone Signal Tower - GO Industrial - 699.220.75

WERMA K37 Plug EM Pulse Tone Signal Tower

$396.00 AUD
$396.00 AUD
Save $0
Sold out

WERMA K37 Plug EM Pulse Tone Signal Tower

    Overview

    Ready-configured signal tower with 2 optical stages and buzzer (green/red)
    • LED continuous light
    • 50,000 hours optical service life
    • Permanent signal image
    • 24V AC/DC
    • Pulse Tone
    • 85 dB max volume at 1m distance
    • M12 Plug 5-Pole Connector
    • 141mm height
    • 38mm diameter

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Shipping & Returns

    Our network of warehouses Australia-wide enables us to
    deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

    All returns must be pre-approved to ensure replacement and / or refund.

    Warranty

    Read our complete warranty terms & conditions here.

    Warranty

    Read our complete warranty terms & conditions here.

    Secure Payment

    All our online payment methods are secured.

    Secure Payment

    All our online payment methods are secured.

    • GO Data Sheet Werma K37 Signal Tower
    • GO Manual Werma K37 Signal Tower

    Specifications

    Mechanical Data

    Height 141 mm
    Diameter 38 mm
    Materials PC
    Dome colour Green
    Red
    Housing colour Black
    Protection category IP65
    Connection M12 plug 5-pole
    Cable entry Membrane grommet
    Cable entry minimum d = 1 mm
    Cable entry maximum d = 9 mm
    Cable length 150 mm
    Tension relief Pull-out protection
    Type of fixing Built-in mounting
    Working temperature minimum -20°C
    Working temperature maximum +50°C
    Weight with packaging 122 g
    Product weight 79 g



    Electrical Data

    Operating voltage 24V
    Operating voltage type AC/DC
    Operating voltage frequency 50Hz
    Operating voltage tolerance +/- 10%
    Rated operational voltage 24 VDC
    Rated operational current 95 mA
    Rated inrush current 500 mA
    Protection class Protection class 2
    Pollution degree 3 / In the connection area: 2



    Optical Data

    Light source LED
    Light colour Green / Red
    Optical signal image Permanent
    Service life optical 50,000 h maximum



    Acoustic Data

    Volume (max) at 1m distance 85,0 dB (A)
    Acoustic signal image Pulse tone
    Audio frequency 2900 Hz
    Acoustic service life 5,000 h minimum



    Approval Data

    Conforms with CE Yes
    Conforms with RoHS directive Yes
    WEEE Yes
    Conforms with ATEX-directive No
    Conforms with CCC No
    Conforms with UL cULus
    UL Type Rating Type 12
    Type 4X
    Conforms with FCC No
    Conforms with IC No
    EAC certificate available Yes
    Conforms with UKCA (Importer) Yes (WERMA (UK) Ltd.)
    Conforms with AS-I No
    ICAO Certification No
    Conforms with DNV No
    Conforms with RoHS CN No
    Conforms with VdS No
