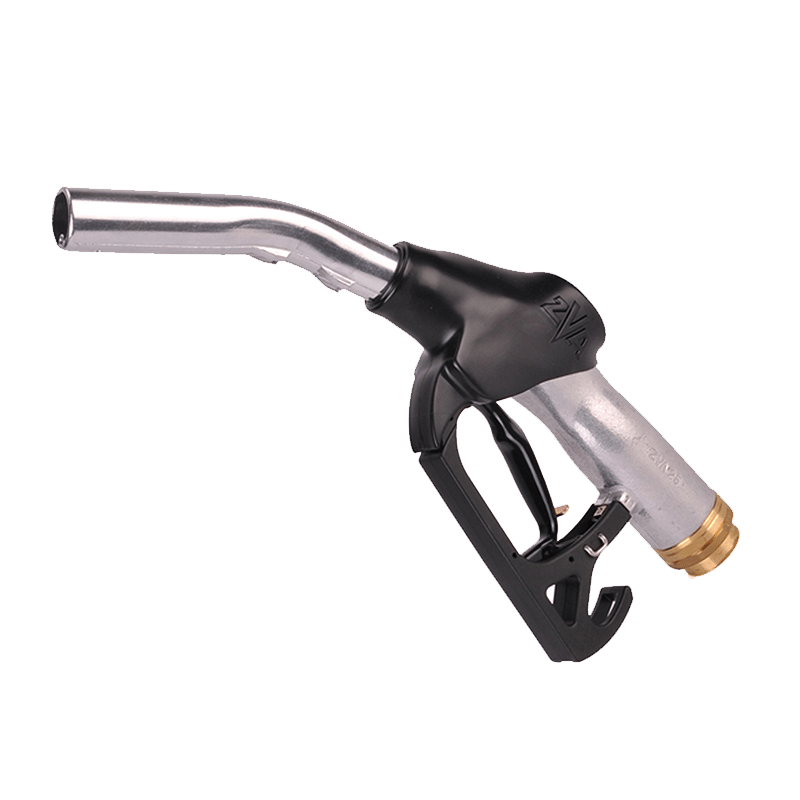

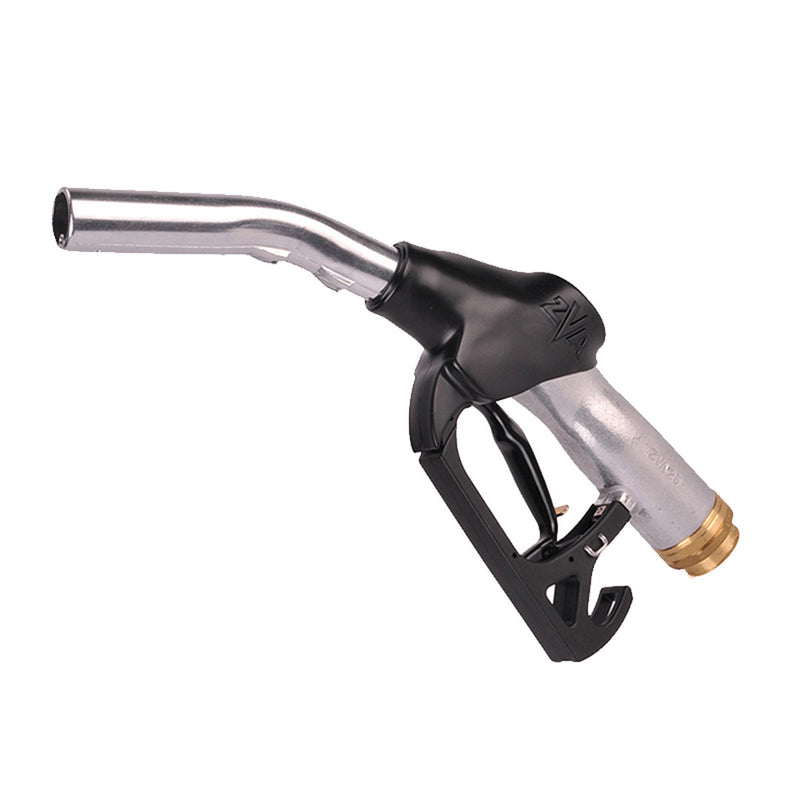

The ZVA 25 automatic shut-off nozzle is a heavy duty diesel and petrol nozzle approved for refuelling in resale pumping applications.
A sensor in the spout detects when the vehicle tank is full and shuts the nozzle off before fuel spills. At up to 140 litres per minute it is a high-flow nozzle, suited to fill points where large volumes of diesel or petrol go out at a time and a retail-speed nozzle would hold up the queue.
ZVA nozzles are a widely recognised forecourt-style design, known for careful engineering and sturdy manufacturing. This model carries a three-stage stay-open latch, a style 4 trigger guard and a black scuff guard for nozzle protection. It is rated for petrol, diesel, fuel oil, petroleum, Avgas and Jet A-1, and is not suitable for viscous oils or water.
Features
- Venturi Automatic Shut-Off: A sensor in the spout closes the valve the moment the tank fills, which keeps fuel out of the drain and off the operator.
- 140 L/min Flow: A high-flow DN 25 nozzle built for filling trucks and plant where a retail-speed nozzle would hold the queue up.
- Built-In Check Valve: Holds the hose full between fills so the next operator gets flow straight away.
- 3-Stage Lever Latch: Three hold-open positions with a removable latch pin, so flow can be matched to the filler neck.
- Safety Cut-Out Attitude Valve: Shuts the nozzle down if it is dropped or ends up at the wrong angle mid-fill.
- Certified For Resale And Hazardous Areas: Meets EN 13012 and carries ATEX II 1G and TUV approval for use on measuring installations.
- Aluminium Body With Scuff Cover: An aluminium body and spout under a soft-PVC cover that takes the knocks around a truck fill point.
Specifications
| MAXIMUM FLOW RATE | 140 L/MIN | 37 GPM |
|---|---|
| WORKING PRESSURE | 0.5 TO 3.5 BAR | UP TO 5 BAR WITH STRONGER MAIN VALVE SPRING |
| NOMINAL SIZE | DN 25 (1 IN) |
| HOSE INLET | 1 IN BSP FEMALE SWIVEL, WITH PRESSURE FLUSHING |
| SPOUT OUTSIDE DIAMETER | 31 MM | 1.22 IN |
| SHUT-OFF | Venturi automatic, with safety cut-out attitude valve |
| LATCH | 3-stage lever latch with removable latch pin |
| GUARD | Style 4 trigger guard with black soft-PVC scuff cover |
| STRAINER | EK 372, 25 mesh |
| WEIGHT | 1.5 KG | 3.3 LB |
| BODY AND SPOUT | Aluminium |
| INTERNAL PARTS | Stainless steel, bronze and acetal resin, hot-stamped brass swivel |
| SEALS | NBR and polyurethane |
| SUITABLE FLUIDS | Petrol, diesel, fuel oil, petroleum, Avgas, Jet A-1 |
| NOT SUITABLE FOR | Viscous oils and water |
| APPROVALS | EN 13012, ATEX II 1G certificate SIRA 03ATEX9487U, TUV P-TU7-00512 |
