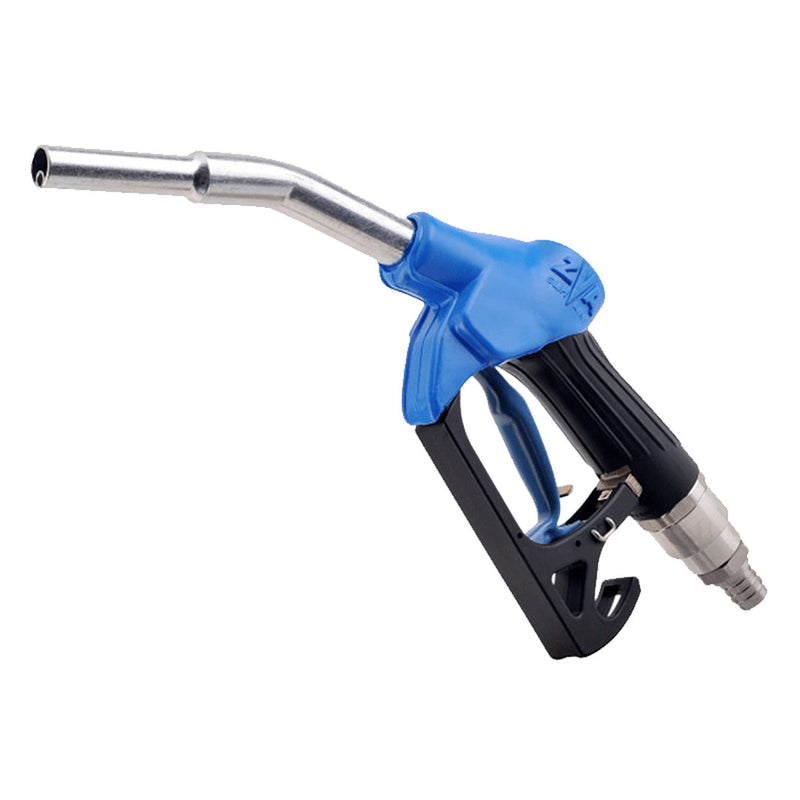

ELAFLEX AdBlue Automatic Nozzle ZVA 4.0 AB
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
The automatic shut-off ZVA AdBlue nozzle is designed to dispense urea, otherwise known as DEF, and water in conjunction with a Piusi or ZVA Elafix 40 magnetic adaptor. The nozzle's spout sensors only allow fluid to pass once it has been magnetically opened by the adaptor fitted within the vehicle fill point.
These AdBlue nozzles are designed to prevent misfilling AdBlue into a diesel tank and will only work in this configuration. If the vehicle does not have the magnetic adaptor, no flow through the nozzle is allowed, and the adaptor is not included.
Features
- Automatic Nozzle: An automatic AdBlue nozzle with shut-off.
- Flow Rate: Maximum flow rate of 40 L/min.
- Fluid Suitability: Suitable for urea and water.
- Swivel Supplied: Supplied with a 3/4 inch hose barb swivel.
- Adaptor Required: Must be used with a Piusi or ZVA magnetic adaptor.
Included accessories
Specifications
| MAX FLOW RATE | 40 L/MIN |
|---|---|
| MAX PRESSURE | 3.5 BAR |
| SPOUT OD | 19 MM |
| INLET | 3/4 inch |
| SHUT-OFF | Automatic with safety cut-out ball valve and check valve |
| LATCH | 3-speed lever latch with removable latch pin EB 280 |
| STRAINER | EK 172 |
| BODY | Aluminium, nickel plated and transparent plastic coated |
| SPOUT | Aluminium with magnetic switch |
| INNER PARTS | Stainless steel and plastic, hose inlet stainless steel |
| SEALS | NBR / PU |
