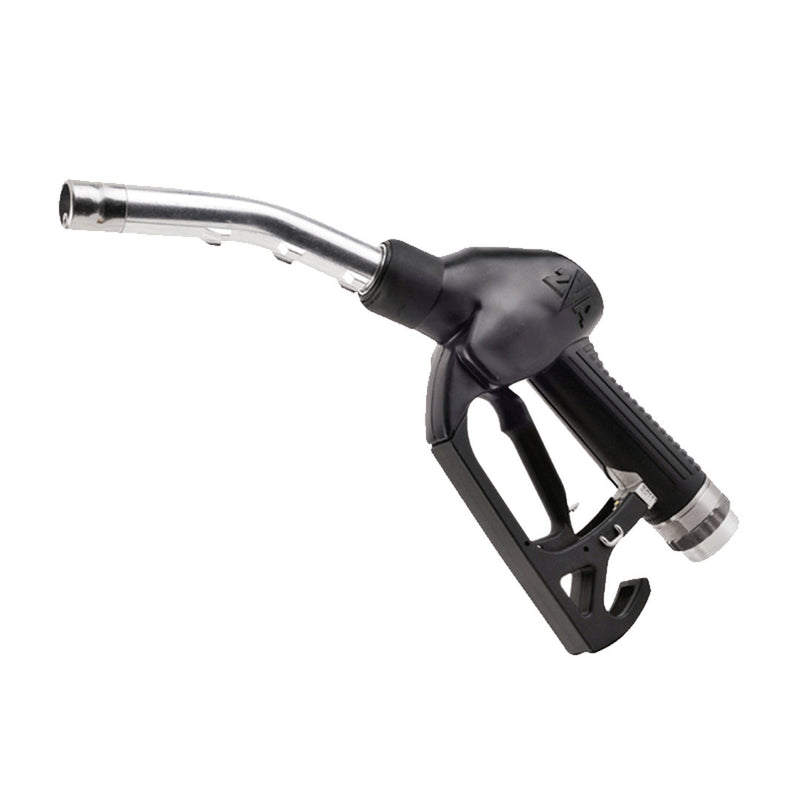

ELAFLEX ZVA Slimline 2 Automatic Nozzle with Swivel ULP 50lpm ZVA2 4.1 R Blk
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The ZVA Slimline 2 Automatic Nozzle is a high quality, heavy duty automatic shut off unleaded (ulp) nozzle approved for refuelling in resale pumping applications as well as flammable environments.
Designed to automatically shut off when the vehicle tank is full, this quality, made in Germany, fuel nozzle prevents an overspill situation from occurring. The ZVA Slimline 2 is supplied as standard with a No 4 trigger guard for safety and durability.
ZVA nozzles, from GO Industrial, are a widely recognised brand of forecourt (retail) style nozzle, known throughout the world for their sturdy construction and ease of handling.
Features
- Venturi Automatic Shut-Off: A sensor in the spout closes the valve the moment the tank fills, keeping fuel off the ground and the operator.
- Built-In Check Valve: Holds the hose full between fills so the next operator gets flow straight away.
- 3-Stage Lever Latch: Three hold-open positions with a removable latch pin, so flow can be matched to the filler neck.
- Safety Cut-Out Attitude Valve: Shuts the nozzle down if it is dropped or ends up at the wrong angle mid-fill.
- Certified For Resale And Hazardous Areas: Meets EN 13012 and carries ATEX II 1G approval for use on measuring installations.
- Slimline And Light: At 1.1 kg it is noticeably lighter in the hand than a DN 25 nozzle across a busy shift.
Specifications
| MAXIMUM FLOW RATE | 50 L/MIN | 13 GPM |
|---|---|
| NOMINAL SIZE | DN 19 with reduced DN 16 'R' spout |
| WORKING PRESSURE | 0.5 TO 4 BAR |
| HOSE INLET | 1 IN BSP FEMALE SWIVEL |
| SUITABLE FLUIDS | Unleaded petrol, diesel, fuel oil, petroleum |
| SHUT-OFF | Venturi automatic, with safety cut-out attitude valve |
| LATCH | 3-stage lever latch with removable latch pin |
| GUARD | Style 4 trigger guard |
| WEIGHT | 1.1 KG | 2.4 LB |
| BODY AND HOSE INLET | Aluminium |
| SPOUT | Aluminium and stainless steel |
| SWIVEL | Stainless steel |
| SEALS | Polyurethane and NBR |
| NOT SUITABLE FOR | Viscous oils |
| APPROVALS | EN 13012, ATEX II 1G certificate SIRA 03ATEX9487U, PTB III B/S 1080 |
Data Sheet
