Built for the work it does.

Overview

*Please note, the new Neon Yellow tips are being introduced in Australia. Existing stock will be a mix of the original green, and new yellow tips. There are no performance or quality differences between the tips, purely colour.

Spray at up to 50% lower pressure with the Reverse-A-Clean (RAC) 517 Low Pressure (LP) RAC X SwitchTip. This low pressure tip produces a 10 to 12 inch fan pattern and has a 0.017 inch orifice. Reverse the SwitchTip to easily clear clogs.

For large surface areas such as walls and ceilings

Features

Low Pressure (LP) Tips

Breakthrough low pressure SmartTip Technology, engineered to deliver the industry's best finish.

Featuring the patented Graco RAC X Tip with SmartTip Technology and exclusive internal tip geometry which delivers the industry's best finish at low airless spray pressure!

Sprays at up to 50% lower pressure

Less overspray

Easiest pattern overlap

Reduces prep & cleanup time

Up to 2X life

SmartTip Technology is designed to work with Graco's exclusive SmartControl Pressure Management System to deliver a superior spray fan without pressure fluctuations – at all spraying pressures!

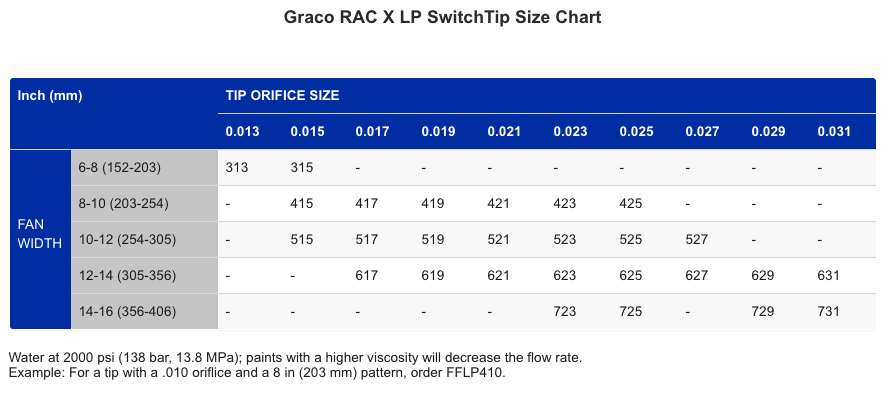

Specifications

FAN WIDTH	TIP ORIFICE SIZE
Inch (mm)	0.013	0.015	0.017	0.019	0.021	0.023	0.025	0.027	0.029	0.031
6-8 (152-203)	313	315	-	-	-	-	-	-	-	-
8-10 (203-254)	-	415	417	419	421	423	425	-	-	-
10-12 (254-305)	-	515	517	519	521	523	525	527	-	-
12-14 (305-356)	-	-	617	619	621	623	625	627	629	631
14-16 (356-406)	-	-	-	-	-	723	725	-	729	731

Water at 2000 psi (138 bar, 13.8 MPa); paints with a higher viscosity will decrease the flow rate.

Example: For a tip with a .010 oriflice and a 8 in (203 mm) pattern, order FFLP410.
