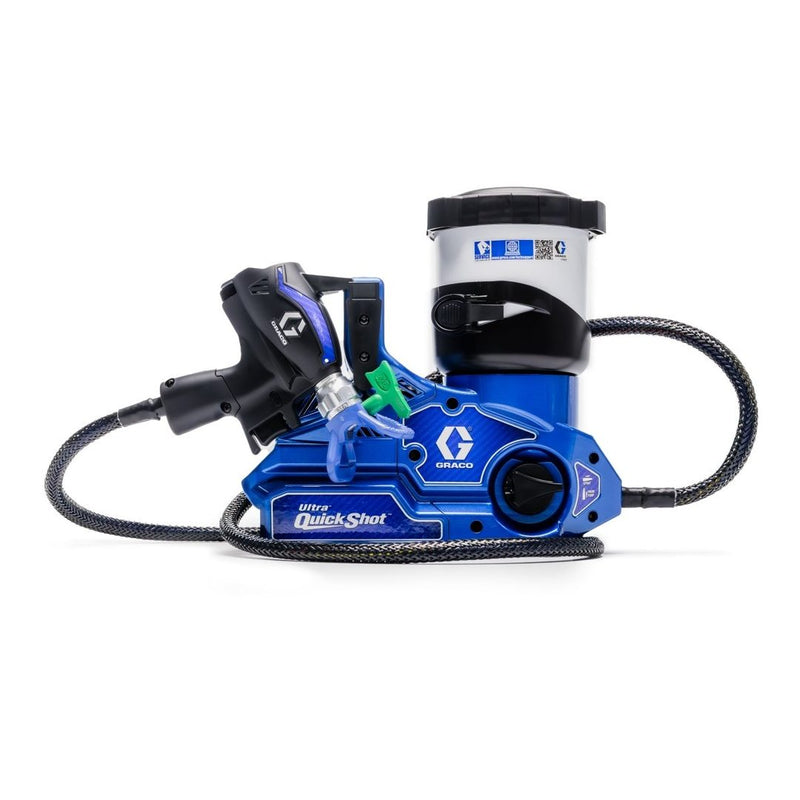

GRACO Ultra QuickShot Portable Airless Paint Sprayer
SKU 20B479
Bonus Goods With Purchase
$1,699.00
$2,368.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Frequently bought together
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Product details
Built for the work it does.
The Ultra QuickShot is breakthrough technology, designed to deliver higher quality and provide results faster. Created for the perfect airless finish, while virtually eliminating spits. Built with extreme spray control to quickly adjust pressure for every application. The industry's most portable sprayer gives you the ability to spray in the tightest of areas with precision and the highest control.
EOFY Free Bonus Goods:
Looking for the latest model? Shop the GRACO Ultra QuickShot II Portable Airless Sprayer.
Features
Features

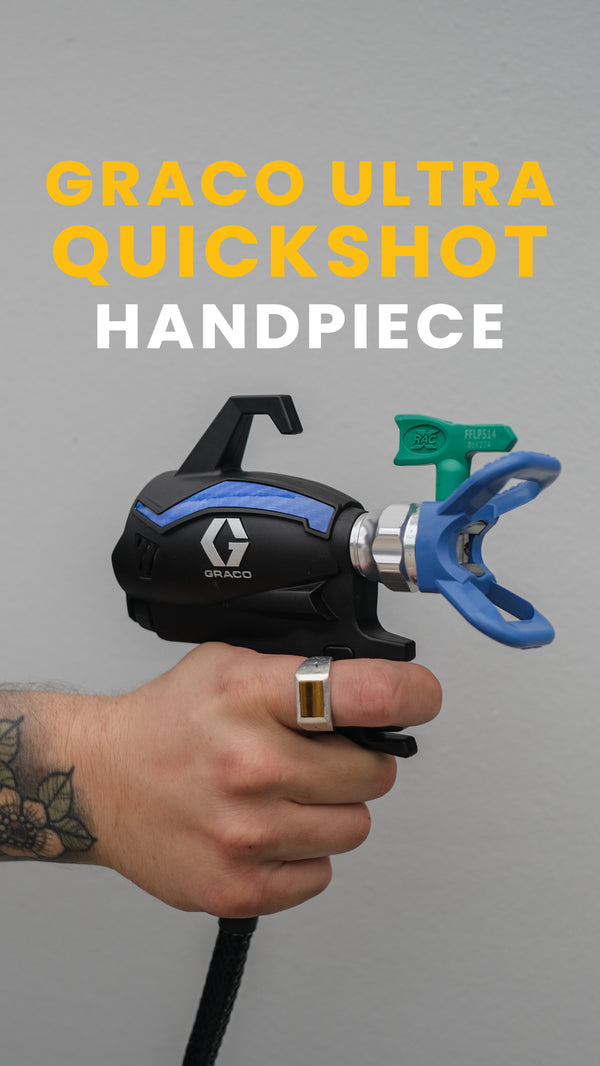

Instant Response Electric Powered Gun Virtually Eliminates Spits
- Reduce fatigue with industry's lightest trigger pull
- Smallest, lightest airless gun ever built
- Responds instantly to produce the best finish
On-Demand Precision Flow-Control System
- Quickly adjust material flow for extreme airless spray control
- Easy dial-in your desired pressure from 100-2,000 psi
6ft Flexible Hose For Full Reach & Easy Hose Management
- Easily prime, change colours, and clean in seconds
- Gun and hose hold only 1 oz (30mL) of coating
QuickShot ProConnect Airless Piston Pump
- Durable long-life triple piston pump
32 oz (950mL) Pour-N-Go Cup
- Easy fill design - refill on your hip
- Spray small amounts FAST
Power to Take on Every Small Job
- Comes with two DeWalt 18V Lithium-ion batteries
- Spray up to 4L on each battery
Ultimate Hands-Free Portability with Belt and Holster Attachment
Included accessories
Specifications
| Battery Voltage (V) | 18V |
|---|---|
| Maximum Operating Temperature (°C) | 32 |
| Maximum Storage Temperature (°C) | 45 |
| Maximum Tip Size (in) | .016 |
| Maximum Working Pressure (MPa) | 14 |
| Maximum Working Pressure (bar) | 138 |
| Maximum Working Pressure (psi) | 2000 |
| Minimum Operating Temperature (°C) | 4 |
| Minimum Storage Temperature (°C) | 0 |
| Model | Ultra |
| Overall Height (mm) | 267 |
| Overall Length (mm) | 305 |
| Overall Width (mm) | 152 |
| Power Source | Battery Powered |
| Series | QuickShot |
| Sound Pressure Level (dB(A)) | 83 |
| Type | Airless Spray Package |
| Weight (kg) | 2.9 |
Warranty
Data Sheet
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Watch on the job
Field videos & walkthroughs.
More videos
Tap a thumbnail to switch the main player.
-
Video 1 -
Video 2 -
Video 3
FAQs
Common questions.
What type of projects is this sprayer best for?
This unit is the ideal portable airless paint sprayer. Think spraying woodwork, trim, sections of gutters, fencing, garage doors, handrails, furniture, small ceilings in rooms; the list goes on. Keep in mind that the paint capacity is 950mL, so if you’re tackling a larger project with multiple rooms, or an entire exterior repaint, you will be better off checking out our range of professional airless sprayers, such as the Graco 190PC Express or 390PC.
How much paint can I spray on one charge of the battery?
With the included 18V Slimline DeWalt battery, you can expect up to 3.8L of spraying per charge. This will increase or decrease depending on the pressure of the sprayer, and the thickness of the paint you’re spraying. Ensure you’re using the correct Fine Finish Low Pressure tip, and lowest pressure possible, to extend battery life.
Does the QuickShot spit when I spray?
This sprayer is the first of its kind with an instant response electric powered gun, which eliminates spits. As the trigger and needle are not mechanically actuated, there’s no issues with paint building and spitting in the mechanism. Although it is is an electric trigger, it doesn’t change that all-familiar feeling and technique of spraying airless with a standard gun; you just get the benefit of no spitting! Perfect for triggering on-and-off for intricate work with plenty of spray passes.
Is it a hard sprayer to clean?
Not at all! With a 950mL cup and 1.8M hose, the QuickShot flushes very quickly with water. You can wipe out the Pour-N-Go cup, which easily disconnects from the housing, and continue to flush with water. For short term and long term storage, we highly recommend priming the unit with Graco’s Pump Armour to avoid corrosion and paint drying in the pump assembly.
What type of paints spray best through the QuickShot?
It’ll handle a pretty wide range of paints before having troubles! All of your standard architectural coatings: undercoats, primers, sealers, water-based interior acrylics, water-based exterior acrylics, water-based enamels, oil-based enamels, lacquers, stains, polyurethanes and ceiling flats. The QuickShot will also handle low viscosity solvent-based materials, like some polyurethanes, industrial enamels and primers. Try to avoid paints with a pot life of less than 1 hour to avoid any heart ache. The unit will not handle roofing membrane or viscous protective coatings.
Do I need to thin the paint?
Not at all! The Graco Ultra QuickShot handles thick interior and exterior acrylics without thinning. Pour the paint straight into the Pour-n-Go cup, prime and get spraying straight away. Airless sprayers, and durable piston pumps handle thick materials at a high pressure very effectively; this is what you’re paying for in comparison to air/turbine sprayers that struggle to spray standard paints. Not thinning paints is detrimental to your final result - giving you a more vibrant, vivid result, achieving a solid film-build to last for years. If you’re looking to achieve the best sheen and finish quality possible for interior or exterior walls, you can thin your paint up to 5% to improve atomisation. If you’re unsure whether your paint can be sprayed, get in touch with the GO team who can help specify the right equipment for your job!
How long does it take to get my new QuickShot?
GO holds a large amount of Graco Ultra QuickShot sprayers in our Melbourne and Brisbane warehouses. For QLD and VIC metro, the shipping time is 1-2 days. For Sydney, Northern Rivers and East Coast suburbs, our transit time is 2-4 days. For WA painters and renovators, GO has a click-and-collect location in Rockingham, WA and takes 4-5 days to ship. If you have any specific questions or chasing an accurate transit time, please get in touch with the team!
What is the GO with service & warranty?
GO Industrial is Graco’s major national distributor, service & warranty centre. GO backs our equipment on the field 110%, with servicing and repair capabilities nationwide to provide you with peace of mind. The Graco Ultra QuickShot has a 12 month warranty on the fluid pump and motor. GO offer above-and-beyond support across job advice, troubleshooting and warranty support. If you have any questions or concerns, our technical team are on-hand to help!
Why should I shop from GO Industrial?
GO are dedicated equipment specialists. Our business is built on Reliable Gear from Reliable People. Our team are passionate airless-spraying fanatics; we love getting involved with renovations, weekend projects and learning more about what our paint community are undertaking. We’re constantly creating project guides, tutorials, troubleshooting support, and inspiring content to give back to the paint community that has helped build our business. Our aim of the game is to provide valuable information, the gear you need to get the job done, and get it to you as fast as possible. We support your equipment well-and-truly after the sale, and love to hear your feedback and see your transformations from your project. If you have questions about our team, process, or how we GO about our day, reach out!
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
