GRACO LineLazer V 250MMA 98:2 HP Reflective Series Airless Line Striper
SKU 17G589
$136,600.00
Tax included. Shipping calculated at checkout.
No stock main warehouse, contact for lead time
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.

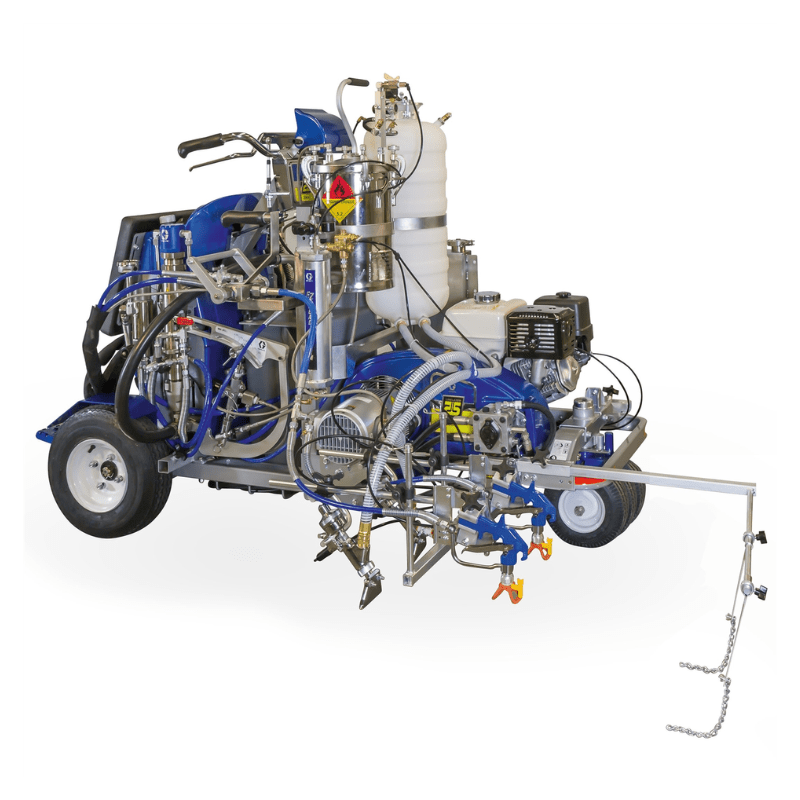

The Graco LineLazer V 250MMA 98:2 with 1 gun is a reliable solution that delivers superior MMA 98:2 performance and guarantees ratio assurance in a stand-on, self-propelled package. Unit shown with optional 2nd gun.
Features
Features
Exclusive 98:2 Mixing System
- On-board storage tanks for MMA, BPO and solvent
- Exclusive hard-connect MMA and BPO pump design
- Engineered fro superior ratio control, from 1.5% to 4.0%
- Integrated mix hose for consistency in material mixing
- Ratio assurance system and mix-manifold for outstanding performance
Automatic Gun Control System
- Manual or automatic paint and bead guns with the push of a button
Graco Hydraulic Motor System
- No-stall hydraulic motor for uninterrupted performance
BPO Stainless Steel Pump and Tank
- Engineered for superior ratio control, from 1.5 to 4.0%
- Polyethylene tank liners available for quick color change and easy clean up
- 7 Liter capacity
Pressurized Bead System
- Consistent pressurized delivery of beads
Honda® GX Engine
- Industry proven performance with the most demanded engine by contractors
57 Liter Resin Feed Hopper
- Extended striping time with large capacity hopper
- Easy to service and clean
Endurance Piston Pump System
- Long life pump provides precise flow for striping with MMA
Solvent Flush System
- 2 gallon reservoir and air-operated double diaphragm pump provides pressurized flushing capability of manifold, hose assembly and gun
Additional Features
- Rear Gun Mount System
- Self-Centering Front Wheel
- Mix Manifold
Specifications
| Fuel Tank Capacity (gal) | 1.4 |
|---|---|
| Fuel Tank Capacity (L) | 5.3 |
| Gun Activation | Automatic |
| Hopper Volume Capacity (gal) | 15 |
| Hopper Volume Capacity (L) | 57 |
| Maximum Flow Rate (GPM) | 2.5 |
| Maximum Flow Rate (L/min) | 9.5 |
| Maximum Sound Pressure Level (dB(A)) | 89.1 |
| Maximum Tip Size (cm) | 0.1397 |
| Maximum Tip Size (in) | 0.055 |
| Maximum Tip Size (mm) | 1.3970 |
| Maximum Working Pressure (bar) | 207 |
| Maximum Working Pressure (kPa) | 2070 |
| Maximum Working Pressure (psi) | 3000 |
| Model | LineLazer V |
| Overall Height (cm) | 141.5 |
| Overall Height (in) | 55.7 |
| Overall Height (mm) | 1414.8 |
| Overall Length (cm) | 186.7 |
| Overall Length (in) | 73.5 |
| Overall Length (mm) | 1866.9 |
| Overall Width (cm) | 83.8 |
| Overall Width (in) | 33 |
| Overall Width (mm) | 838 |
| Power Rating (HP) | 11.9 |
| Power Rating (kW) | 8.8 |
| Pump Type | Endurance |
| Series | 200MMA |
| Weight (kg) | 405 |
| Weight (lb) | 893 |
| Type | Walk-Behind Line Striper |
| Power Source | Gas Hydraulic |
| Bead Tank Size (lb) | 120 |
| Product Series | HP Reflective |
Warranty
Manuals
- Graco Manual Operation Single Acting and Double Acting Bead Spray Guns 308612EN-N
- Graco Manual Operation LineLazer V 250MMA 98-2 Self-Propelled Line Striper 3A3111EN-J
- Graco Manual Instruction Fuse Installation for LineLazer V 250SPS and 250DC 3A5189EN-A
- Graco Manual High Pressure Fluid Line Ball Valve 306861EN-ZAF
- GO Manual Instructions Parts List Graco Low-Pressure Ball Valves 307068EN-V
- Graco Manual Instruction Low-Pressure Ball Valves 307628EN-T
- Graco Manual Instruction Stainless Steel 2-Gallon Pressure Tanks 308370EN-W
- GO Instructions Graco Parts List for Texture Airless Spray Gun 308491EN-U
- Graco Manual Instructions Displacement Pump 309277EN-ZAJ
- Graco Manual LineLazer IV 250DC Self-Propelled Lin Striper 334224EN-A
- GO Manual Operation Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper 3A3393EN-D
- GO Manual Repair Parts Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper Part1 3A3394EN-K
- GO Manual Repair Parts Graco LineLazer V 250SPS and 250DC Self-Propelled Line Striper Part2 3A3394EN-K
- GO Manual Graco LineLazer Application Methods 3A3428EN-B
