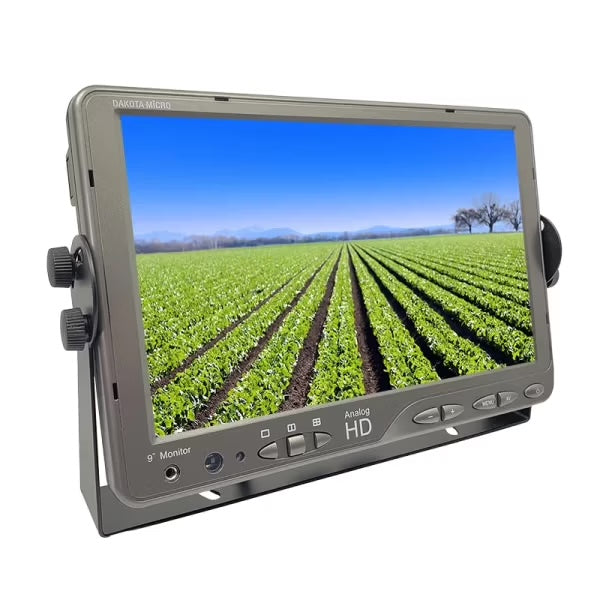

DAKOTA MICRO AHD 9 Inch Monitor, Single View - GO Industrial - DM-H9

DAKOTA MICRO AHD 9 Inch Monitor, Single or Quad View

SKU DM-H9
Afterpay Zip PayPal LeaseGO
$1,512.50
Tax included.
Display
Quantity
Contact for pricing
No stock main warehouse, contact for lead time

Get a shipping estimate

The same live rates you'll see at checkout, for this item.

DAKOTA MICRO AHD 9 Inch Monitor, Single or Quad View · Qty 1

Estimate inc GST for this item plus anything already in your cart. Your final rate is confirmed at checkout.

Need it palletised or delivered to site? Chat with us.

Calculate your LeaseGO repayments

Spread the cost over 24, 36 or 48 months with simple monthly payments.

Business customers only. LeaseGO finance is available to businesses with an active ABN. It isn't available for personal or household purchases.

$
Pick a term that suits your cash flow
24 months
Per month-
Per week-
Per day-
36 months
Per month-
Per week-
Per day-
48 months
Per month-
Per week-
Per day-

Terms and conditions apply, subject to suitability assessment. Prices quoted are indicative only and payable monthly in advance over the chosen term. $99 Establishment Fee payable upon commencement ($79 under $1,500). Visit LeaseGo.com.au to learn more.

Scan or click here to apply now with LeaseGo

Apply in minutes with your mobile, licence and ABN, then give your approval number to the GO team.

Apply now
LeaseGo application QR code

Same-day dispatch

In-stock orders by 2pm AEST

Australia-wide delivery

Direct to your job from Brisbane

Authorised service

In-house warranty + repairs

Trade pricing for all

No trade-only accounts

Frequently bought together

Bundle the essentials.

Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.

Total price
Product details

9 inch in-cab monitor for camera systems on long line paint trucks and road marking units. It takes up to four cameras, so the operator can watch the guns, bead drop and line from the cab.

Single View shows one camera at a time and switches automatically to a set camera when its trigger wire goes live, such as when the truck is put in reverse. Quad View shows one, two or four cameras on screen at once.

Imported from the USA to order and air freighted. Chat with us for the current lead time or help putting a camera package together.

Features
  • Analog HD (AHD) display, 1024 x 600 resolution, 16:9 LED backlit panel
  • Four camera inputs, takes AHD and CVBS cameras in NTSC or PAL
  • Quad View shows 1, 2 or 4 cameras at once; Single View switches between cameras
  • Trigger wire on each camera input brings that camera to full screen automatically
  • Mirror any camera for use as a reversing camera
  • Remote control, sunshade, U-bracket and 12V plug-in power lead included
  • Hardwire power adapter available for a permanent install
  • 2 year manufacturer's warranty
Included accessories

Cameras and extension cables are sold separately.

  • AHD 9 inch monitor
  • Monitor wire harness with four camera inputs and trigger wires
  • Remote control
  • Sunshade
  • U-bracket and mounting hardware
  • 12V auxiliary (cigarette lighter) power adapter
Specifications
Single View (DM-H9)Quad View (DM-H9Q)
Screen9 inch, 16:9, LED backlit9 inch, 16:9, LED backlit
Resolution1024 x 6001024 x 600
Cameras on screen1 at a time1, 2 or 4 at once
Camera inputs44
Video signalAHD and CVBS, NTSC/PAL auto switchAHD and CVBS, NTSC/PAL auto switch
Video output1 x RCA (CVBS)1 x RCA (CVBS)
Brightness350 cd/m2550 cd/m2
Contrast500:1500:1
Viewing angleL/R 70°, up 50°, down 70°L/R 65°, up 55°, down 55°
Power input10 to 32V DC12 to 24V DC
Operating temperature-20°C to 50°C-20°C to 70°C
Environmental ratingIP50IP50
Size (W x H x D)235 x 155 x 36.5mm235 x 155 x 36.5mm
Weight (monitor only)396g862g
Warranty2 years2 years
SupplyImported to orderImported to order
Warranty

2 year manufacturer's warranty on the monitor.

Read full warranty guide ›

Manuals
Shipping & Returns

Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.

30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.

Read full policy ›

FAQs

Common questions.

How many cameras can I run?
Up to four on either model. Single View shows one camera at a time; Quad View shows one, two or four at once.
Should I choose Single View or Quad View?
Quad View if the operator needs to watch more than one camera at the same time, such as both gun carriages. Single View if one camera at a time is enough, with the trigger wires switching views automatically.
How is it powered?
It comes with a 12V plug-in power lead. A hardwire adapter is available if you want it wired into the truck.
Which cameras does it work with?
The AgCam AHD cameras plug straight in. It also takes other AHD and CVBS cameras in NTSC or PAL.
Is it in stock?
These are imported from the USA to order and air freighted. Chat with us for the current lead time.
