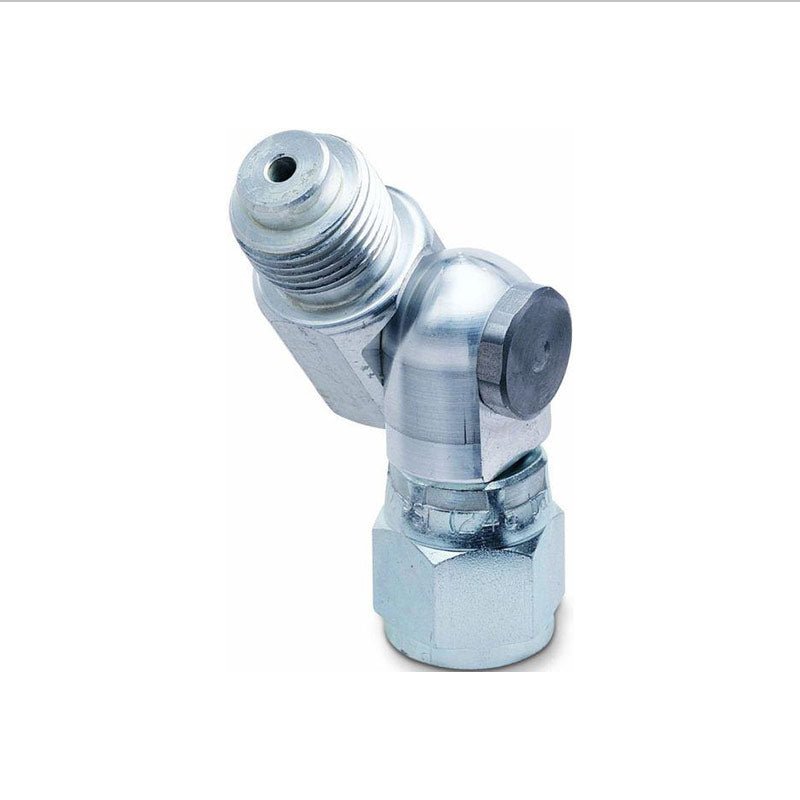

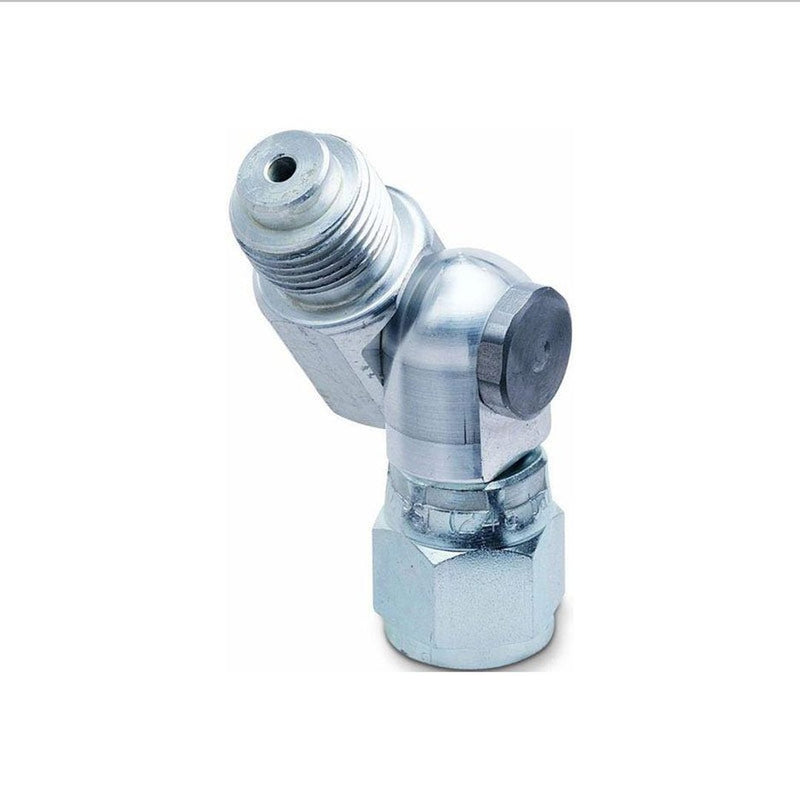

GRACO EasyTurn 180 Degree Directional Spray Nozzle
SKU 235486
Buy 4, Get 1 Free
$223.00
Tax included. Shipping calculated at checkout.
Quantity
In Stock
Pickup available at GO Industrial
- Same-day dispatch. National shipping.
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Product details
Built for the work it does.
Attach this Graco EasyTurn 180 Degree Spray Nozzle to a Graco extension and conveniently spray at a variety of angles.
Features
Features
Pole Guns
- are available in 3’ and 6’ configurations
- provide better spray control and less fatigue.
- Balanced design; no excessive weight at the end of pole
Heavy-duty extensions
- ideal for high-pressure spraying or pressure roller applications.
- Use with Contractor In-Line Valve and the CleanShot Shut-Off Valve to create different
- length pole guns
- Smaller diameter tube is lightweight and can be used for interior pressure rolling
- Ability to attach directly to an airless spray gun – order 45? adapter 224399 for increased comfort while rolling
Airless Tip Extensions
- can be attached directly to an airless gun making them ideal for spraying ceilings, overhangs and decks.
CleanShot Shut-Off Valve
- Unique needle valve shuts fluid off at the tip for a clean pattern
- no spitting 180? tip swivel provides versatility when spraying walls and ceilings
- Pressure-actuated – operates at a minimum of 700 psi (4.8 MPa, 48 bar)
- can be attached directly to any extension and provides a clean fluid shutoff at the tip – no spitting.
Contractor In-Line Valve
- Can be used with other extended reach tools such as Heavy-Duty Extensions and Telescoping Extensions for Pressure Rolling
- Provides a straight connection to extensions for the most optimal rolling position
- In-handle paint filter and built-in swivel connection for top spraying performance
- Ability to rotate 180? allows spraying in any position
Specifications
| MAXIMUM WORKING PRESSURE (BAR) | 248 |
|---|---|
| MAXIMUM WORKING PRESSURE (KPA) | 24800 |
| MAXIMUM WORKING PRESSURE (PSI) | 3600 |
| OUTLET THREAD TYPE | UNC |
| OVERALL HEIGHT (CM) | 4.445 |
| OVERALL HEIGHT (IN) | 1.75 |
| OVERALL HEIGHT (MM) | 44.45 |
| OVERALL LENGTH (CM) | 2.54 |
| OVERALL LENGTH (IN) | 1 |
| OVERALL LENGTH (MM) | 25.4 |
| TYPE | Adapter |
| MAXIMUM WORKING PRESSURE (MPA) | 24.8 |
| INLET SIZE (MM) | 22.225 |
| INLET SIZE (CM) | 2.2225 |
| INLET SIZE (IN) | 7/8-14 |
| OUTLET SIZE (IN) | 7/8-14 |
| OUTLET SIZE (MM) | 22.225 |
| OUTLET SIZE (CM) | 2.2225 |
| MODEL | Graco |
