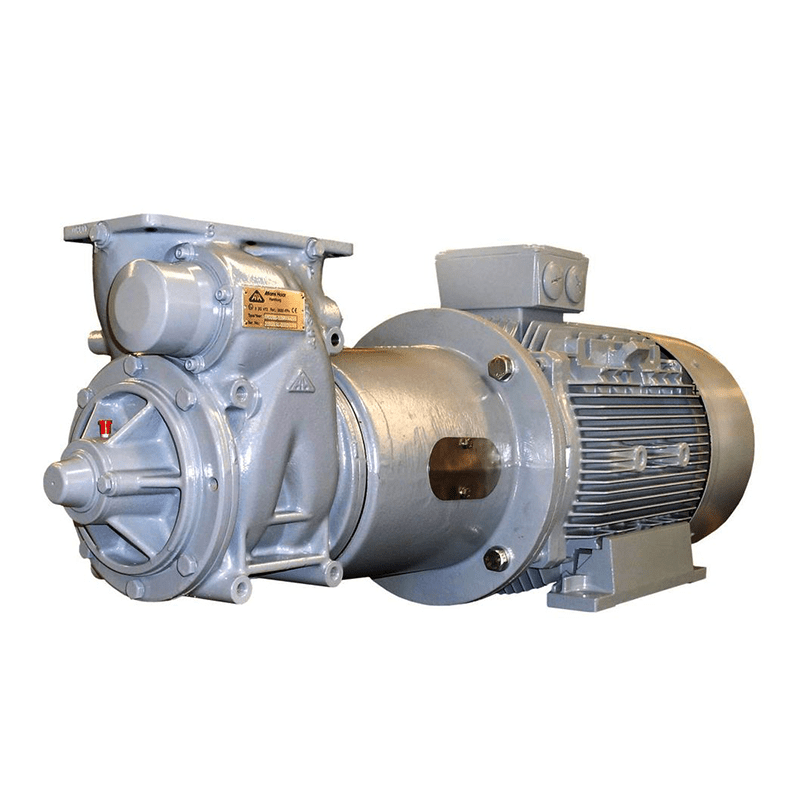

ALFONS HAAR Sliding Vane Pump

SKU: FPO

ALFONS HAAR Sliding Vane Pump

Inclusive of GST. Shipping calculated at checkout.

Other payment options

View full details
ALFONS HAAR Sliding Vane Pump - GO Industrial - FPO

ALFONS HAAR Sliding Vane Pump

Details

Talk to us today about your fuel pumping application. Once you try a Haar pump you'll agree we pump Haar-der!

Features

  • Specifically designed for mobile applications: Slim profile and 3 sided mount bosses offer flexible mounting options.
  • Innovative pneumatic bypass provides complete operator control of the system and provides pressure "on-demand"
  • Haar pumps rotate at up to 1700RPM, suiting modern engines which prefer a higher idle rate
  • Auto PTO shutoff if temperature becomes elevated during standby idling;
  • 12 vanes provides great suction capability and can provide effective "blow-down" of delivery hoses at the end of the delivery to empty the hoses (blows up to 0.8bar of air)

    • Alfons Haar Sliding Vane Pump

    Overview

    Alfons Haar self priming sliding vane pumps, from GO Industrial, are significantly smaller than most competitors at equivalent flow rates, almost half the size, half the weight and faster than other pumps currently on the market.

    With a choice of bare shaft (for electric or diesel driven motors), hydraulically driven or direct mount versions, Alfons Haar have possibly the widest range of vane pumps available for fuel transfer, in the market today.

    Stocked Pump Kits

    Assembly Part #

    DP Max

    (bar)

    		 RPM

    Flow Rate

    (LPM)
    FPCC50-153 3kW 8 pole motor A2BCA3.0X4158 3.5 715 109
    FPCC50-153 1.1kW 6 pole motor A2BAA1.1X4156 3.5 940 143
    FPCC50-213 4.0kW 4 pole motor C2BBA4.0X4154 4.5 1463 311
    FPCC50-213 4.0kW 6 pole motor C2BCA4.0X4156 4.5 975 208
    FPO65-407 4.0kW 6 pole motor D2HDA4.0X4156 3.5 975 397
    FPO65-407 5.5kW 6 pole motor D2KDA5.5X4156 6.5 975 397
    FPO65-600 5.5kW 6 pole motor D2HDA5.5X4156 3.5 975 585
    FPO65-600 7.5kW 6 pole motor D2KFA7.5X4156 6.5 975 585
    FPO65-600 7.5kW 4 pole motor D2HDA7.5X4154 3.5 1463 877
    FPO65-600 11kW 4 pole motor D2KFA11X4154 6.5 1463 877
    FPO80-900 7.5kW 6 pole motor E2HGA7.5X4156 3.5 975 878
    FPO80-900 11kW 6 pole motor E2KGA11X4156 6.5 975 878
    FPO100-975 7.5kW 6 pole motor F2HHA7.5X4156 3.5 975 951
    FPO100-975 11kW 6 pole motor F2GHA11X4156 6 975 951
    FPO100-1308 7.5kW 8 pole motor F2HHA7.5X4158 3.5 731 956
    FPO100-1308 15kW 8 pole motor F2GLA15X4158 6 731 956
    FPO100-1308 15kW 6 pole motor F2HKA15X4156 3.5 975 1275
    FPO100-1308 18.5kW 6 pole motor F2GLA18.5X4156 6 975 1275
    FPO100-1308 11kW 6 pole motor F2HHA11X4156 3.5 975 1275



      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Shipping & Returns

      Our network of warehouses Australia-wide enables us to
      deliver anywhere in Australia except to PO Boxes. We aim to ship your order within 1-3 days upon receipt of payment, as long as the item is readily available.

      All returns must be pre-approved to ensure replacement and / or refund.

      Warranty

      Read our complete warranty terms & conditions here.

      Warranty

      Read our complete warranty terms & conditions here.

      Secure Payment

      All our online payment methods are secured.

      Secure Payment

      All our online payment methods are secured.

      • GO Data Sheet Alfons Haar Pumps
      • GO Data Sheet Alfons Haar FPO65
      • GO Data Sheet Alfons Haar FPO80
      • GO Data Sheet Alfons Haar FPO100
      • GO Data Sheet Alfons Haar FPQ150
      • GO Manual Alfons Haar FPCC50
      • GO Manual Alfons Haar FPO65
      • GO Manual Alfons Haar FPO80
      • GO Manual Alfons Haar FPO100

      Specifications

    • 415Volt/3/50Hz
    • Class ‰ÛÏF‰۝ insulation with B temperature rise
    • TEFC - IP55 -åÊTop Mounted Terminal Box
    • Ex e ‰ÛÒ IP55 - Side Mounted Terminal Box
    • Ex d ‰ÛÒ IP66 -åÊTop Mounted Terminal Box
    • Cast iron construction
    • Meps 2 compliance

        • Features

      • Specifically designed for mobile applications: Slim profile and 3 sided mount bosses offer flexible mounting options.
      • Innovative pneumatic bypass provides complete operator control of the system and provides pressure "on-demand"
      • Haar pumps rotate at up to 1700RPM, suiting modern engines which prefer a higher idle rate
      • Auto PTO shutoff if temperature becomes elevated during standby idling;
      • 12 vanes provides great suction capability and can provide effective "blow-down" of delivery hoses at the end of the delivery to empty the hoses (blows up to 0.8bar of air)
