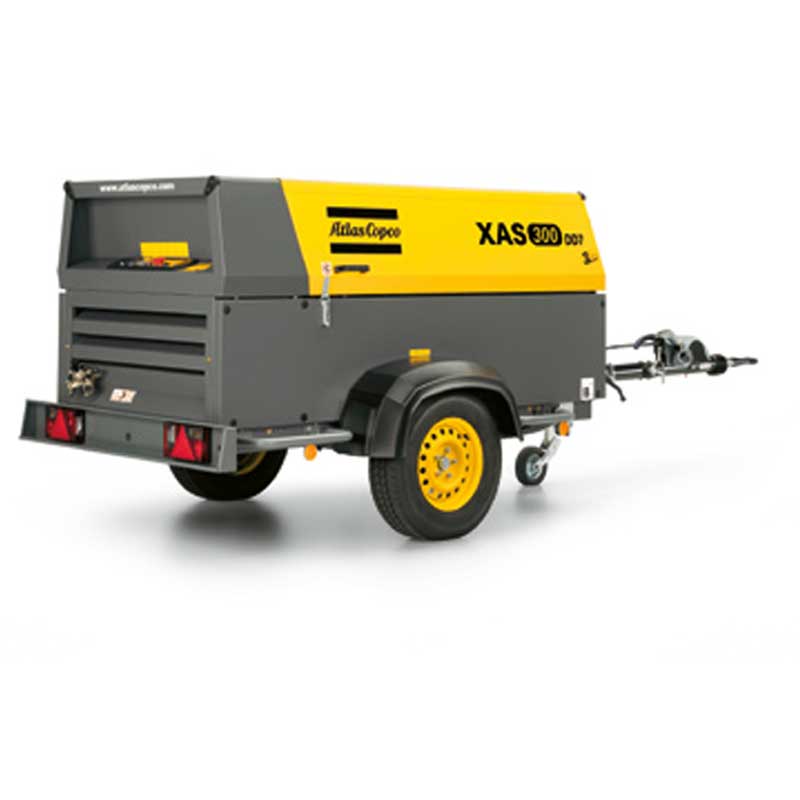

ATLAS COPCO XAS 300 DD7 Air Compressor Portable 269CFM
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Built for the work it does.
Compact, Versatile and Easy to use.
The XAS 300 DD7 and XAHS 250 DD7 have been designed to offer true versatility through compact dimensions and simple to use controls. Providing exceptional reliability and efficiency, these units are designed to operate in a wide range of applications in the harshest of work environments.
Whether being used for running pneumatic breakers, general construction work, sandblasting or for rental are all within the capability of these units. A wide choice of options are available which to build these units specific from the simplest to most complex specialised application.
Despite the overall compactness these compressors still provide exceptional access to all the service and maintenance points. The compressor is driven by either a COM 2 (C2) or the latest COM 3 (C3) compliant diesel engine ensuring low operational costs and high resale value.
Above all Atlas Copco compressors are build for reliability, easily maintained, providing many years of trouble free performance.
Features
Features
Specifications
Performance
|
Normal effective working pressure |
bar |
7 |
|
Normal Effective working pressure |
psig |
102 |
|
Actual free air delivery |
cfm |
269 |
| Max. sound pressure level | dB(A) | 99 |
| Max. ambient temperature | degrees celsius | 50 |
Engine
|
Make |
Deutz |
|
Type |
TD2011 |
|
Number of cylinders |
4 |
|
Output at rated speed |
52kW |
| Engine Speed (nominal) | 2400 rpm |
| Engine speed (unloaded) | 1800 rpm |
| Capacity oil system | 11L |
| Fuel Tank | 117L |
Dimensions
| Length (including - fixed tow bar) | 3810 mm |
| Width | 1701 mm |
| Height | 1498 mm |
| Weight | 1471 kgs |
Data Sheet
