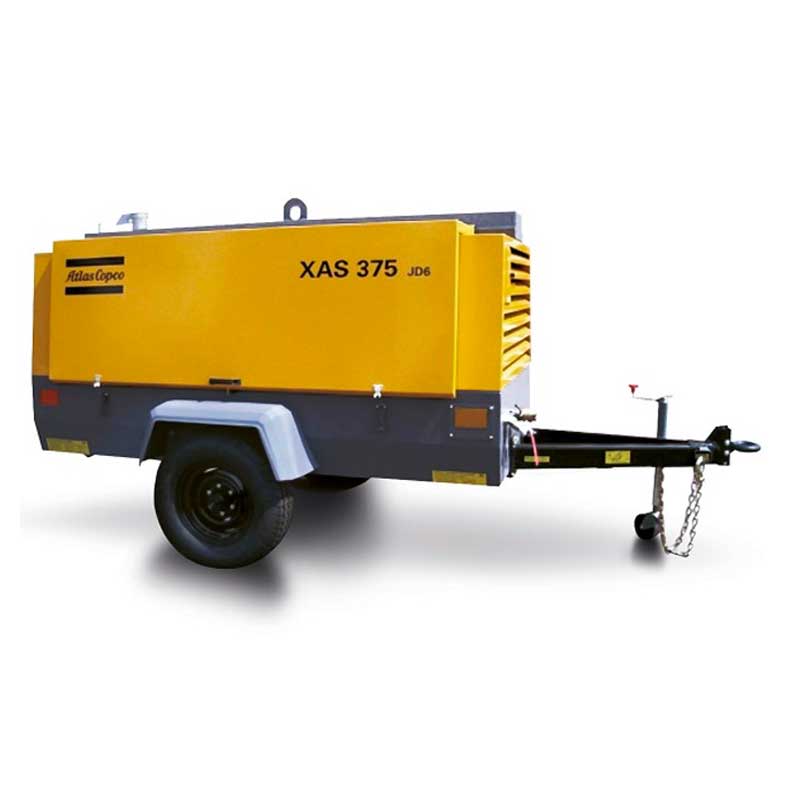

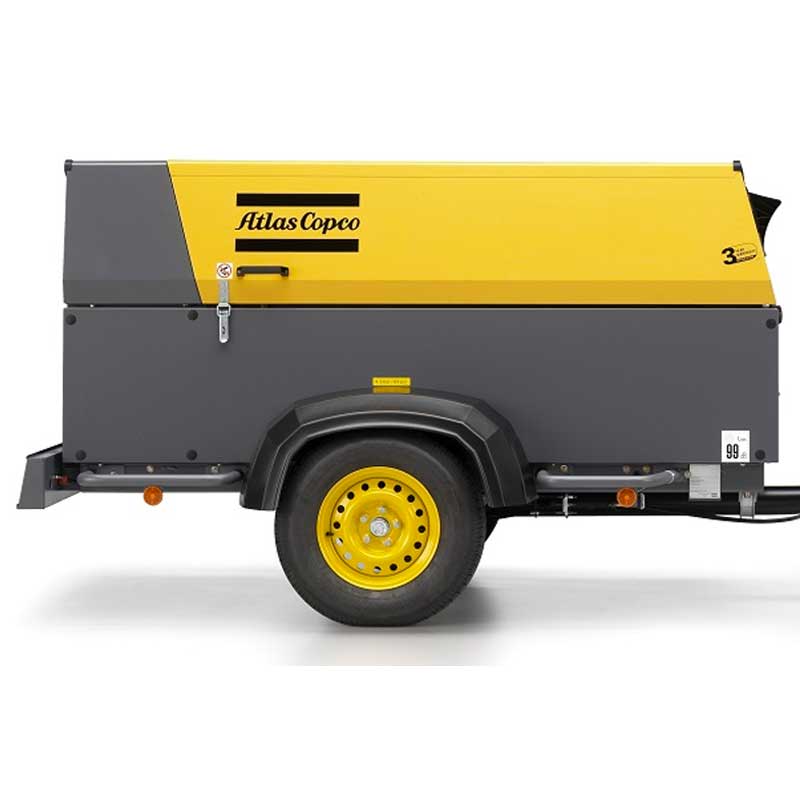

The Atlas Copco XAS 375 DD6 is a heavy duty portable, towable air compressor delivering 392 CFM of free air at 102 psi (7 bar) normal effective working pressure. It is part of the XA(T,H,V)S 340-375 DD6 range built for the harshest work environments, such as renovation and sandblasting, quarrying, installing fibre optic cables, and powering pneumatic tools like rock drills and hammers, in high altitudes and extreme temperatures.
The highly efficient screw element is paired with a COM 2 or COM 3 compliant Deutz diesel engine for low operating costs and high resale value, and a wide choice of options is available. The units are designed and manufactured to ISO 9001 and ISO 14001 standards.
Features
Ready To Operate: Ready to operate with a full range of options.
All Weather: Suitable for use in all weather conditions.
Compact: Small overall dimensions and light weight.
Long Service: Extended service and maintenance intervals.
Engine Options: COM 2 or COM 3 compliant engines available.
Cosmos Monitoring: Cosmos remote monitoring capability.
Included accessories
Specifications
| Working Pressure | 7 bar (102 psi) |
|---|---|
| Free Air Delivery | 392 cfm |
| Max. Sound Pressure Level | 99 dB(A) |
| Max. Ambient Temperature | 50 degrees C |
| Engine Make | Deutz |
| Engine Type | TCD 2012 |
| Number Of Cylinders | 4 |
| Output At Rated Speed | 82 kW |
| Engine Speed (nominal) | 2300 rpm |
| Engine Speed (unloaded) | 1700 rpm |
| Oil System Capacity | 22 L |
| Fuel Tank | 174 L |
| Dimensions (L x W x H) | 4356mm x 1701mm x 1600mm |
| Weight | 1800 kgs |
