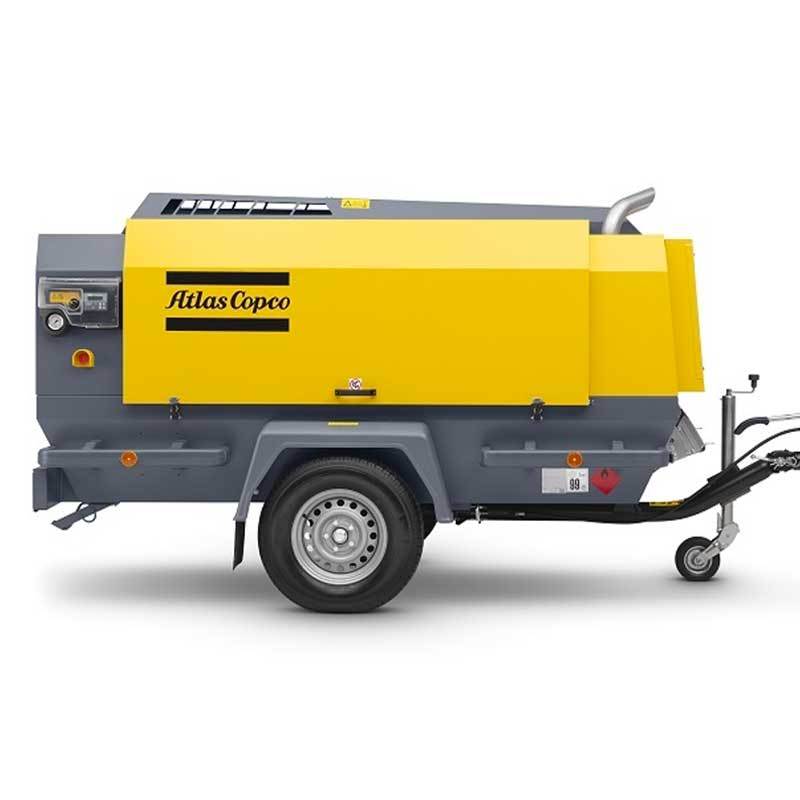

ATLAS COPCO XAVS 340 Air Compressor Portable 335CFM
Features
Atlas Copco XAVS 340 Air Compressor Portable 335CFM
Overview
Heavy Duty Performer
The XAVS 340 portable air compressor delivers 335CFM free air delivery and 204psi (g) normal effective working pressure.
The XAVS range has been specially designed for heavy duty working environments such as the renovation industry (sandblasting) and quarries. They can assist in installing fibre optic cables, or be combined with combinations of pneumatic tools such as rock drills, hammers, to name a few. High altitudes and extremely high and low ambient temperatures are not a problem. Four pressure variants make these units fit for almost any application.
The XA(T,H,V)S 340-375 DD6 range has been specifically designed to perform in the harshest of work environments, and has the reputation for reliability and efficiency. Whether working on renovation projects such as sandblasting, or powering hand held rock-drills in a quarry, the robust construction of these units can withstand rough treatment and ensure long lifetime and high reliability.
The highly efficient screw element is paired with either a COM 2 (C2) or the latest COM 3 (C3) compliant diesel engine ensuring low operating costs and high resale value. Because compressed air is used in such broad range of applications, a wide choice of options is available to satisfy almost any requirement.
Atlas Copco’s fully implemented Quality Management and Environmental Management systems in the design and manufacturing of these units fulfil the requirements of ISO 9001 and ISO 14001. Products and services committed to your superior productivity through interaction and innovation.
Specifications
Performance
Normal effective working pressure |
bar |
14 |
Normal Effective working pressure |
psig |
204 |
Actual free air delivery |
cfm |
335 |
Max. sound pressure level | dB(A) | 99 |
Max. ambient temperature | degrees celsius | 46 |
Engine
Make |
Deutz |
Type |
TCD 2013 |
Number of cylinders |
4 |
Output at rated speed |
104 kW |
Engine Speed (nominal) | 2100rpm |
Engine speed (unloaded) | 1700 rpm |
Capacity oil system | 11L |
Fuel Tank | 174L |
Dimensions
Length (including - fixed tow bar) | 4356mm |
Width | 1701 mm |
Height | 1600 mm |
Weight | 1883 kgs |
- Ready to operate with a full range of options
- Use in all weather conditions
- Small overall dimensions and light weight
- Extended service and maintenance intervals
- COM 2 or COM 3 compliant engines available
- Cosmos
