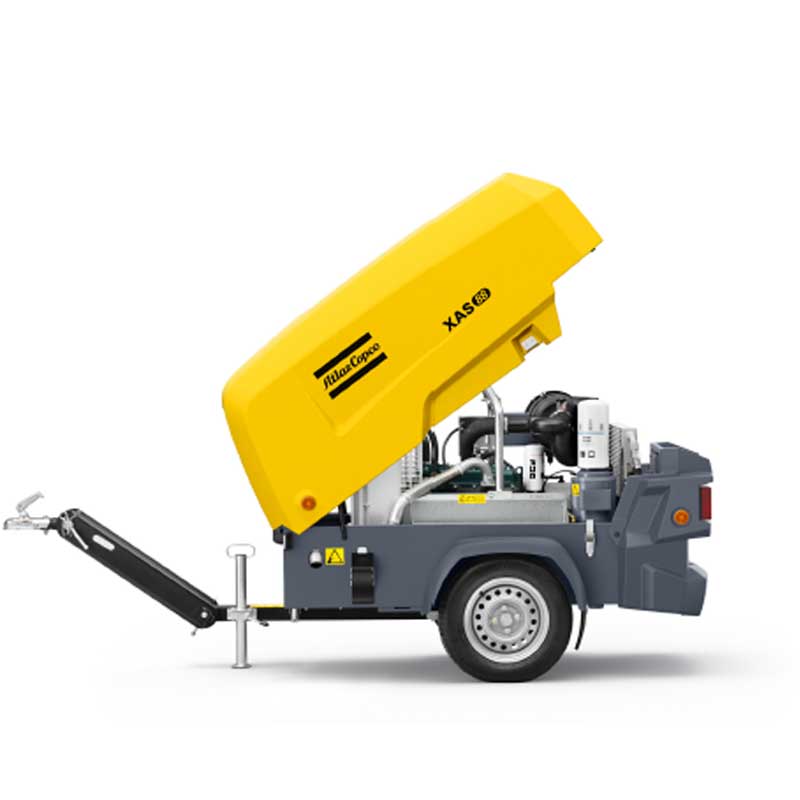

ATLAS COPCO XATS 68 KD Air Compressor 135cfm 150psi Portable Towable
SKU: XATS68KDATLAS COPCO XATS 68 KD Air Compressor 135cfm 150psi Portable Towable
Enquire For Price
Other payment options
Delivery & Shipping
ATLAS COPCO XATS 68 KD Air Compressor 135cfm 150psi Portable Towable
Enquire For Price
Features
- Starter motor protection system
- Three layer anti corrosion (C3) paint system
- Anti air lock system for guaranteed starting
- Compressor oil service once in 2 years
- 11 years development of legendary Hard Hat®Canopy
Standard Features Summary
- Reliable and high performance Kubota engine
- Legendary Had-hat canopy
- Starter motor protection system
- Three layer anti-corrosion (c3) paint system
- Anti air lock system for guaranteed starting
- Spillage free frame
- Battery cut off switch
- Encased wire routings for extra protection
Atlas Copco XATS 68 KD Air Compressor 135cfm 150psi Portable Towable
Overview
The 8 series is the latest product launched in-line with the Forward-Thinking philosophy of the Portable Energy division
What do you tow?
The new Atlas Copco 8 Series compressor range, from GO Industrial, is the result of over a decade of continuous development. For the first time, it’s possible to transport behind a normal passenger car, with no special driving license, a compressor that can produce up to 5 m3 /min of air, with a full size fuel tank, after-cooler and generator all incorporated into a compact and lightweight package.
This is all made possible by the latest development in our pioneering air element design, meaning we can produce a compressor up to 150kg lighter than comparable models. However, we understand that this means nothing without efficiency. Efficiency can mean many things, such as: reduced service time, fuel consumption or increased utilisation.
The 8 Series ticks all the boxes when it comes to delivering outstanding performance in all of these categories. Lastly, depending on your application you might ask about robustness, durability, ruggedness or toughness – we have one simple word for all of the above – The HardHat®.
This legendary canopy was born in 2005 and the 8 Series features the latest, toughest design. The amazing new 8 Series from Atlas Copco, it’s all about the numbers, it’s all about changing the game and we have one clear challenge to you – what do you tow?
- Working Pressure: 150psi (g)
- Free Air Delivery: 135CFM
- Noise Sound Pressure Level (Lp): 70dB (A)
- Engine: Diesel Driven - Kubota V 1505 T
- Fuel Tank Capacity: 60 L
- Starter motor protection system
- Three layer anti corrosion (C3) paint system
- Anti air lock system for guaranteed starting
- Compressor oil service once in 2 years
- 11 years development of legendary Hard Hat®Canopy
- Reliable and high performance Kubota engine
- Legendary Had-hat canopy
- Starter motor protection system
- Three layer anti-corrosion (c3) paint system
- Anti air lock system for guaranteed starting
- Spillage free frame
- Battery cut off switch
- Encased wire routings for extra protection
Specifications
Performance
| Model | XATS 68 Kd | |
| Working Pressure | bar(g) | 10 |
| Psi(g) | 150 | |
| Free Air Delivery | CFM | 135 |
| m3/min | 3,5 | |
| Output power | kVA | - |
| Noise sound pressure (Lp) | dB (A) | 70 |
| Noise sound power (Lw) | dB (A) | 98 |
| Max. ambient temperature at sea level | degrees celsius (c) | 50 |
| Min. Starting temperature |
|
-10 |
| Min. Starting temperature (cold start aid) |
|
-20 |
Engine
|
Brand |
Kubota |
|
|
Model |
V 1505 T |
|
|
Number of cylinders |
4 |
|
|
Power Output |
kW |
33 |
|
Full Load RPM |
rpm |
3000 |
|
Unload RPM |
rpm |
1850 |
| Engine Oil Capacity | l | 5,5 |
| Compressor oil capacity | l | 7,7 |
| Fuel tank capacity | l | 60 |
Dimensions and Weight:
|
Length, towbar down |
mm |
1940 |
|
Width |
mm |
1180 |
|
Height |
mm |
1150 |
|
Weight |
kg |
650 |
Dimensions and Weight : Trolley
|
Length |
mm |
2290 |
|
Width |
mm |
1350 |
|
Height |
mm |
1400 |
|
Weight |
kg |
<750 |
Features
Standard Features Summary
