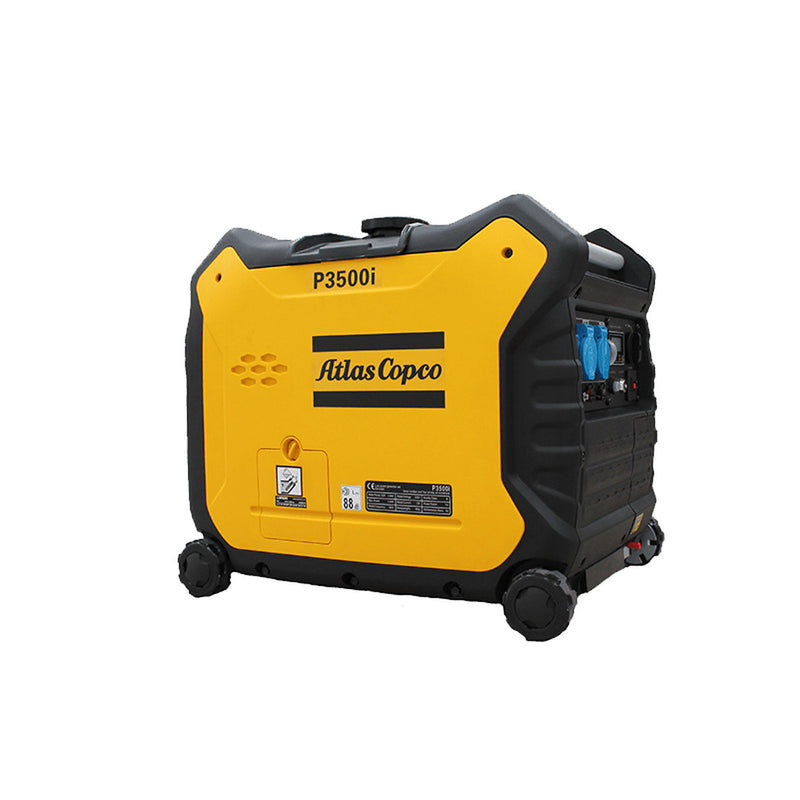

Atlas Copco Generator P3500i 3500W 3.3 kVA Petrol

SKU: P3500i

$2,145

Atlas Copco Generator P3500i 3500W 3.3 kVA Petrol

 DATA SHEET
 PRODUCT VIDEO
 NEVER MISS A MATCH



When it comes to fuel efficiency, compactness and noise attenuation, Atlas Copco iP generators are the future. The variable speed smart control, together with paralleling capability, delivers efficient power with the lowest fuel consumption, adapting engine speed to the load conditions.

Key Features

  • Recoil start
  • Large fuel tank
  • Engine oil guard
  • Thermal protection
  • Soundproof canopy CE noise compliant
  • Sockets
  • Electric key start (12V)
  • Automatic Voltage Regulation (AVR)
  • Instrumentation, voltmeter, hour meter
  • Circuit breaker
  • Wheels
  • Engine alarms: low oil alert, overload
  • Smart RPM control for fuel efficiency
  • Parallel operation connectors

    Specifications

    Generator data



    P 2000i | P 2000i W

    P 3500i | P 3500i W

    Rated frequency

    Hz

    50 | 60

    50 | 60

    Rated voltage

    V

    230 | 120

    230 | 120

    Nominal power output

    kVA

    1,6

    3,0

    Peak power output

    kVA

    1,8

    3,3

    Power factor cos Phi



    1

    1

    Fuel tank capacity

    l

    4

    10

    Fuel autonomy at nominal power

    h

    5

    6

    Sockets configuration



    1 x SCH | 2 x 3P20A

    2 x SCH | 2 x 3P20A + 1 x TL240

    H: Schuko 2P+G 16A 3P20A: Nema 120 V 20A TL240: Nema 240/120 V Twist Lock



    Engine



     P 2000i | P 2000i W

     P 3500i | P 3500i W

    Model



    AC148F gasoline

    AC170FD gasoline

    Nominal speed

    rpm

    5000

    3600

    Power output

    kWm

    2,4

    4,4

    Displacement

    cm3

    79

    212

    Starter type



    Recoil

    Electric / Recoil



    Alternator



     P 2000i | P 2000i W

     P 3500i | P 3500i W

    Power

    kVA

    2

    3

    Noise level







    Sound pressure level (LpA) at 7m

    dB(A)

    65

    63

    Sound power level (LwA)

    dB(A)

    90

    88

    Weight and dimensions







    Length

    mm

    500

    580

    Width

    mm

    285

    440

    Height

    mm

    455

    510

    Weight

    kg

    21

    45
