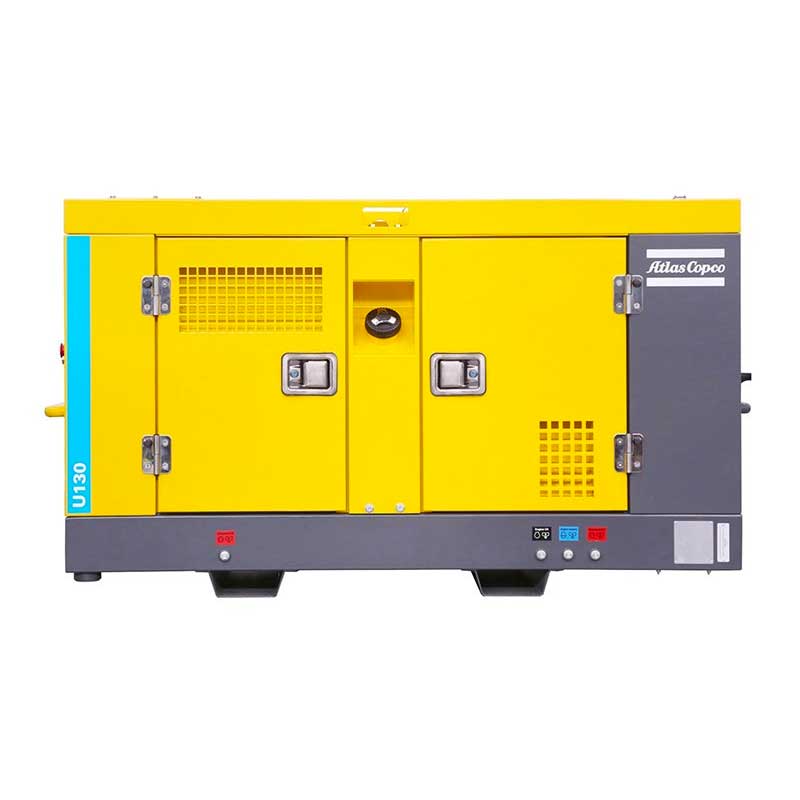

Atlas Copco Utility Series 8 Air Compressor U130
Skip to product information
1 of 1
  • GO Industrial Utility-Range
  • GO Industrial Product-Ref-Sheet-U-130-190-PACE

Technical Data

Performance

Normal effective working pressure

bar(g)

7

Normal Effective working pressure

psig

100

Actual free air delivery

cfm

130

Max. ambient temperature at sea level degrees celsius 50
Min. starting temperature/ cold start kit degrees celsius -10/-20



Engine

Make

Kubota

Type

V1505

Number of cylinders

4

Output at rated speed

26,5 kW

Engine Speed (nominal) 3000 rpm
Engine speed (unloaded) 1600 rpm
Capacity engine oil system 5,5L
Capacity compressor oil 9L
Fuel Tank 62L
Cooling system 8,5L


Dimensions

 Length (including - fixed tow bar) 1870 mm
Width 950 mm
Height 1040 mm
Weight 704 kgs
    • Best in class fuel efficiency
    • A footprint at least 10% smaller than comparable models
    • Anti-air lock starting systems
    • High humidity C3 corrosion protection
    • 1000 hours service interval
    • Integrated lifting slots and top-hook
    • Enough fuel autonomy to run a full shift

    pagination here

Atlas Copco Utility Series 8 Air Compressor U130

SKU: U130

Atlas Copco Utility Series 8 Air Compressor U130

The Basics

The U130 compressor is a new addition to the 8 Series Utility range.

Thanks to its PACE (Pressure Adjust through Cognitive Electronics) system, operators are able to choose from the widest operating pressure range currently available for a truck-mounted air compressor. With the PACE electronic regulation system, operators use a simple-to-use digital controller to adjust the pressure with pinpoint accuracy depending on their application need.

The 8 Series Utility range is light weight, compact package. This range may not have any wheels, but all the integrated features mean we are proud to call this a mobile, easy to move compressor.

All 8 Series compressors are under 750 kg and service can always be completed under one hour. The Utility range offers models with our revolutionary PACE system. PACE enables you to control the pressure and regulate the flow – giving you even more versatility to handle the toughest applications. All models come with a corrosion free C3 rated canopy.

Introducing PACE technology

  • An electronic regulation system programmed via a digital controller.
  • A system that offers the widest operating pressure range within a single compressor. Allowing multiple pressure and flow combinations.
  • A simple to use system with pinpoint accuracy and ensuring safety. Guaranteeing the long-term performance of the compressor.
  • A system that gives you the versatility of three machines in one package.

  • GO Industrial Utility-Range
  • GO Industrial Product-Ref-Sheet-U-130-190-PACE

Technical Data

Performance

Normal effective working pressure

bar(g)

7

Normal Effective working pressure

psig

100

Actual free air delivery

cfm

130

Max. ambient temperature at sea level degrees celsius 50
Min. starting temperature/ cold start kit degrees celsius -10/-20



Engine

Make

Kubota

Type

V1505

Number of cylinders

4

Output at rated speed

26,5 kW

Engine Speed (nominal) 3000 rpm
Engine speed (unloaded) 1600 rpm
Capacity engine oil system 5,5L
Capacity compressor oil 9L
Fuel Tank 62L
Cooling system 8,5L


Dimensions

 Length (including - fixed tow bar) 1870 mm
Width 950 mm
Height 1040 mm
Weight 704 kgs
    • Best in class fuel efficiency
    • A footprint at least 10% smaller than comparable models
    • Anti-air lock starting systems
    • High humidity C3 corrosion protection
    • 1000 hours service interval
    • Integrated lifting slots and top-hook
    • Enough fuel autonomy to run a full shift
