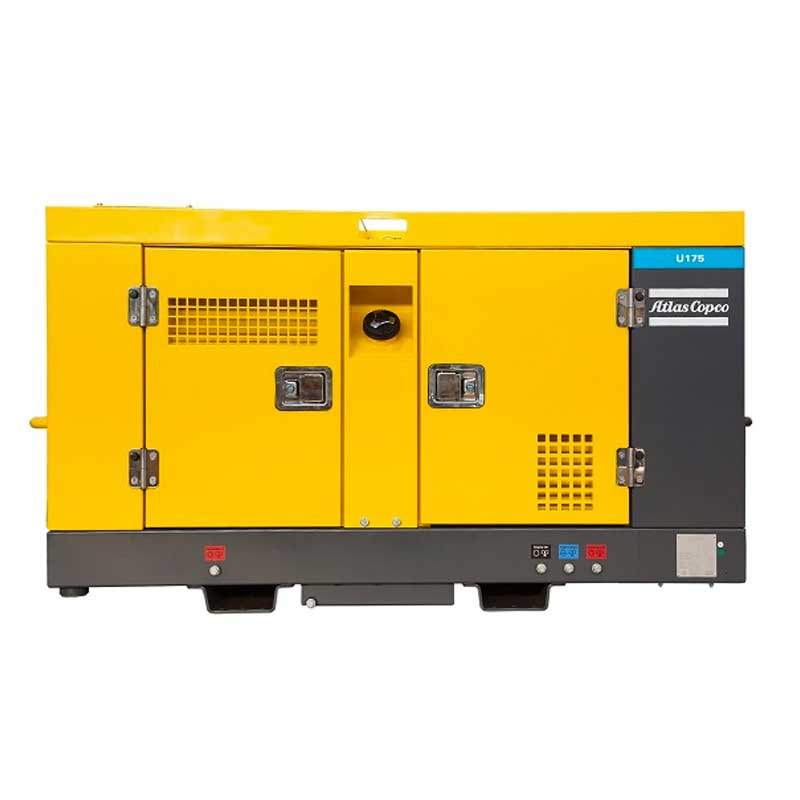

The Atlas Copco U175 is a compact 8 Series Utility air compressor that delivers 175 CFM of free air at 100 psi (7 bar) normal effective working pressure.
Thanks to its PACE (Pressure Adjust through Cognitive Electronics) system, operators use a simple digital controller to set the pressure with pinpoint accuracy to suit the application, giving the widest operating pressure range for a truck-mounted compressor.
The Utility range has no wheels but is still easy to move, thanks to integrated lifting slots and a top-hook. Every 8 Series compressor weighs under 750kg and can be serviced in under an hour, and each unit is finished with a corrosion free C3 rated canopy.
Features
Fuel Efficiency: Engineered for low fuel consumption.
Compact Footprint: A footprint at least 10% smaller than comparable models.
Anti Air Lock: Anti-air lock starting system.
Corrosion Protection: High humidity C3 corrosion protection.
Long Service: 1000 hour service interval.
Lifting Points: Integrated lifting slots and top-hook.
Full Shift Fuel: Enough fuel autonomy to run a full shift.
Included accessories
Specifications
| Working Pressure | 7 bar(g) (100 psi) |
|---|---|
| Free Air Delivery | 175 cfm |
| Max. Ambient Temperature At Sea Level | 50 degrees C |
| Min. Starting Temperature / Cold Start Kit | -10/-20 degrees C |
| Engine Make | Kubota |
| Engine Type | V1505T |
| Number Of Cylinders | 4 |
| Output At Rated Speed | 32,5 kW |
| Engine Speed (nominal) | 3000 rpm |
| Engine Speed (unloaded) | 1600 rpm |
| Engine Oil Capacity | 5,5 L |
| Compressor Oil Capacity | 9 L |
| Fuel Tank | 62 L |
| Cooling System | 8,5 L |
| Dimensions (L x W x H) | 1870mm x 950mm x 1040mm |
| Weight | 704 kgs |
