The Basics

Banlaw Fluid Transfer Flush Face - Evacuation

The Banlaw Flush Face range of couplings, from GO Industrial, are designed to fill and evacuate a wide range of fluids with maximum efficiency.  They contain a superior ‘ball-lock’ latching system for a stronger lock connection, Dry Break design for reduced spills, and are Flush Faced to minimise the particulate contaminants which make it into the fluid path.

Each set of couplings are colour coded to assist the operator in identifying matched fittings, and only same-coloured nozzles and receivers can connect, eliminating fluid cross-contamination.

Sound engineering design focused on the internal fluid path means the Banlaw Flush Face Range of couplings has a higher flow capability, and allows for more efficient service intervals.

The combination of aligned mating surfaces and heavy duty dust caps in Banlaw’s Flush Face range drastically reduces premature component wear.

Each size fitting is unique and colour coded to prevent accidental connection. This stops cross contamination between differing fluid types. It is impossible to connect couplings which are not paired. The Banlaw Flush Face coupling is designed to enable the operator to wipe the coupling faces clean before connecting the transfer hose.

No exposed deep recesses means that only clean oil, grease or other fluid is transferred from the service unit to the machine.  The Flush Face range has a push-to-connect system that makes them simple and easy to use.

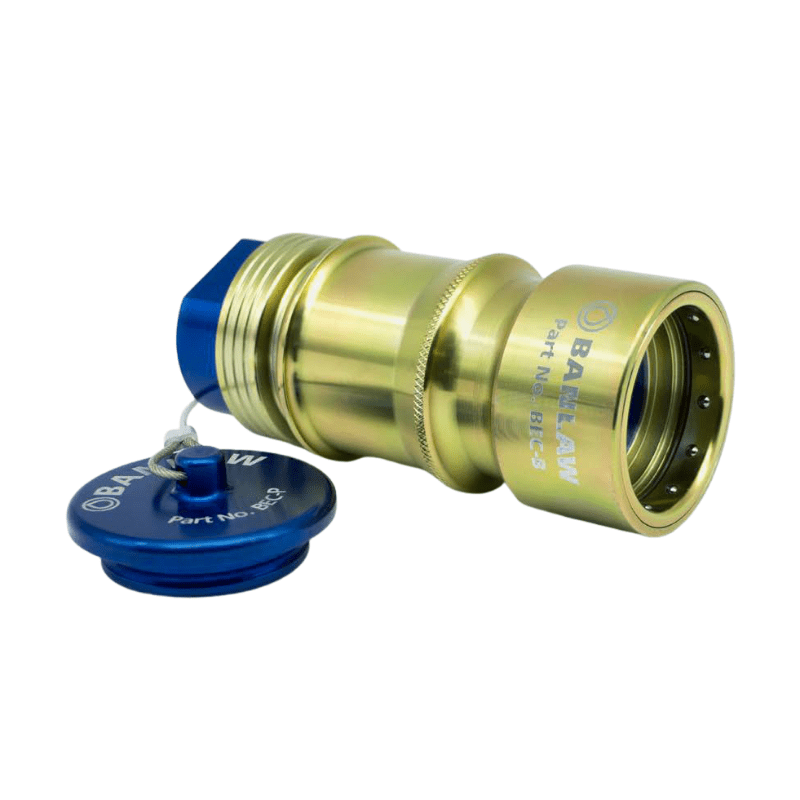

To reduce service times, the Banlaw Flush Face Fluid Transfer range should be combined with the Banlaw Evacuation Coupling (BEC). The Banlaw Evacuation Coupling can connect with all receivers in the Flush Face range, aside from the size 0.

Each nozzle and receiver is supplied with a matching aluminium cap, to reduce wear and contamination.

Data Sheet
GO Data Sheet Banlaw Fluid Transfer Flush Face - Evacuation
