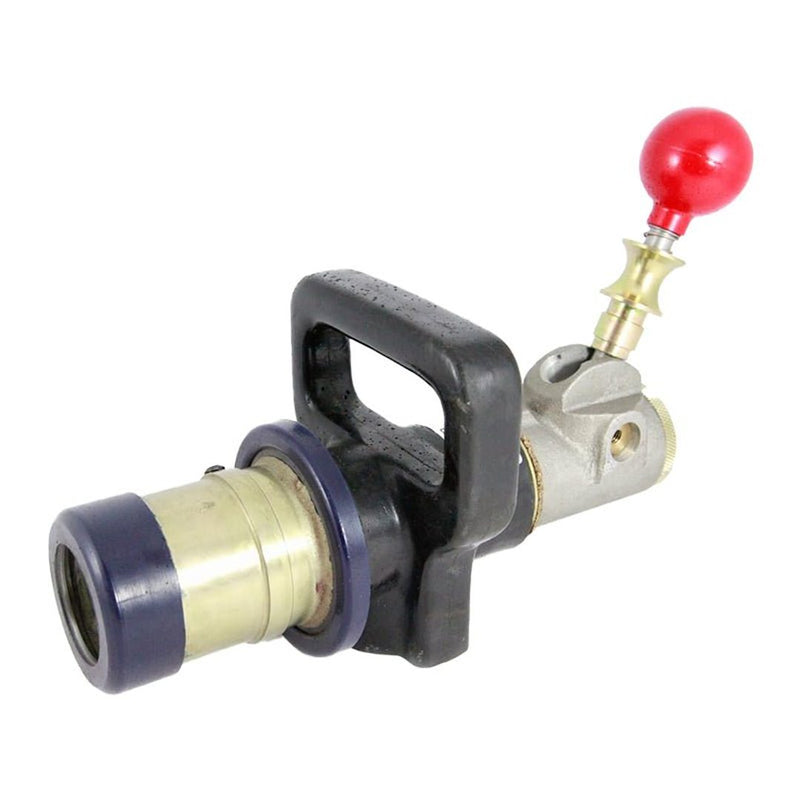

BANLAW AUS45 1.5" BSP F Underground Dry Break Diesel Refuelling Nozzle
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
Bundle the essentials.
Skip the back-and-forth — the consumables and accessories most buyers add to their first order, in one click.
Banlaw AUS45 Underground Dry Break Nozzles are specifically designed for underground refuelling of diesel-powered machines. Manufactured without aluminium for use in underground coal mines, this nozzle offers improved dispensing rates and supports flow rates of up to 300 lpm, and it can be configured on-site with variable shut-off pressure settings.
The AUS45 prevents water, mud and dust from entering fuel tanks, reducing engine failures. It is compatible only with the Banlaw AUS46K Receiver. Banlaw nozzles offer high reliable flow rates and a proven safety record, with a dependable ball locking mechanism so nozzles cannot fly off and a Dry Break design that minimises leaks and spills. Predominantly of all-metal construction, they have a dramatically extended serviceable life.
Features
- Built For Underground Coal: Manufactured without aluminium so it meets the material restrictions that apply in underground coal mines.
- Keeps Contamination Out: The dry break coupling stops water, mud and dust reaching the fuel tank, which is where a lot of engine failures start.
- Configurable Shut-Off: Shut-off pressure is variable and can be set on site to suit the machine and the fill rate.
- 300 L/min Flow: Improved dispensing rates over a conventional underground nozzle.

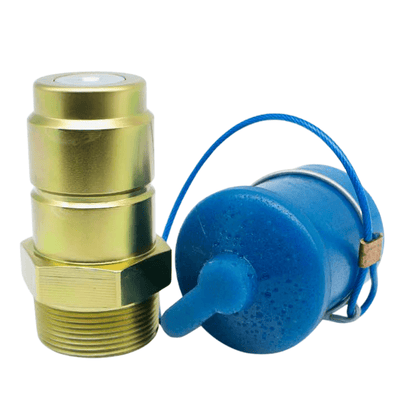

- AUS46K Receivers Only: Couples only with the Banlaw AUS46K receiver, so confirm the receiver before ordering.
Included accessories
Specifications
| MAXIMUM FLOW RATE | 300 L/MIN | 79 GPM |
|---|---|
| INLET | 1 1/2 IN BSP FEMALE |
| FLUID | Diesel |
| COUPLING TYPE | Dry break |
| SHUT-OFF | Automatic, with variable shut-off pressure configurable on site |
| RECEIVER COMPATIBILITY | Banlaw AUS46K receiver only |
| CONSTRUCTION | Manufactured without aluminium for use in underground coal mines |
| CONTAMINATION CONTROL | Prevents water, mud and dust entering the fuel tank |

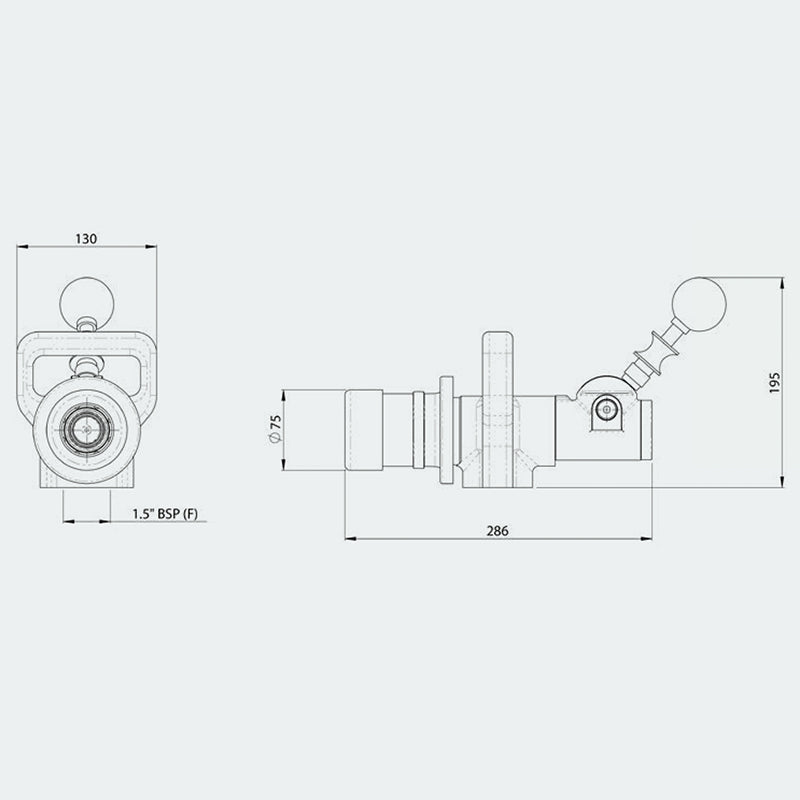

| DIMENSIONS | 286 MM L x 130 MM W x 195 MM H |
Shipping & Returns
Same-day dispatch from one of our national warehouses on in-stock orders placed before 2pm AEST.
30-day returns on unopened, stocked items — customer pays return freight. Non-stocked / special-order items are subject to a 50% restocking fee.
Need help speccing your kit?
Talk to a real specialist on our team. We'll match the right unit to your daily volume and the materials you spray most.
