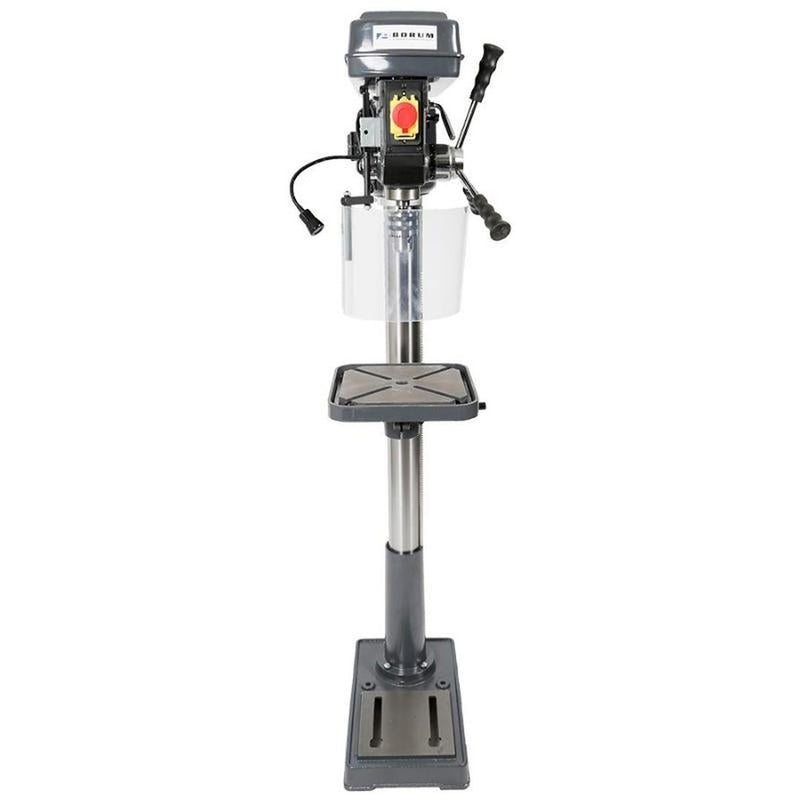

BORUM 1 HP 16 Speed Pedestal Drill Press
- Found a better deal? Message us to price match.
Same-day dispatch
In-stock orders by 2pm AEST
Australia-wide delivery
Direct to your job from Brisbane
Authorised service
In-house warranty + repairs
Trade pricing for all
No trade-only accounts
The Borum 1 HP 16 Speed Pedestal Drill Press is built to the same heavy duty industrial specification that TQB Brands has manufactured since 1984, now with modern features. It delivers precision and power for a professional workshop, with a long-life industrial 1 HP motor fully enclosed in a durable metal hood, double-wide spindle bearings and a precision spindle. Sixteen drilling speeds from 200 to 3,160 rpm and a 20 mm drilling capacity make it well suited to a busy maintenance workshop or small production factory, and rugged enough for light and medium duty production work. The Borum Industrial range is manufactured to exacting standards for commercial transport, mining, earthmoving and railway environments, and is covered by a 12 month trade use warranty.
Features
Worklight: Flexible worklight illuminates the work area.
Safety Guard: Oversize micro-switch activated safety guard.
Work Table: Engineering-style solid rotating work table with diagonal clamping slots.
Ergonomic Handles: Ergonomic handles for comfortable operation.
Belt Drive: Low-noise belt drive with cast iron balanced pulleys for low maintenance and quiet operation.
Emergency Stop: Safety ON-OFF switch with dust cover, positive-action push buttons and a large red self-locking emergency stop hinge cover.
Precision Spindle: Precision spindle bearing for long life and high accuracy.
Table Control: Hand crank and gear rack table control with high load capacity.
Quill Stroke: Long quill stroke with an easy-to-adjust depth stop at the capstan handle.
Rigid Column: Thick-walled, precision-ground column for extra rigidity.
Drive Motor: Powerful long-life commercial motor stays reliable under continuous loads.
Ground Set-Up: Ground set-up areas on the table and base plate.
Spare Parts: Full range of spare parts available in Australia.
Included accessories
Specifications
| Motor | 240V 1HP |
|---|---|
| Number of Speeds | 16 |
| Spindle Speeds | 200-3160rpm |
| Maximum Drilling Capacity | 20mm |
| Spindle Taper | MT2 |
| Chuck | 16mm |
| Maximum Spindle Stroke | 82mm |
| Swing | 430mm |
| Maximum Distance from Spindle to Table | 775mm |
| Maximum Distance from Spindle to Base | 1270mm |
| Diameter of Column | 80mm |
| Diameter of Table | 350mm |
| Size of Base | 460x270mm |
| Overall Height | 1625mm |
| Weight | 85kg |
| Carton | 1390 x 530 x 265mm |
